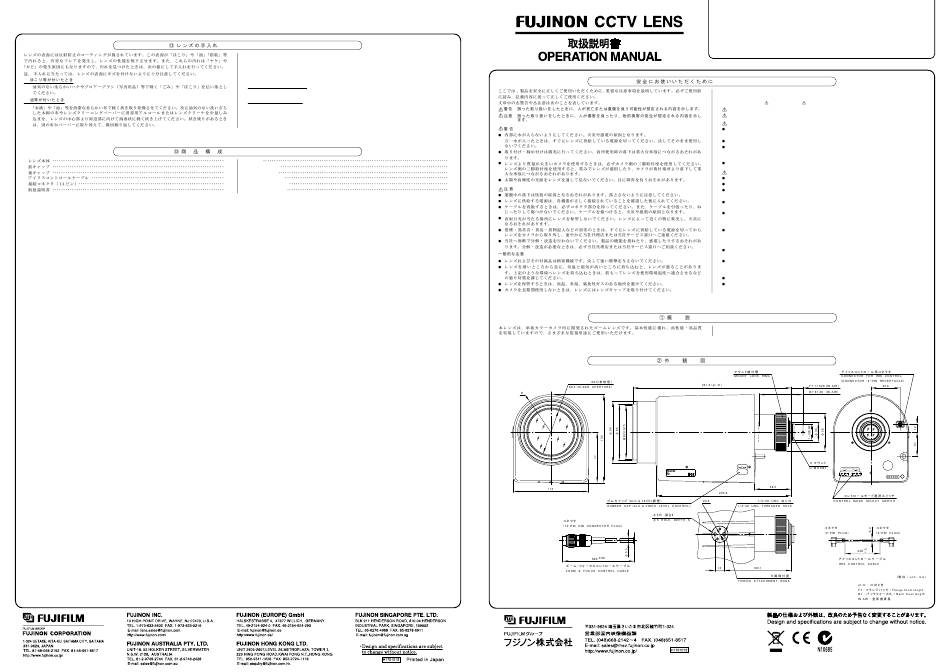

FujiFilm Fujinon C22x17B-Y41 Operation Manual

(1)
(2)
1.
2.
3.
4.
5.
6.

/ MAINTENANCE OF THE LENS

A special coating has been applied on the lens surface in order to prevent light reflection. Dirty lens surface
due to "dust," "oil" or "finger print" causes harmful flare which result in degenerating lens property. Dirt
may cause mold or scorches on the lens.
Whenever the lens is found to be dirty, clean the lens as instructed below.
Note: Be careful not to damage the lens surface in cleaning.
(1) To remove dust on the lens
Brush "trash" or "dust" off with an oil-free soft brush or a blower-brush (for photography use).
(2) To remove oil on the lens
Wipe water drops or oil off the lens with a clean soft cloth and dry the lens surface. Then prepare oil-free
and washed-out cotton cloth or lens cleaning paper with alcohol for disinfection or lens cleaning liquid.
Wipe the rest of the dirty off gently with the cloth or paper by moving spirally from the lens center
towards its rim. Repeat wiping with another wet cloth or paper until the lens becomes completely clean.

/ PRODUCT COMPONENTS

1 1. Lens
1 2. Front lens cap
1 3. Rear lens cap
1 4. Iris control cable
1 5. Connector (14-pin)
1 6. Operation manual
1
1
1
1
1
1
C22x17B-Y41
1:2.3/17-374mm 1" C-Mount

/ FOR YOUR SAFETY USE

This content explains important notices for all the users to use this product safely. Read the content carefully
before using, and follow the instructions.
The following signs of WARNING and CAUTION show:
WARNING Indicates the possibility of causing death or serious injury when misused.
CAUTION Indicates the possibility of causing injury or substantial damage when misused.
WARNING
Do not moisten inside of the appliances. It may cause fire or electric shock. If the incident occurs, shut off
the power supplied to the lens immediately.
Be sure to attach all the parts securely. Dropping any parts from a height may cause severe accidents.
For use with a camera that weighs more than the lens, be sure to use the tripod attachment base on the
camera side. Use of the tripod attachment base for the lens may cause the lens to be damaged by too much
load or cause the camera to drop to a severe accident.
Do not look at any sorts of strong illuminant such as the sun through the lens. Eyes could be harmed.
CAUTION
Take care when carrying the lens. Dropping the lens while carrying may cause injury.
Before supplying the power to the lens, make sure all the parts are connected correctly.
In order to install or release the lens cable, be sure to hold the joint part. Do not pull it off nor twist it, or it
may get damaged. It may cause fire or electric shock.
Do not leave or store the lens under direct sunshine. The lens may condense light on a near-by object, and
cause a fire.
If any sorts of incidents such as unusual smoke, noise, smell or obstacles are found, shut off the power
supplied to the lens and pull out the lens cable immediately. Please notify our shop or service
department as soon as possible.
Do not remodel the instrument without permission: it may impair the functions of product or cause
electric shock. Please contact our sales agent or Fujinon service department if remodeling is necessary.

NOTICES

Lens and its accessories are extremely precise instrument, then be sure not to apply the strong impacts to
them.
There may be a case that the glasses of the lens mist when the lens is carried from a cool place to a place of
high temperature and high humidity. To avoid a mist on the glasses, before moving the lens, let the lens
adjust to the ambient temperature of the place where the lens will be used.
For safe storage of the lens, avoid hot or humid place, and avoid places containing corrosive gas or salt.
Put the cap on the lens while the camera is not used for a long time.

/ GENERAL DESCRIPTION

This is a zoom lens that has been developed for single CCD color cameras. This lens with excellent basic
performances is of high quality and performance, and is used for many kinds of surveillance applications.

/ OUTLINE DRAWING

DF
202B9582802
LH557B-Y41 1610
