Summary of Contents for Keysight 8497K

  • Page 1 T h e t e s t & me a s u r e me n t e q u i p me n t y o u n e e d a t t h e p r i c e y o u w a n t . A l l t e s t I n s t r u me n t s , I n c .
  • Page 2 Keysight 8497K Attenuator Operating and Service Manual...
  • Page 3 Conformity. understood and met. where in the EULA. Keysight shall be under no obligation to update, revise or otherwise modify the Software. With WARNING respect to any technical data as defined by FAR 2.101, pursuant to FAR...
  • Page 4: Regulatory Markings

    The CE mark is a registered trademark of the European Community. This CE mark shows that the product complies with all the relevant European Legal Directives. Keysight 8497K Operating and Service Manual...
  • Page 5: Waste Electrical And Electronic Equipment (Weee) Directive

    To return this unwanted instrument, contact your nearest Keysight Service Center, or visit http://about.keysight.com/en/companyinfo/environment/takeback.shtml for more information. Sales and Technical Support To contact Keysight for sales and technical support, refer to the support links on the following Keysight websites: – www.keysight.com/find/adapters (product-specific information and support, software and documentation updates) –...
  • Page 6: Table Of Contents

    ........26 Keysight 8497K Operating and Service Manual...
  • Page 7 ........30 Keysight 8497K Operating and Service Manual...
  • Page 8: List Of Figures

    ..22 Figure 3-1 Operator’s check setup ......28 Keysight 8497K Operating and Service Manual...
  • Page 9 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight 8497K Operating and Service Manual...
  • Page 10: List Of Tables

    ......27 Table 3-2 Attenuator and SWR settings ....29 Keysight 8497K Operating and Service Manual...
  • Page 11 THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight 8497K Operating and Service Manual...
  • Page 12 Keysight 8497K Attenuator Operating and Service Manual Introduction Product Overview Specifications This manual contains operating instructions for the Keysight 8497K programmable step attenuator. Included in the manual is information required to install and test these attenuators.
  • Page 13: Introduction

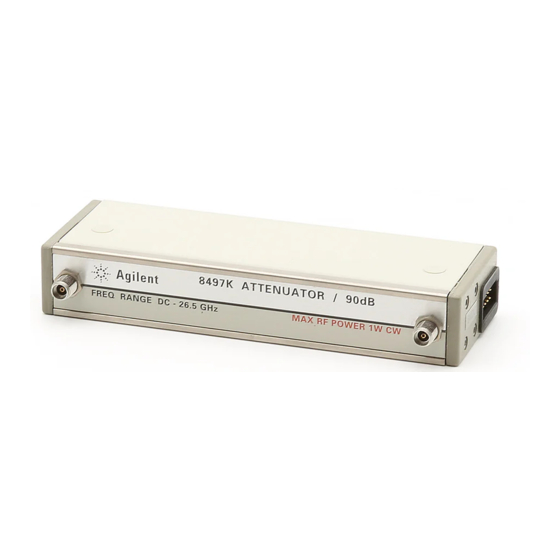

    Introduction Product Overview The 8497K is a 50- ohm, dc to 26.5 GHz, 0 dB to 90 dB (in 10 dB steps), coaxial attenuator with APC 3.5 connectors. The attenuator is made up of four attenuation sections connected in cascade. Each section consists of a precision thin- film attenuator card, a lossless thru- line, and a ganged pair of edge line transmission lines.
  • Page 14 10 μs. Do not connect an attenuator RF input or output connector to greater than ±7 Vdc. If the attenuator must be connected to a device with a potential greater than ±7 Vdc, use a blocking capacitor Keysight 8497K Operating and Service Manual...
  • Page 15: Specifications

    DC to 6.0 GHz 6.0 to 12.4 GHz 12.4 to 18.0 GHz 18.0 to 26.5 GHz Maximum SWR Characteristic impedance, 50 ohms [1] Typical step-to-step accuracy is 0.6 dB to 18.0 GHz, +0.9 dB to 26.5 GHz. Keysight 8497K Operating and Service Manual...
  • Page 16: Insertion Loss

    1 W average, 100 W peak with maximum pulse width of 10 microseconds. Operating life 5 million cycles per section. Attenuation repeatability ±0.03 dB max to 18.0 GHz ±0.05 dB max to 26.5 GHz (5 million cycles per section) Keysight 8497K Operating and Service Manual...
  • Page 17: Switching Speed

    [b] Pin 1 (red wire) is common for all coils. Pins 2, 3, and 4 are not used. [c] Pin 6 is common for all coils. Pins 1, 7, 8, 12, and 14 are not used. Keysight 8497K Operating and Service Manual...
  • Page 18 Introduction (14) Plug (P1), Jack (J1), front view front view Plug, bottom view Figure 1-3 Solenoid cable pin configuration Keysight 8497K Operating and Service Manual...
  • Page 19 Introduction THIS PAGE HAS BEEN INTENTIONALLY LEFT BLANK. Keysight 8497K Operating and Service Manual...
  • Page 20: Environmental Specifications Physical Dimensions

    Specifications & Physical Dimensions Environmental Specifications Physical Dimensions This chapter contains the environmental tests on the Keysight 8497K programmable step attenuator that fully comply with Keysight Technologies’ product operating environmental specifications. The physical dimensions are illustrated in the later section.
  • Page 21: Environmental Specifications & Physical Dimensions

    Environmental Specifications & Physical Dimensions Environmental Specifications The Keysight 8497K Attenuator is designed to fully comply with Keysight Technologies’ product operating environmental specifications as shown in Table 2-1. Table 2-1 Environmental specifications Characteristic Value Temperature – Operating 0 °C to +55 °C –...
  • Page 22: Physical Dimensions

    Environmental Specifications & Physical Dimensions Physical Dimensions Table 2-2 shows the physical dimensions of the 8497K Attenuator. Table 2-2 Physical dimensions Connectors Net weight Dimension 16 oz APC 3.5 female (SMA Figure 2-1 compatible) 454 g Attenuators are warranted only when they are operated within their specifications, especially power handling capability.
  • Page 23 Environmental Specifications & Physical Dimensions Figure 2-1 Dimensions of Keysight 8497K attenuator Keysight 8497K Operating and Service Manual...
  • Page 24 Operating Guides Operating Guides Installation Operating Instructions This chapter describes the installation of the Keysight 8497K programmable step attenuator. The operating instruction quick- check procedure is included for verification test prior to usage. Keysight 8497K Operating and Service Manual...
  • Page 25: Operating Guides

    Keysight Technologies can provide packaging materials identical to the original materials. Refer to Service and Support information in the front matter of this manual for the Keysight Technologies nearest to you. Attach a tag indicating the type of service required, return address, model number and serial number.
  • Page 26: Installation Instructions

    (J1) on the attenuator, and then pushing the plug over the jack. The plug is removed by grasping the ribbed sides of the plug and squeezing them together while pulling back until the plug clears the jack. Keysight 8497K Operating and Service Manual...
  • Page 27: Operating Instructions

    Also, when changing attenuation, it is good practice to insert the required sections before deletion of the unneeded sections. With the attenuator set for 0 dB attenuation, only the insertion loss (residual attenuation) remains. Keysight 8497K Operating and Service Manual...
  • Page 28: Table

    Operating Guides Table 3-1 Switching order Attenuator sections Attenuation (dB) 10 dB 20 dB 20 dB 20 dB Keysight 8497K Operating and Service Manual...
  • Page 29: Operator's Check

    Fine- tune the oscillator frequency to obtain maximum meter indication. 4 Set attenuator and SWR meter range switch as listed in Table 3-2 and verify that the SWR meter indicates within the limits shown. Keysight 8497K Operating and Service Manual...
  • Page 30: Performance Tests

    [a] Adjust range by 2 dB, if needed, to obtain an on-scale indication. Performance tests The Keysight 8497K Attenuator can be tested to the accuracy of the specifications with a network analyzer or equivalent equipment of suitable accuracy. If a network analyzer is available, test instrument using the procedure in the analyzer's operating manual.
  • Page 31: Service Instructions

    Operating Guides Service instructions Ad justment The Keysight 8497K Attenuator does not have internal adjustments and should not be opened. Repair The Keysight 8497K Attenuator is not recommended for repair as most components are not easily removed. Maintenance The connectors, particularly the connector faces, must be kept clean. For instruction on connecting and care of your connectors, refer to the Microwave Connector Care Quick Reference Card (08510- 90360).
  • Page 32 This information is subject to change without notice. Always refer to the English version at the Keysight website for the latest revision. © Keysight Technologies 2011 - 2019 Edition 5, January 10, 2019 Printed in Malaysia *08497-90003* 08497-90003...
