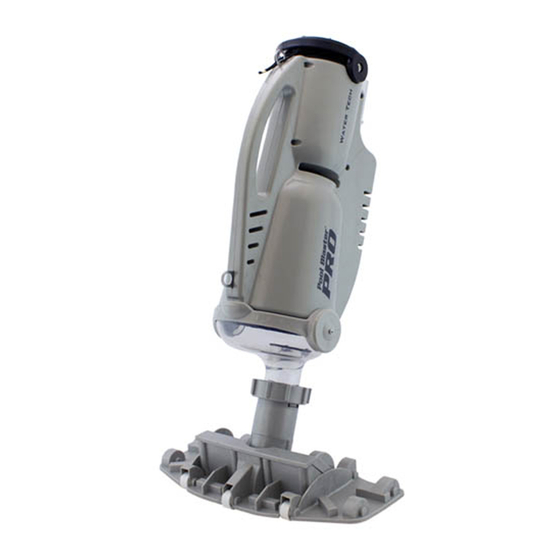

Water Tech Pool Blaster PRO Series Installation Manual

Your new kit will come with the

following item:

Motor Box (P40X003LI)

with motor box away from you and pole side to

the left. Detach motor box cap from motor box.

Remove the ten (10) screws from the side of the

shell and separate shell from unit. Place screws

to the side.

Phillips screwdriver or drill

Installation Guide

Need Help? Contact Customer Care at (732) 967-9888

Replacing the Pool Blaster® PRO Series Motor Box

You will need the following tools:

STEP 2: The motor box, funnel and pole

attachment should be visable now. Remove

funnel and place to side.

Pliers

Table of Contents

Need help?

Do you have a question about the Pool Blaster PRO Series and is the answer not in the manual?

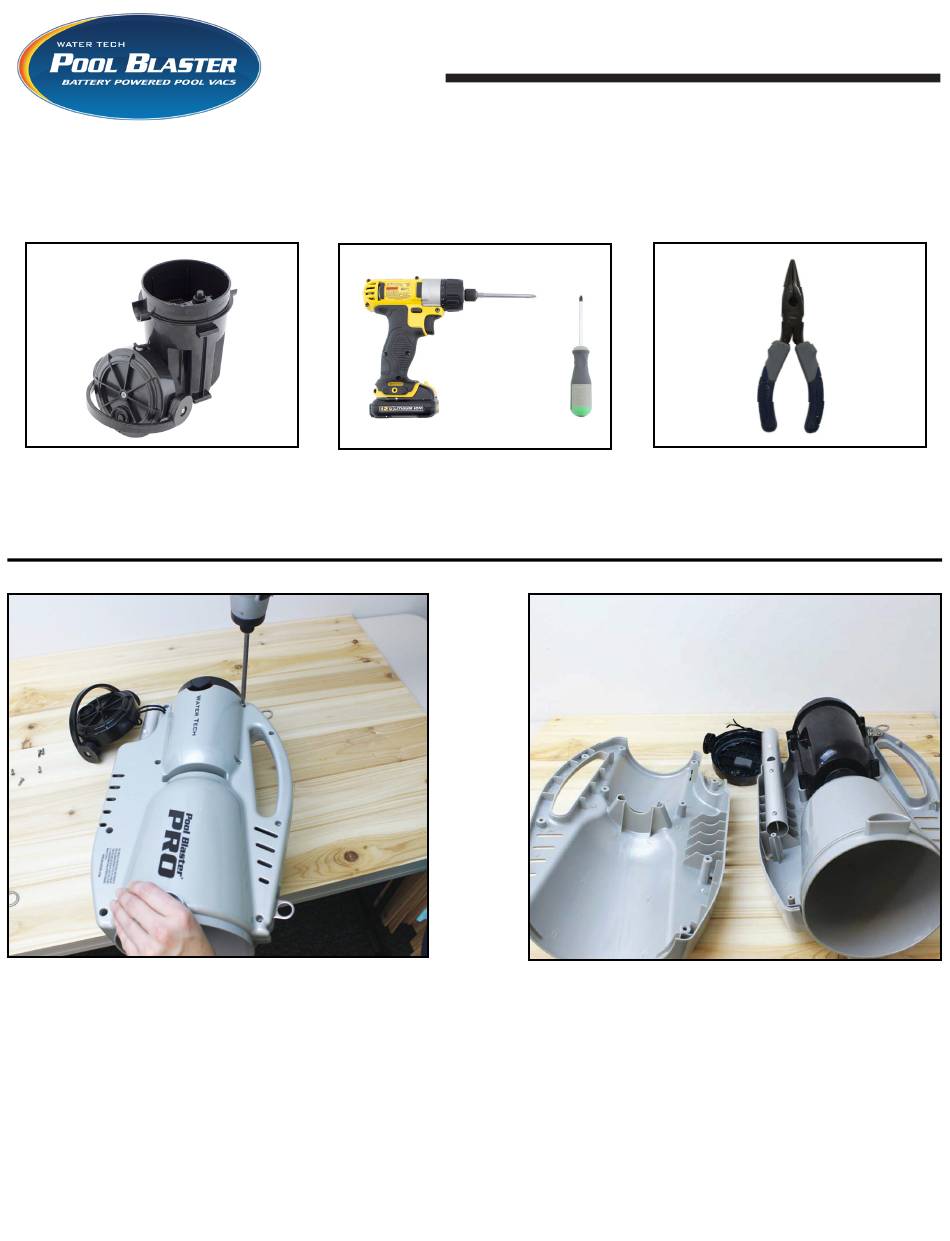

Page 1 Installation Guide Need Help? Contact Customer Care at (732) 967-9888 ® Replacing the Pool Blaster® PRO Series Motor Box Your new kit will come with the You will need the following tools: following item: Pliers Motor Box (P40X003LI) Phillips screwdriver or drill STEP 1: Place the unit flat on a workbench STEP 2: The motor box, funnel and pole with motor box away from you and pole side to...
Page 2 Installation Guide Need Help? Contact Customer Care at (732) 967-9888 ® Replacing the Pool Blaster® PRO Series Motor Box STEP 3: Turn the unit over and remove the four (4) screws holding the motor box assembly in place. Separate shell from motor box. STEP 4: Inspect the side of the shell that has the motor box cap attached to it.
Page 3 Installation Guide Need Help? Contact Customer Care at (732) 967-9888 ® Replacing the Pool Blaster® PRO Series Motor Box STEP 5: Slide metal clip off new lanyard. Remove new motor box cap and attached lanyard from new motor box. String new lanyard through metal ring (as shown). Slide clip over both ends of lanyard.
