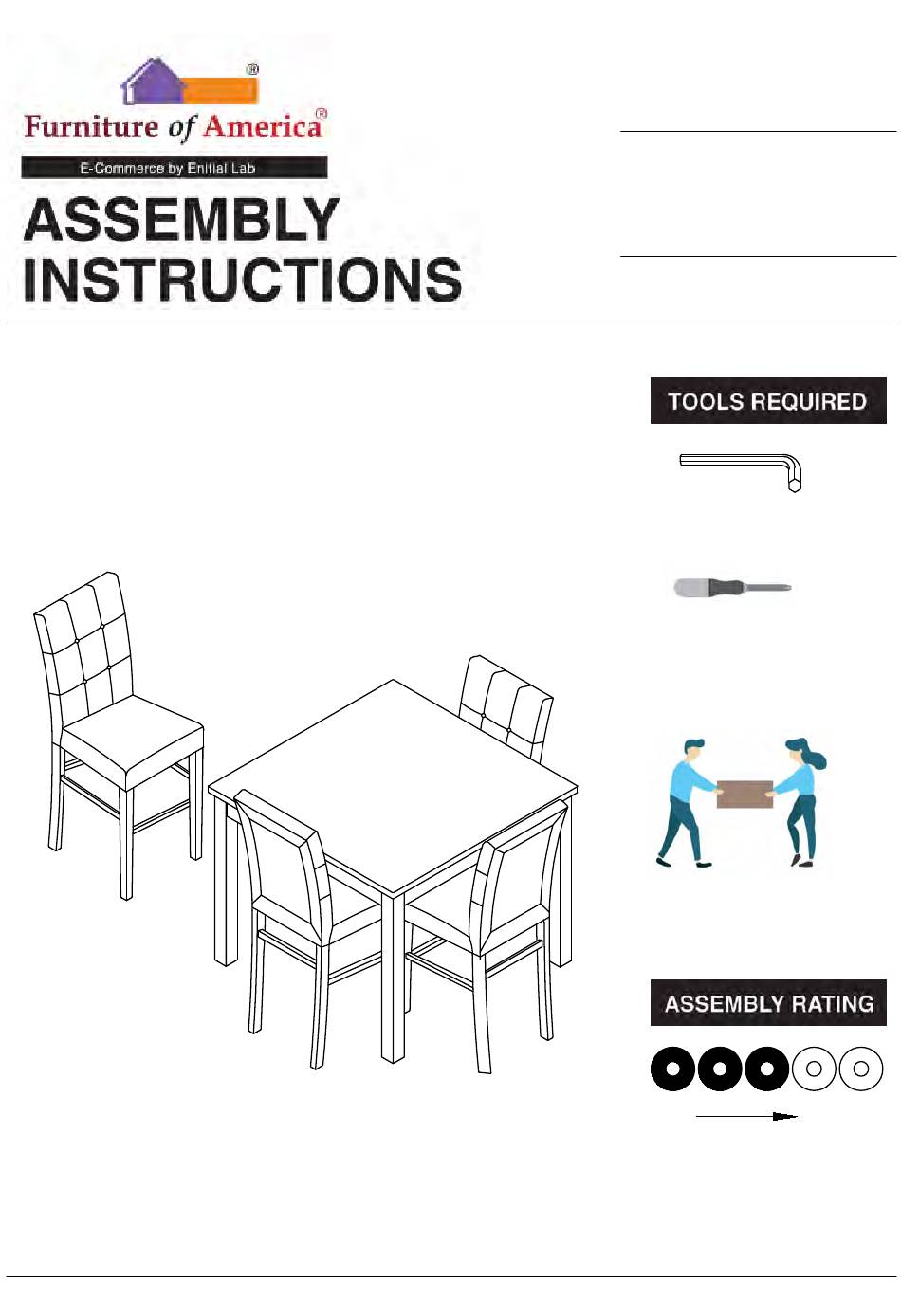

VERSION
# 20-0 7-30
1 / 9
MODEL #
CM3712PT-5PK
Questions?
GIVE US CALL: 1-888-980-5122
MON-FRI 8:30AM - 5:30PM (PST)
Allen Wrench
(Included)
Phillips
Screwdriver
(Not Included)
2 - People
Recommended
EASY
The Assembly Rating is a
5-point system showing the
level of effort needed to
assemble a specific product.
DIFFICULT
Advertisement
Related Manuals for Furniture of America CM3712PT-5PK
Summary of Contents for Furniture of America CM3712PT-5PK
- Page 1 MODEL # CM3712PT-5PK Questions? GIVE US CALL: 1-888-980-5122 MON-FRI 8:30AM - 5:30PM (PST) Allen Wrench (Included) Phillips Screwdriver (Not Included) 2 - People Recommended EASY DIFFICULT The Assembly Rating is a 5-point system showing the level of effort needed to assemble a specific product.
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 9...
- Page 5 HEIGHT TABLE SETS CM3712PT-5PK #1 1pc #2 4pcs #3 4pcs #4 4pcs #5 4pcs Chair Seat Table Top Table Leg Backrest Front Left Leg #6 4pcs #7 4pcs #8 4pcs #9 4pcs Front Right Leg Front Stretcher Left Stretcher Right Stretcher...
- Page 6 ASSEMBLY INSTRUCTIONS Part Align table legs (#2) to the table (#1), then secure by #1 x1pc using bolts (#B) with washers (#E,F). Part #3 x4pcs Hardware #B x8pcs Hardware #E x8pcs Hardware #F x8pcs 6 / 9...
- Page 7 ASSEMBLY INSTRUCTIONS Align seat (#3) to the chair back (#4), then secure by using bolts (#C) with washers (#E,F). Part #3 x4pcs Part #4 x4pcs Hardware #C x8pcs Hardware #E x8pcs Hardware #F x8pcs Secure corner holes of the seat (#3) to chair back (#4), then Hardware #A x16pcs secure by using bolts (#A) with washers (#E,F).
- Page 8 ASSEMBLY INSTRUCTIONS Align stretchers (#8,9) to chair back (#4) as shown in the diagram. Part #8 x4pcs Part #9 x4pcs Part #5 x4pcs Part #6 x4pcs Align front stretcher (#7) to the front legs (#5,6) as shown in the diagram. Part #7 x4pcs Align front legs (#5,6) to seat (#3), while have...
- Page 9 ASSEMBLY INSTRUCTIONS Hardware #D x24pcs Secure stretchers (#7,8,9) by using screws (#D). Hardware #B x16pcs Secure front legs (#5,6) to seat (#3) by using bolts (#B) with washers (#E,F). Hardware #E x16pcs Hardware #F x16pcs #E #B 9 / 9...
