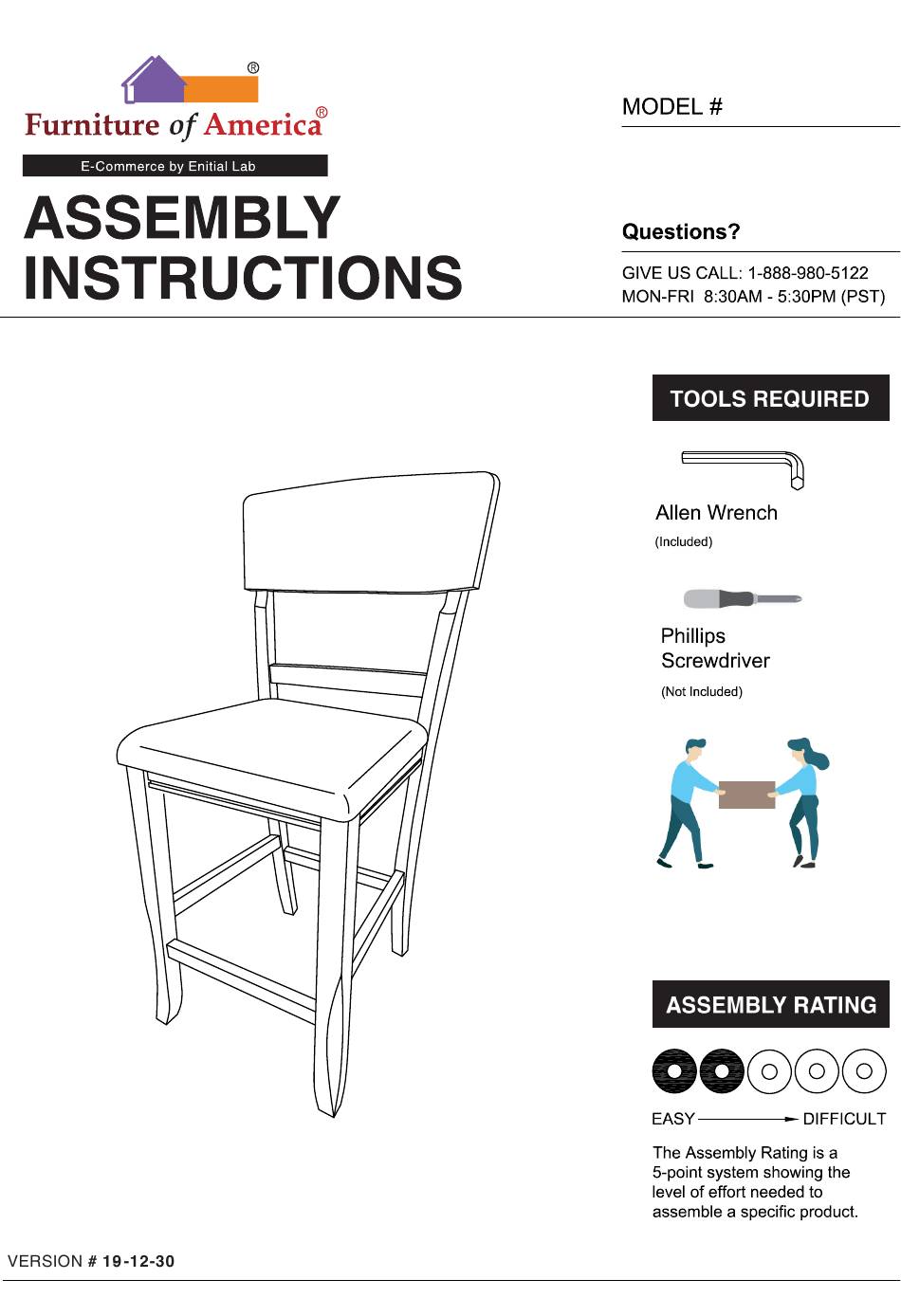

- Page 1 CM3733PC-2PK 2 - People Recommended 1 / 8...
- Page 2 America Furniture FOA Intro Thank you for your purchase! We hope you enjoy this new addition to your home for many years to come. Our commitment to providing quality products does not simply end when you purchase our product. We fully stand behind our products from start to finish. Our customer service department is available Monday –...
- Page 3 PRE ASSEMBLY INTRODUCTION We understand building ready-to-assemble furniture can be a challenging experience for some. To help avoid confusion, we have provided some helpful tips that may speed up the process. Teamwork ALWAYS have at least two people to help with transporting and assembling the product to avoid potential injury and/or damage.
- Page 4 4 / X X X X X X X 8...
- Page 5 COUNTER HEIGHT CHAIR CM3733PC-2PK #1 1pc #2 1pc #3 2pcs Chair Frame Back Box Seat Front Leg (Left & Right) #4 2pcs #5 1pc Side Stretcher Front Stretcher (Left & Right) #A 4pcs #B 4pcs #C 2pcs #D 10pcs JCBC SCREW...
- Page 6 ASSEMBLY INSTRUCTIONS Align seat (#2) to the chair back (#1), then secure by using bolts (#C) with washers (#D,E). Part x1pc Part x1pc Hardware x2pcs Hardware x2pcs Hardware x2pcs Secure corner holes of the seat (#2) to chair back (#1) by using bolts (#A) with washers Hardware x4pcs (#D,E).
- Page 7 ASSEMBLY INSTRUCTIONS Part x2pcs MARKING L-LEFT MARKING R-RIGHT Align stretchers (#4R/L) to the holes of the chair back (#1). Part x2pcs Part x1pc Hardware x4pcs Hardware x4pcs Hardware x4pcs MARKING L-LEFT Align front legs (#3R/L) with stretcher (#5) to the seat and side stretchers, then secure by using bolts (#B) with washer (#D,E).
- Page 8 ASSEMBLY INSTRUCTIONS Hardware x6pcs Secure stretchers by using screws (#G). 8 / X X X X X X X 8...
