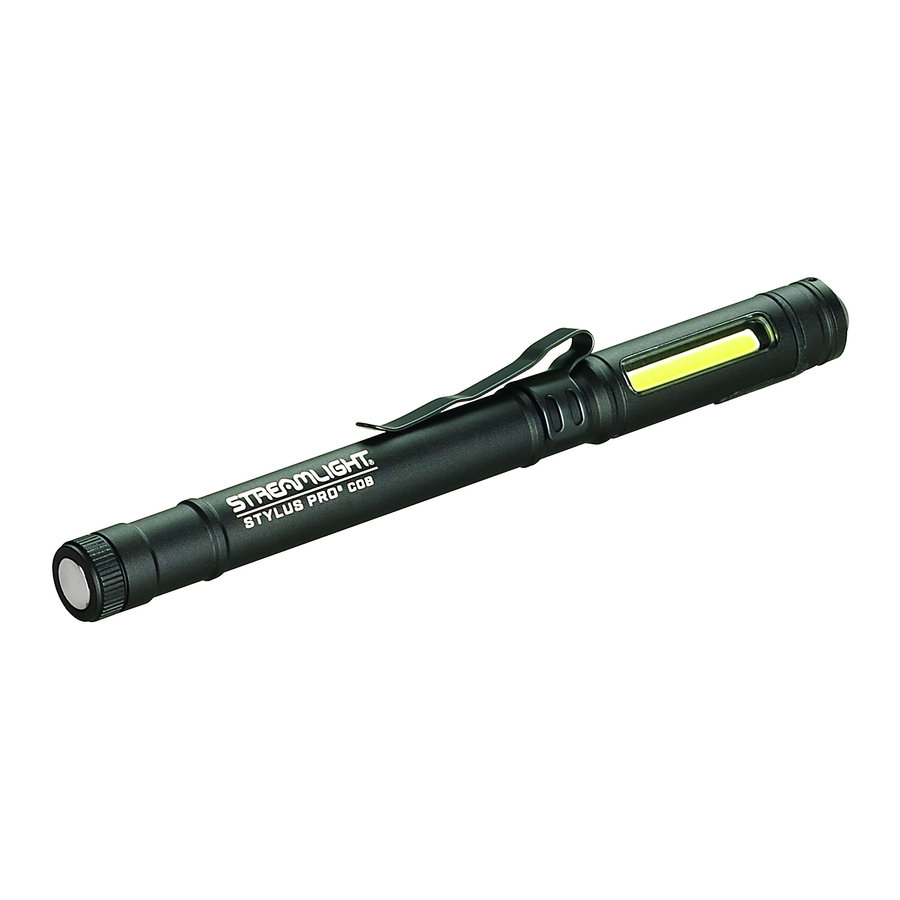

STREAMLIGHT STYLUS PRO COB - Flashlight Manual

1. You must charge the battery before using the Stylus Pro^® COB to disable the packaged "Try Me Mode" functionality.
2. Once the light is charged, the light will function as described below in Light Function.

USING THE LIGHT

• Push button switch – constant on operation. High/Low/Off.
• With the light on, press and hold the button for three seconds to access flash mode. Press and hold again to go back to standard operation.
• Light uses Streamlight's (660 mAh) Lithium Ion cell pack with on board safety circuit. Rechargeable up to 300 times. NOTE: when you get to 300 charges the battery will take approximately 70% of the original charge value.
• Push in rubber cover protects the Micro USB charging port from debris and water infiltration.

CHARGING INFORMATION

Fully charge your flashlight before first use. To charge the battery - peel the rubber cover back to expose the micro USB connector.

Using the supplied cord, plug the micro USB connector into the mating socket on the light. Plug the standard USB connector into a USB port on your computer or other USB accessible port.

Charge indication LED: LED Red – Charging; LED Green – Charged.
NOTE - If there is no battery in the light, both the Red and Green charge indicator will light up simultaneously.

The light has a digital control circuit that prevents overcharge. The battery fully recharges in 4.5 hours and charges the battery in the light. (4.5 HR charge time assumes 500 mA output USB connection. USB power ports can range from 100 to 500 mA)

NOTE – The light does not need to be in the off position to charge the light. However if the light is on (lit) when the user plugs the USB cord into the USB power source, the light will extinguish. When the user unplugs the light from the USB power source the light resets to the off position.

3 Hour Run Time - NOTE - In the last 30 minutes the light will drop off dramatically. There are "no end of run time notifications", the light will simply turn off.

BATTERY REPLACEMENT

To replace the Streamlight Li Ion cell. Remove the tail cap by rotating it counter clock wise. Slide the battery out and replace it with a Streamlight 66143 lithium battery. Slide the new battery into the barrel with the positive end entering the barrel first. Replace the tail cap.

PRODUCT REGISTRATION: To register your product, go to www.streamlight.com (Online Product Registration). Retain your receipt or any proof of purchase.

Be sure to use only genuine Streamlight^® replacement parts.

To assure product safety and reliability, repairs other than those listed below should be performed at the Streamlight factory. Always use Streamlight approved replacement parts, substitution may invalidate underwriter's approval.

SERVICE

Go to www.streamlight.com for the location of an authorized Streamlight repair center near you.
