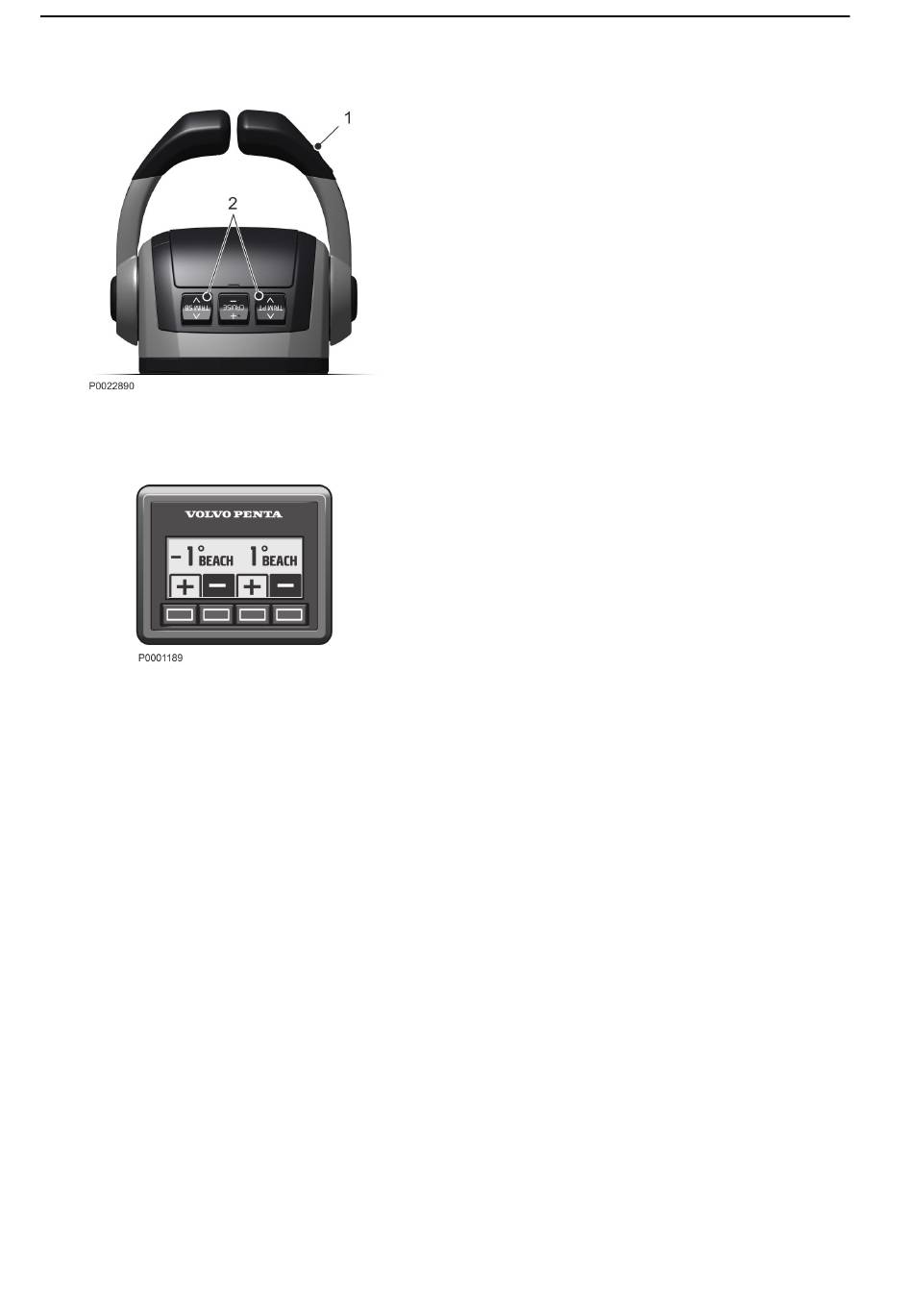

Top mount control for twin installation
50

Trim Controls

The drive can be trimmed with the Power Trim panel or
with the button at the side of the control (1).
For twin engine installations, the button at the side
adjust the drives simultaneous. There is also a button
for individual adjustments to the drives (2) on the
control for twin installations.
NOTICE! The individual drive adjustments with the
front buttons (2) is only available for installations
without Volvo Penta Interceptor System. For
information about the Interceptor System, refer to
Optional, page 85.
Powertrim panel
The Power Trim panel is used for both single and twin
engine installations. For twin engine installations, the
control panel can be used to make individual or
simultaneous adjustments to the drives.
The drive's angle and position is shown on the Power
Trim panel. By trimming out the drive away from the
transom the bow will be "raised" in relation to the
horizontal axis and trimming in the drive will "lower" the
bow of the boat.
Trimming out the drive
On the Power Trim panel, press button + to trim the
drive out, away from the transom. The bow will
be "raised" in relation to the horizontal axis.
Trimming in the drive
Press button – to trim the drive in, towards the transom.
The bow will be "lowered" in relation to the horizontal
axis.
