This manual is integrant and essential to the product. Carefully read the instructions contained
herein as they provide important hints for use and maintenance safety.
This device is to be used only for the purposes it has been designed to. Other uses should be
considered improper and dangerous. The manufacturer is not responsible for possible damages
caused by improper, erroneous and irrational uses.
Elettronica Santerno is responsible for the device in its original setting.
Any changes to the structure or operating cycle of the device must be performed or authorized
by the Engineering Department of Elettronica Santerno.
Elettronica Santerno assumes no responsibility for the consequences resulting by the use of
non original spare-parts.
Elettronica Santerno reserves the right to make any technical changes to this manual and to the
device without prior notice. If printing errors or similar are detected, the corrections will be
included in the new releases of the manual.
Elettronica Santerno is responsible for the information contained in the original version of the
Italian manual.
The information contained herein is the property of Elettronica Santerno and cannot be
reproduced. Elettronica Santerno enforces its rights on the drawings and catalogues according to
the law.
After Sales Service Tel. +39 0542 668610 - Fax +39 0542 668623
Sales Department Tel. +39 0542 668611 - Fax +39 0542 668600
e-mail:
sales@elettronicasanterno.it
USER MANUAL
Update 25/01/06
R. 01
Elettronica Santerno S.p.A.
Via G. Di Vittorio, 3 - 40020 Casalfiumanese (Bo) Italy
Tel. +39 0542 668611 - Fax +39 0542 668622
•15P0073B1•
Inverter
SINUS M
E n g l i s h
- web:
www.elettronicasanterno.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SINUS M and is the answer not in the manual?

Questions and answers

Summary of Contents for Santerno SINUS M

  • Page 1 • Elettronica Santerno reserves the right to make any technical changes to this manual and to the device without prior notice. If printing errors or similar are detected, the corrections will be included in the new releases of the manual.
  • Page 3 Identifies shock hazards under certain conditions. Particular attention should be directed because dangerous voltage may be present. Keep operating instructions handy for quick reference. Read this manual carefully to maximize the performance of Sinus M series inverter and ensure its safe use. WARNING Do not remove the cover while power is applied or the unit is in operation.
  • Page 4 Wiring and periodic inspections should be performed at least 10 minutes after disconnecting the input power and after checking the DC link voltage is discharged with a meter (below DC 30V). Otherwise, you may get an electric shock. Operate the switches with dry hands. Otherwise, you may get an electric shock.
  • Page 5 Follow your national electrical code for grounding. Recommended Ground impedance for 2S/T class (200-230V) is below 100 ohm and for 4T class (380-480V) below 10 ohm. SINUS M series contains ESD (Electrostatic Discharge) sensitive parts. Take protective measures against ESD before touching the pcb for inspection or installation.
  • Page 6 Always apply permissible range of voltage to the each terminal as indicated in this manual. Otherwise, it could lead to inverter damage. (4) Operation precautions When the Auto restart function is selected, stay away from the equipment as a motor will restart suddenly after an alarm stop.
  • Page 7 Important User Information The purpose of this manual is to provide the user with the necessary information to install, program, start up and maintain the SINUS M series inverter. To assure successful installation and operation, the material presented must be thoroughly read and understood before proceeding.
  • Page 8 Table of Contents CHAPTER 1 - Basic information & precautions................ 1-1 1.1 Important precautions ........................... 1-1 1.2 Product Details............................1-2 1.3 Product assembling & disassembling ....................1-3 CHAPTER 2 - Installation ......................2-1 2.1 Installation precautions ......................... 2-1 2.2 Dimensions ............................2-3 CHAPTER 3 - Wiring ........................
  • Page 9 9.7 Frequency limit............................ 9-21 CHAPTER 10 - Advanced functions................... 10-1 10.1 DC brake ............................10-1 10.2 Jog operation ............................ 10-3 10.3 UP – DOWN............................10-4 10.4 3-Wire operation (Start – Stop via push buttons) ................10-5 10.5 Dwell operation ..........................10-6 10.6 Slip compensation..........................
  • Page 10 13.3 Installation ............................13-2 13.4 Operation ............................13-3 13.5 Communication protocol (MODBUS-RTU) ..................13-4 13.6 Communication protocol (ES BUS) ....................13-4 13.7 Parameter code list <Common area>....................13-8 13.8 Troubleshooting ..........................13-17 13.9 Miscellaneous ..........................13-17 CHAPTER 14 - Troubleshooting & Maintenance............... 14-1 14.1 Protective functions...........................
  • Page 11 Inverter Type Code Input Power Rating Output volt, frequency, current, power SINUS M 0001 Motor rating* Input power Brake Filter...

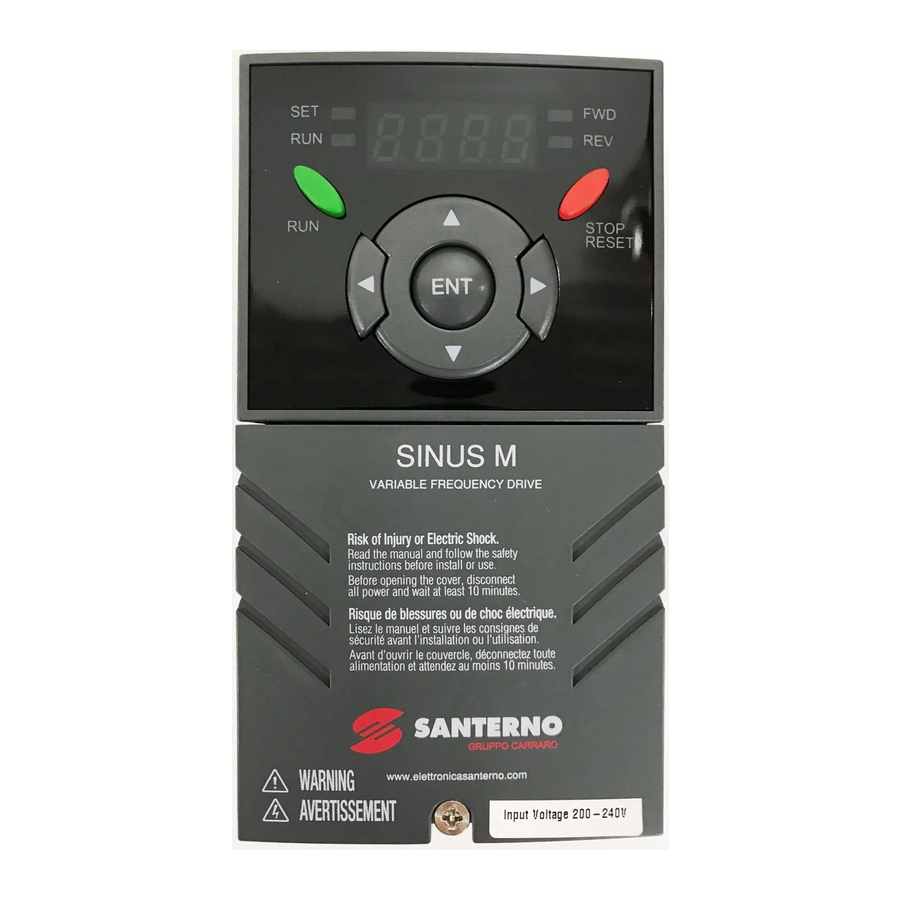

  • Page 12 1.2 Product Details Appearance Status LED Display STOP/RESET button RUN button [ENT] button Front cover: Removed when wiring Inverter nameplate Bottom cover: Removed when wiring input power and a motor Inside view after front cover is removed Refer to “1.3 front cover removal” for details. 4-Way button for NPN, PNP parameter setting...
  • Page 13 1.3 Product assembling & disassembling To remove the front cover: Press the both indented sides of the cover lightly and pull up. Press these parts lightly and pull the cover up. To change the inverter fan: Press the both sides of bottom cover lightly and pull out . Press this part and pull out.
  • Page 14 Notes:...
  • Page 15 CHAPTER 2 - INSTALLATION 2.1 Installation precautions CAUTION Handle the inverter with care to prevent damage to the plastic components. Do not hold the inverter by the front cover. It may fall off. Install the inverter in a place where it is immune to vibration (5.9 m/s or lower).
  • Page 16 When two or more inverters are installed or a cooling fan is mounted in a panel, the inverters and fan must be installed in proper positions with extreme care to keep the ambient temperature below the permissible range. Installed the inverter using screws or bolts to insure the inverter is firmly fastened. <...
  • Page 17 2.2 Dimensions SINUS M 0001 2S/T - SINUS M 0002 2S/T SINUS M 0003 2S/T - SINUS M 0003 4T SINUS M 0001 4T - SINUS M 0002 4T...
  • Page 18 SINUS M 0005 2S/T - SINUS M 0007 2S/T SINUS M 0011 2S/T - SINUS M 0014 2S/T SINUS M 0005 4T - SINUS M 0007 4T SINUS M 0011 4T - SINUS M 0014 4T Φ...
  • Page 19 Φ Inverter [kW]* [Kg] [mm] [mm] [mm] [mm] [mm] [mm] [mm] SINUS M 0001 2S/T 65.5 0.76 SINUS M 0002 2S/T 0,75-1,1 65.5 0.77 SINUS M 0003 2S/T 1,5-1,8 95.5 1.12 SINUS M 0005 2S/T 2,2-3 120.5 1.84 SINUS M 0007 2S/T 4-4,5 120.5...
