Courtyard Creations KTS7377 Assembly Instructions

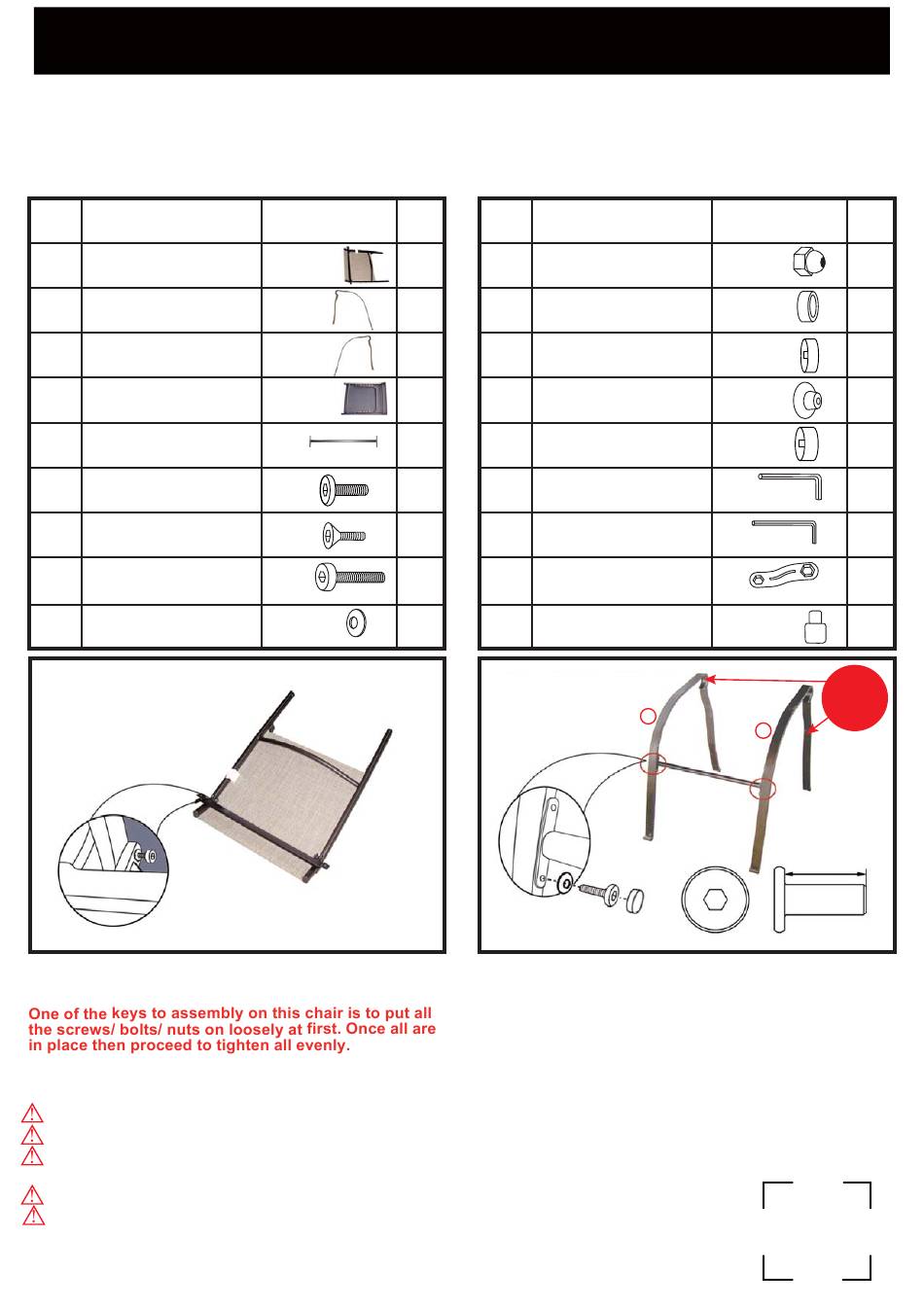

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

PARTS LIST

PART
MATERIAL CODE
NO.
1 KTS7377-CS02-1
2 KTS7377-CS04-3
3 KTS7377-CS04-4
4 KTS7377-CS03-1
5 62KTS737DQ101
6 17C33A0706001Y4
7 17C02A0755131Y4
8 17C01A0714001Y4
9 17FA05040301-Y4
FIGURE 1
Attention:
Make sure that each bolt needed for all steps matches the
corresponding figure to ensure proper assembly.
Note:
The bolts on the seat assembly (#1) must be loose before
assembling the chair. See Figure 1.
Use the correct bolts as indicated. Do not tighten any of the bolts until the chair is completely assembled.
Do not discard of any of the packaging until you have checked that you have all of the parts and fittings required.
Keep children away during assembly. This item contains small parts that can be swallowed by children.
Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
Quote the following FQC NO. when contacting the service center.
INTENDED FOR RESIDENTIAL USE ONLY.
KTS7377
PART Q'TY
1
SEAT ASSEMBLY
1
LEFT LEG
1
RIGHT LEG
1
BACK ASSEMBLY
1
CROSS BRACE
4
BOLT M6*16
2
BOLT M6*14
4
BOLT M6*40
10
WASHER d6.5*D13*1.0
1
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
PAGE 1 OF 2
PART
MATERIAL CODE
NO.
10 18000C23001
11
18060603030201
12 18000337004
13 18000337006
14 18000337001
15 17KAA0201----Y4
16 17KAA0101----Y4
17 17KAB1101----Y4
18 1422
FIGURE 2
2
L
9
6
12

Step 1:

Find the legs which marked with red circle for the adjustable
chair. Fasten the cross brace (#5) to the rear of the left leg (#2)
and the right leg (#3) by using bolts (#6) and washers (#9).
Keep the bolts loose. See Figure 2.
Note:
The labels marked "L" and "R" on the legs (#2 and #3) should
coincide with Figure 2 to ensure proper assembly.
COURTYARD CREATIONS INC.
PART Q'TY
2
PLASTIC NUT M6*P1.0
2
PLASTIC WASHER d6.5xD12x5
4
BOLT CAP
2
BOLT CAP M6
6
BOLT CAP M6
1
HEX.KEY WRENCH 6MM
1
HEX.KEY WRENCH 4MM
1
NUT WRENCH 10&13MM
1
TOUCH-UP PAINT
Adjustable
chair leg
3
R
5
16
#6 BOLT M6*16
