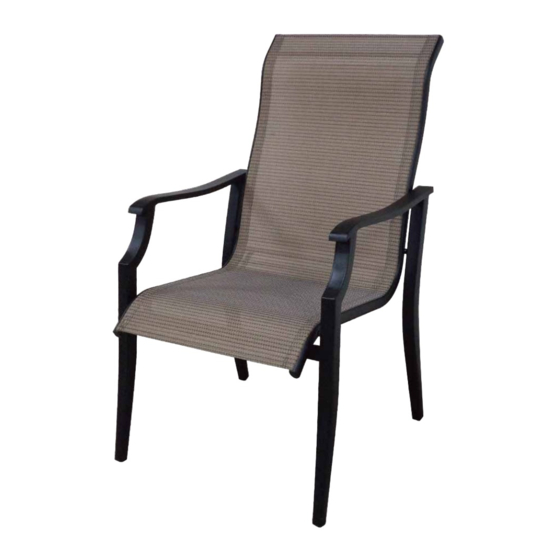

Courtyard Creations KTS712G Assembly Instructions

ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

PARTS LIST

PART
MATERIAL CODE
NO.
1
KTS712G-CS11-1
2
KTS712G-CS01-2
3
KTS712G-CS01-3
4
17C40A0705001YX
Attention:
Make sure that each bolt needed for all steps matches
the corresponding figure to ensure proper assembly.

Step 1:

Fasten the left arm (#2) and the right arm (#3) to the
seat assembly (#1) by using bolts (#4 and #5). Keep
the bolts loose. See Figure 1.
Note:
The labels marked "L" and "R" on arms (#2 and #3)
should coincide with Figure 1 to ensure proper assembly.
Use the correct bolts as indicated. Do not tighten any of the bolts until the chair is completely
!
assembled.
Do not discard of any of the packaging until you have checked that you have all of the parts and
!
fittings required.
! Keep children away during assembly. This item contains small parts that can be swallowed by
children. Children should always be under direct adult supervision while using this product.
Retain these assembly instructions for future reference.
!
! Quote the following FQC NO. when contacting the service center.
E-2
INTENDED FOR RESIDENTIAL USE ONLY.
KTS712G
PART
SEAT ASSEMBLY
LEFT ARM
RIGHT ARM
BOLT M6*15
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
PAGE 1 OF 2
PART
Q'TY MATERIAL CODE
NO.
1 5
17C02A0755001YX
1 6
17C40A0712001YX
1 7
17KAA0101----Y4
2 8
17KAC3101----Y3
FIGURE 1
4
5
PART
BOLT M6*14
BOLT M6*35
HEX. KEY WRENCH 4MM
HEX. KEY WRENCH 10MM
L
2
R
3
15
#4 BOLT M6*15
COURTYARD CREATIONS INC.
Q'TY
2
4
1
1
1
14
#5 BOLT M6*14
