ASSEMBLY INSTRUCTIONS
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE

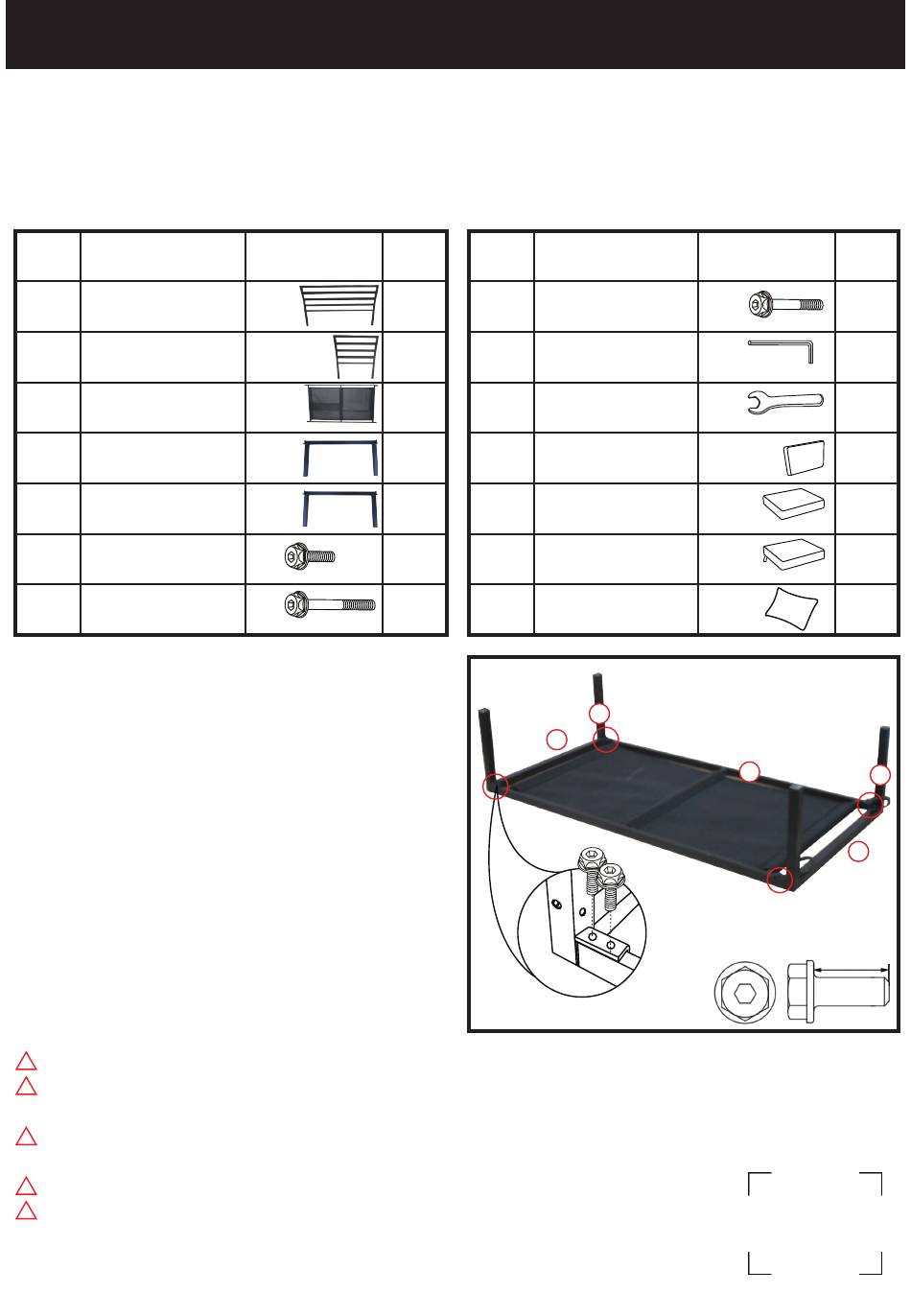

Parts List
PART
MATERIAL CODE
NO.
1
KTS6652-CS03-1
2
KTS6652-CS01-1
3
KTS6655-CS02-1
4
KTS6652-CS04-3
5
KTS6652-CS04-4
6
17C40A0705001YX
7
17C40A0745091YX
Attention:
Make sure that each bolt needed for all steps matches
the corresponding figure to ensure proper assembly.

Step 1:

Place the seat assembly (#3) onto a non-abrasive
surface, such as a carpet. Fasten the legs (#4 and #5)
to the seat assembly (#3) by using bolts (#6). Keep the
bolts loose. See Figure 1.
Note:
To ensure proper assembly, the label marked "A"
on the seat assembly (#3) should coincide with
the label marked "A" on the legs (#4 and #5).
Note:
The labels marked "L" and "R" on the legs (#4 and #5)
should coincide with Figure 1 to ensure proper
assembly.
!
Use the correct bolts as indicated. Do not tighten any of the bolts until the chair is completely assembled.
!
Do not discard of any of the packaging until you have checked that you have all of the parts and fittings
required.
!
Keep children away during assembly. This item contains small parts that can be swallowed by children.
Children should always be under direct adult supervision while using this product.
!
Retain these assembly instructions for future reference.
!
Quote the following FQC No. when contacting the service center.
E-2
INTENDED FOR RESIDENTIAL USE ONLY.
STS40JD
KTS6655
PART Q'TY
1
BACK
ASSEMBLY
1
LEFT/RIGHT ARM
1
SEAT ASSEMBLY
1
LEFT LEG
1
RIGHT LEG
8
BOLT M6*15
1
BOLT M6*100
SERVICE CENTER TOLL FREE NO.
TEL: 1-877-539-7436
FAX: 1-877-539-7439
PAGE 1 OF 7
PART
MATERIAL CODE
NO.
8
17C40A0716001YX
9
17KAA0101----Y4
10
17KAC3101----Y3
11
61K6655X00001BA
12
61K6655Y00001BA
13
61K6655Y50001BA
14
61K6655J00001BA
FIGURE 1
A
L
4
6
6
#6 BOLT M6*15
COURTYARD CREATIONS INC.
PART Q'TY
8
BOLT M6*45
1
HEX. KEY WRENCH 4MM
1
HEX. KEY WRENCH 10MM
2
BACK CUSHION
1
LEFT SEAT CUSHION
1
RIGHT SEAT CUSHION
1
PILLOW
3
A
R
5
15
A
