Xilin CDDR Operation Manual page 2

Welcome to choose "XILIN" electric pallet stacker!
We hope our electric stackers will bring great convenience
to your work!
Please read the manual carefully before operation
This manual is a common manual. We reserve the right to modify
technology of the electric stacker. If there is anything in the
manual that is not consistent with the actual stacker, the actual
stacker should be considered correct and the manual is only for
reference.
************************************************************
Operators must strictly conform to ISO3691 "Safety Specifications of Motor Industrial Vehicles".
Untrained personnel are not allowed to operate the stacker.
************************************************************
According to ISO 3691 "Safety Specification of Motor Industrial Vehicles", load capacity and lifting height of our
CDD Electric Pallet Stacker are stipulated as follows:
1．——When the lifting height of CDDR stacker is below 2500mm (including2500mm), the maximum
load capacity is the rated capacity. Overloading is prohibited.
2．——When the lifting height of CDDR stacker is above 2500mm (excluding2500mm), the load

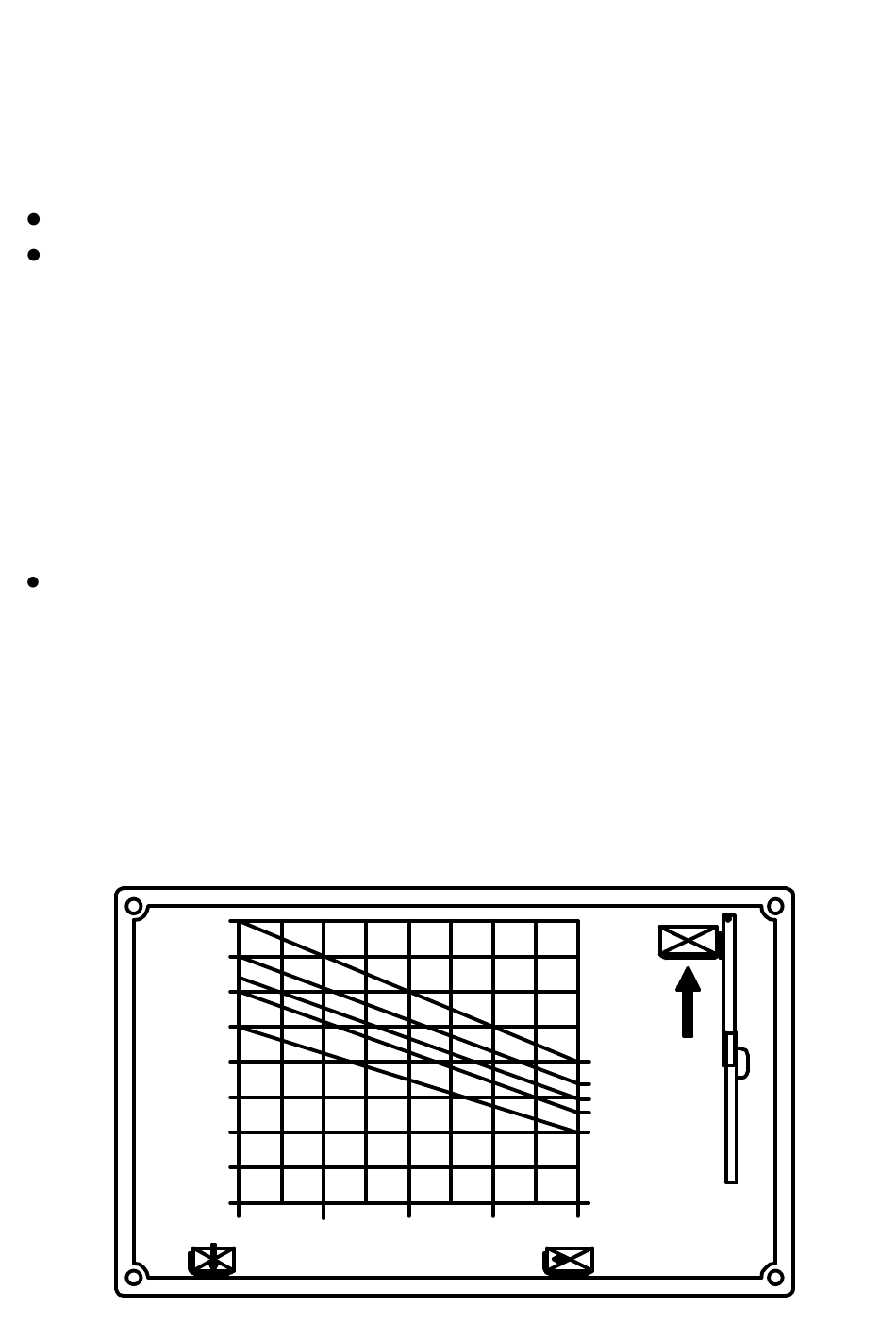

capacity is less than the rated bearing capacity. Take the following diagrams as a reference with
the rated loads of 1000kg, 1500kg and 2000kg:
1000kg
800kg
600kg
400kg
200kg
Warning!
600 700
1.0T LOAD CHART
800
900 1000
2500 mm
3000 mm
3300 mm
3500 mm
4000 mm
mm
