Operation

© Danfoss | Climate Solutions | 2022.01

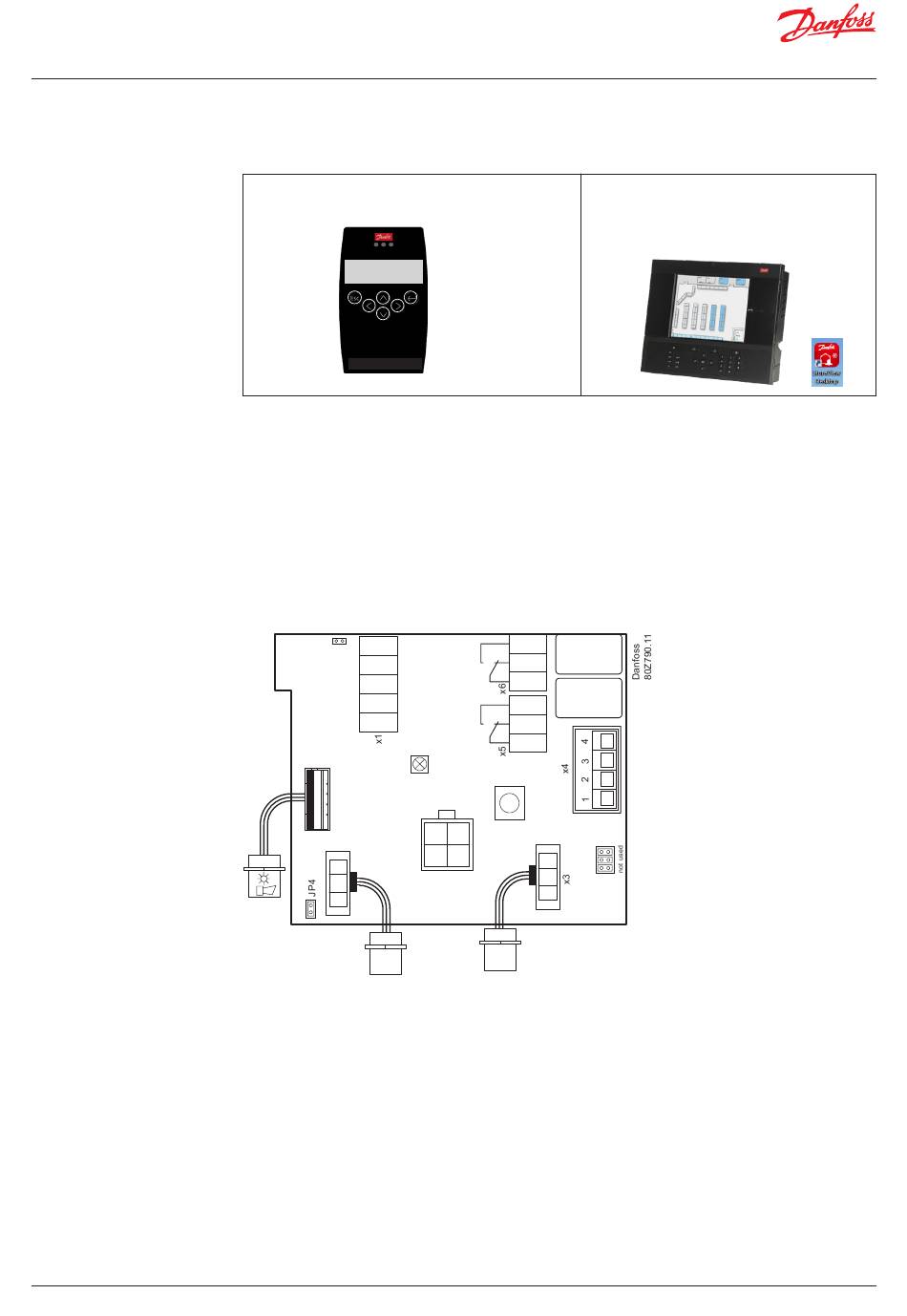

The configuration and service is made via the hand-held Service Tool or in combination with the
MODBUS interface.
Security is provided via password protection against unauthorized intervention.
Hand-held Service Tool:
Operation is done via 6 buttons.
D1 R744 ppm
Warm-up Time
Esc ←─
DGS Service Tool
Gas Detection Service Tool
Operation with the hand-held Service Tool is described in sections 4.1 – 4.3 and chapter 5. Operation
with the Danfoss Front End is described in chapter 6.
Two functions are configured via jumpers on the DGS.
Jumper 4, JP 4, located at the bottom left, is used to configure the MODBUS baud rate. As default the
baud rate is 38400 Baud. By removing the jumper, the baud rate is changed to 19200 Baud. Removing
the jumper is required for integrating with Danfoss System Managers AK-SM 720 and AK-SM 350.
Jumper 5, JP5, located at the top left, is used to configure the analogue output type.
As default this is voltage output. By removing the jumper, this is changed to current output.
Note: the DGS must be power cycled before any change to JP4 takes effect. JP1, JP2 and JP3 are not used.
5 GND
JP5
open: 0-20mA 4 AO_01
closed: 0-10V
not used
2
DI_01
1 S&H supply
x8
LED
Yellow/Green/Red
x2
B&L
open: 19200 Baud
closed: 38400 Baud
Sensor 2
AK- System Manager:
The configuration is done via the graphical
display and buttons or via the PC tools
StoreView Desktop or AK-ST 500.
1
Rel. 3
2
(critical)
3
Rel. 1
1
(warning)
2
3
Ackn.-/Test
button
Tool
x9
JP3
JP2
JP1
Sensor 1
B-
MODBUS
A+
-
24 V AC/DC
+
