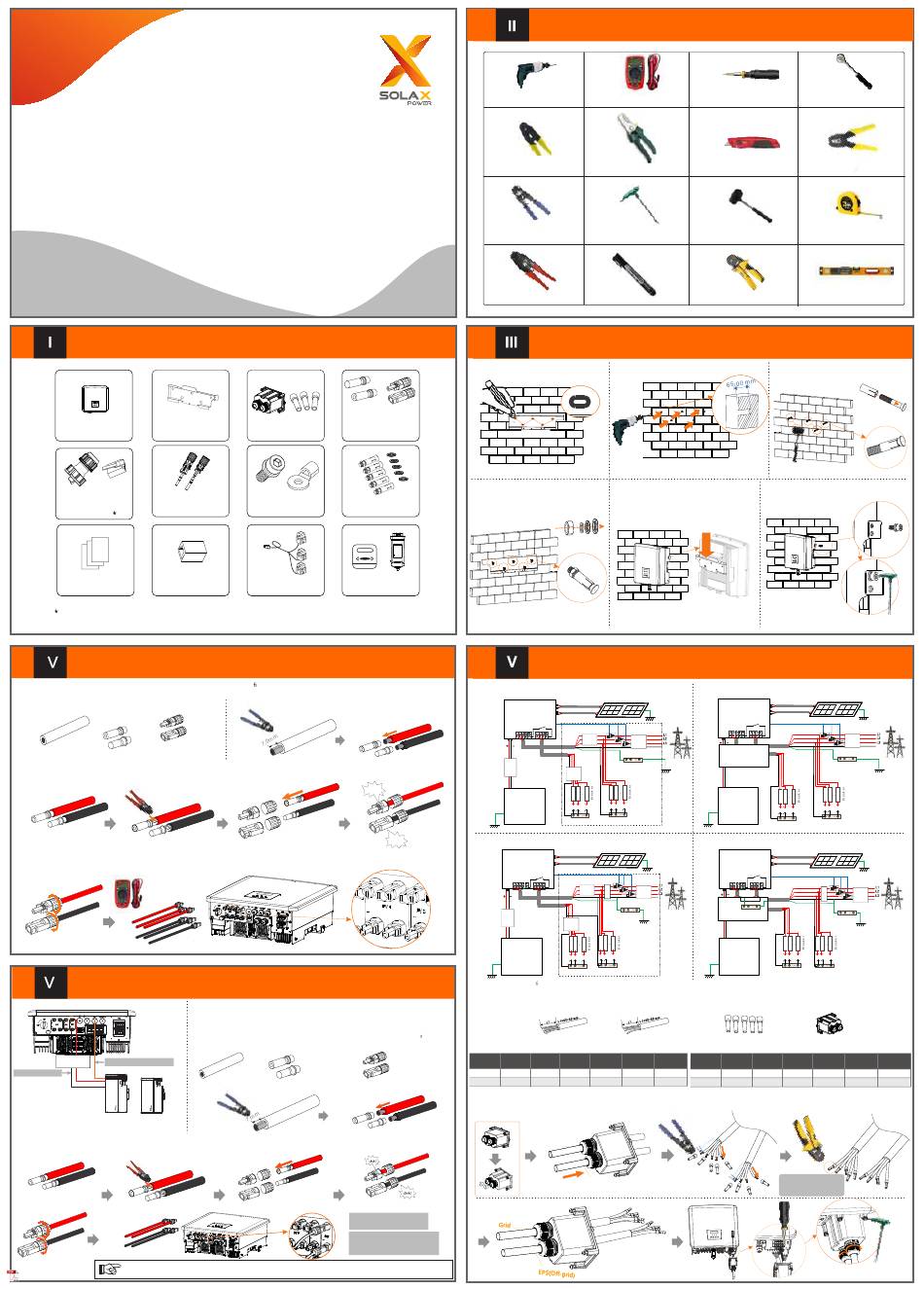

SolaX Power X3 Quick Installation Manual

Quick Installation Guide
X3-Hybrid 5.0KW-15.0KW
Packing List

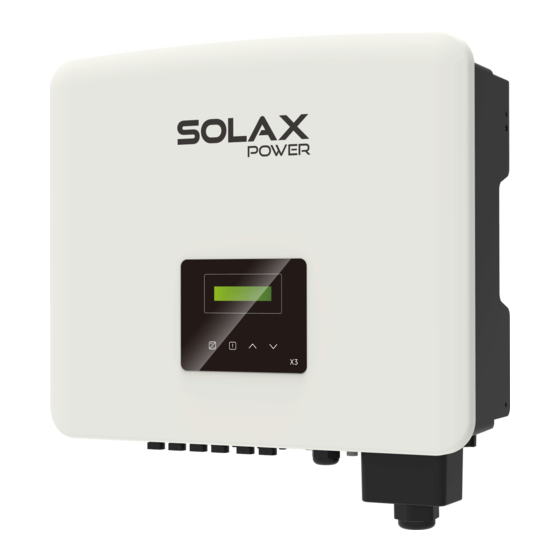

The inverter
Wall-mount Bracket
Communication line
RJ 45 adapter*3 Battery connection
(Meter/COM/BMS)
terminal
☆
RJ45 terminals*6
RJ 45 Terminal
Documentations
adapter*1
Note: "
☆ "attachments are not included in the M series inverter attachment package and will be included in the X3-Matebox.
" " the inverter in Australia needs to be connected to DRM, which is 1 more communication line adapter than that in other countries.
☆
The number of "D" and "E" are different for different power sections. For 5-6kW inverters, the number of positive and negative PV terminal and PV pin angle
is 2, 2, 2 and 2 respectively. For 8- 15kW inverters, the number of positive and negative PV terminal and PV pin angle is 3, 3, 3 and 3 respectively.
I
*The PV port wiring of the M series inverter has been completed. For speci c installation details, please refer to the X3-Matebox Quick
Installation Guide, the D series needs to be wired according to the following steps.
Step 1. Turn off the DC switch, connect the PV module, prepare a
4 mm²
PV cable, and find the PV (+) terminal and PV (-) terminal in
the package.
Positive PV pin
Negtive PV pin
Negative terminal
PV cable
PV pin
Positive terminal
Step 3. The PV connector is divided into 2 parts, to the plug and the fastening head. Pass the cable through the fastening head and the alignment
plug .Note that the red and black lines correspond to different pairs of plugs. Finally, force the cable into the plug and hear a "click" to indicate that
the connection is complete.
Crimping Tool
Positive metal
Negative metal
terminal
terminal
Step 4. Tighten the fastening head and into insert the corresponding positive and negative (PV-/PV+) ports of the inverter.
Note: Before inserting the PV terminal, please turn on the switch of the PV module, and use a multimeter to measure the positive and
negative poles of the PV terminal port to prevent reverse connection.
Multimeter

DC Voltage
Range ≥1100 V DC
Positive
PV1+
Pv1+
PV 2+
Negative
PV1-
PV1-
PV 2-
Battery Connection
I
Battery connection diagram:
com
Upgrade/Dongle
EPS(EPS)
Non-polar
Communication line connection
DC MCB
CAN/RS485
Power line connection
+
-
... ...
Note:
When using the battery, it is
recommended to use the number of
battery control (T-BAT-5.8) is 1,
High voltage lithium battery
the number of battery modules (HV11550) is 1-3; the number of battery control
(MC0600) is 1, the number of battery modules (HV10230) is 2-4.
Step 3. The BAT joint is divided into 2 parts, to the plug and the fastening head. Pass the cable through the fastening head and the
alignment plug. Note that the red and black lines correspond to different pairs of plugs. Finally, force the cable into the plug and hear a
"click" to indicate that the connection is completed.
Crimping Tool
Negative metal
Positive metal
terminal
terminal
Step 4. Tighten the fastening head and insert into the corresponding positive and negative (BAT-/BAT+) parts of the inverter.
Positive
PV1+
PV2+
PV1- PV2-
Negative
Notice!
After the BMS communication between the battery and the inverter is finished, the battery will work normally.
(
☆ positive*2/3 , negative*2/3
Waterproof shield*1
6 mm² Euopean
☆ (positive*2/3 , negative*2/3)
terminals
*12
M5 inner hexagon bolt*1
(Expansion bolt ,Gasket,
☆
OT terminal*1
*2 Self-tapping bolt)*5
Meter(optional) 1
CT*1
Pocket WiFi 1
PV Connection
Step 2. Use a wire stripper to strip the 7mm insulation layer of the wire
end.
Wire stripper
Positive PV pin
Positive terminal
Negative terminal
Battery port connection line of the M series inverter is on the X3-Matebox,for
specific installation details, please refer to the X3-Matebox Quick Installation
Guide It is necessary to wire the D series according to the following steps.
Step 1. Turn off the DC switch, connect the BAT module, prepare a 6 mm BAT
cable, and find the BAT (+) terminal and BAT (-) terminal in the package.
Positive BAT pin
BAT cable Negative BAT pin
Step 2. Use a wire stripper to strip the 7 mm insulation layer of the wire end.
Positive BAT pin
Wire stripper
Positive terminal
Negative terminal
Note: BAT port (Blue one)
not PV port(Black one)
Note: The positive and negative
wires of the battery are not
allowed to be reversed!
Hammer drill（Bit Φ8)
OT terminals press clamp
(0.5~6mm²)
Diagonal pliers
Crimping Tool
a ) Use a marker to mark drilling holes of the
bracket on the wall.
PV pin angle
☆
☆
)
PV terminal
☆
☆
a)
d ) The bracket is aligned with the screw uses
the inner hexagonal wrench to screw the
tapping screw until the expansion bolt
"bang" is heard.
*
*
d)
Diagram A: N line and PE line separate wiring , D series inverter ;
(For most countries)
Inverter
BAT Grid
Negtive PV pin
Breaker
Click !
Battery
Diagram C: N line and PE line together, D series inverter;
Click !
( Applicable to Australia)
Inverter
BAT Grid
Breaker
Battery
Note: The RCD on the gure represents a leakage protection device with a circuit breaker function.
* The Grid and the EPS (Off-grid) ports of the M series inverter have been connected, for specific installation details, please refer to the X3-
Matebox Quick Installation Guide .and the D series needs to be wired according to the following steps.
Step 1. Prepare a Grid cable (five-core wire) and an EPS(Off-grid) cable (four-core wire), and then find the European terminal and waterproof cover
in the accessory bag.
6 mm² Grid(five-core wire)
Grid Cable and Micro-breaker recommended
X3-Hybrid-5.0-D X3-Hybrid-6.0-D
Model
X3-Hybrid-5.0-M X3-Hybrid-6.0-M
Positive terminal
4~6mm² 4~6mm²
Negative terminal Cable (copper)
Micro-Breaker 20A
Step 2: First remove the waterproof housing plug, The GRID and EPS(Off-grid) cables go through the corresponding GRID and EPS(Off-grid) ports of
the waterproof cover. Remove the 12mm insulation layer at the end of the wire. Insert the European-style terminals respectively, and make sure
that the stripped ends are inserted into the European-style terminal, and use crimping pliers to press tightly. And locked in the Grid and EPS(Off-
grid) ports respectively. Finally, lock the waterproof cover screw.
Negtive BAT pin
Tool Preparation
Multimeter
Torque screwdriver
DC Voltage range ≥1100 V DC
Diagonal plier
Hexagon keys
Euro terminal crimping tool
Marker
Mounting Steps
b) Drill holes at marked spots with depth of 65 mm.
8 Hammer
Φ
drill
e) Hang the buckle on the inverter to the
corresponding position of the backplane.
nut, Gasket,
e)
Grid and EPS(Off-grid) Connection
Diagram B: N line and PE line separate wiring, M series inverter ;
(For most countries)
PV 1
PV 2
CT
Breaker Main Breaker/RCD
CT-R
EPS(Off-grid) CT-S
CT-T
N
Grid
E-BAR
RCD
Distribution Box
Loads
EPS(Off-grid) loads
N-BAR for EPS(Off-grid) loads
N-BAR for loads
Diagram D: N line and PE line together, M series inverter;
( Applicable to Australia)
PV 1
PV 2
CT
Breaker RCD CT-R
Main Breaker
CT-S
EPS(Off-grid)
CT-T
N
N
Grid
E-BAR
RCD
Distribution Box
Loads
EPS(Off-grid) loads
N-BAR for EPS(Off-grid) loads N-BAR for loads
6 mm² EPS(Off-grid)((four-core wire)
6 mm² Euro Terminal*10
X3-Hybrid-8.0-D X3-Hybrid-10.0-D X3-Hybrid-12.0-D X3-Hybrid-15.0-D
Model
X3-Hybrid-8.0-M X3-Hybrid-10.0-M X3-Hybrid-12.0-M X3-Hybrid-15.0-M
4~6mm² 5~6mm² 5~6mm² 5~6mm²
Cable (copper)
40A 40A 40A
20A 32A Micro-Breaker
Crimping Tool
Grid
EPS(Off-grid)
(Crosshead M5) Socket wrench set (Hexagon)
Multifunction terminal crimping
Utility knife
tool (RJ45)
Tape measure
Rubber hammer
Spirit level
c) Insert expansion bolt into the hole, use
rubber hammer to knock the expansion
screw bolt into the wall.
Expansion bolts,
Tapping screws,
Hammer
c)
f ) Use the inner hexagonal wrench to tighten
the inner hexagonal screw on the right side of
the inverter.
f )
Inner hexagonal wrench
N·m
(Torque :1.2±0.1 )
PV 1
PV 2
Inverter
CT
Main Breaker/RCD
CT-R
BAT Grid EPS(Off-grid)(Off-grid)
CT-S
CT-T
N
X3-Matebox
Grid
E-BAR
Battery
Loads
EPS(Off-grid) loads
N-BAR for EPS(Off-grid) loads N-BAR for loads
PV 1
PV 2
Inverter
CT
CT-R
RCD
Main Breaker
BAT Grid EPS(Off-grid) CT-S
CT-T
N
N
E-BAR
X3-Matebox
Grid
E-BAR
Battery
EPS(Off-grid) loads Loads
N-BAR for EPS(Off-grid) loads N-BAR for loads
Waterproof cover
EPS(Off-grid) Cable and Micro-breaker recommended
X3-Hybrid-5.0-D X3-Hybrid-6.0-D X3-Hybrid-8.0-D X3-Hybrid-10.0-D X3-Hybrid-12.0-D X3-Hybrid-15.0-D
X3-Hybrid-5.0-M X3-Hybrid-6.0-M X3-Hybrid-8.0-M X3-Hybrid-10.0-M X3-Hybrid-12.0-M
X3-Hybrid-15.0-M
4~6mm² 4~6mm² 4~6mm² 4~6mm² 4~6mm² 4~6mm²
16A 25A 32A 32A
16A 20A
Diagonal pliers
※Note: Please press
European terminal into
a 3.3.*3.3mm square.
Torque screwdriver
( Torque: 0.7±0.1N·m)
Hexagon keys
( Torque: 1.2±0.2N·m)
