Summary of Contents for x-sense XS03-iWX

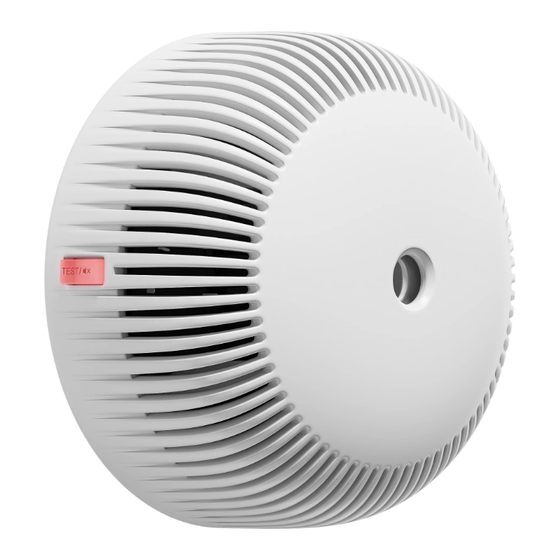

- Page 1 User Manual ProConnected Smoke Alarm Model: XS03-iWX...
-
Page 2: What's In The Box
The X-Sense XS03-iWX smoke alarm monitors for smoke concentration and can beinterconnected with other devices of the same type (XS03-iWX). It needs to be paired with the X-Sense SBS10 base station because the smoke alarm and base station will both alarm once triggered. -
Page 3: Safety Information
Device Setup Sign In Scan the QR code below or search for X-Sense Home Security in the Apple App Store or Google Play Store to download the app. Sign in with a valid email address. If you already have an account,... - Page 4 Add a Smoke Alarm Before adding this smoke alarm, make sure: You have a stable, uninterrupted 2.4 GHz Wi-Fi network. If your router supports a dual-band network with both 2.4 GHz and 5 GHz, please create separate SSIDs for the two channels. The base station is only compatible with the 2.4 GHz channel.
- Page 5 Note: The LED indicator has been combined with the Test/Silence button on the device. When you press the Test/Silence button, note that your finger could cover the button so that you may not be able to see the indicator light.
- Page 6 Set Up a Smoke Alarm Once you add the smoke alarm to the system, you will need to set it up within the app by naming the device, selecting the room in which it is installed, and enabling notifications from the app. Device Self-Check Tap Self-Check in the app so the device performs a self-test of its electronics and circuits.
-
Page 7: Location And Installation
Location and Installation Fire Safety Layout Follow the example diagram below or design your own layout to create a home fire safety system. Note that the base station needs to be placed in the center of the house so all devices stay well within its range. - Page 8 Installation Positioning Prioritize the installation of an alarm in bedrooms and walkways, and make sure you can hear the alarm from all sleeping areas. In homes with multiple bedrooms, install an alarm in every bedroom. If you only install one smoke alarm in your home, install it close to all bedrooms where possible, and not in a basement or furnace room.
- Page 9 Note: For smoke alarms installed in a kitchen, ensure you are able to access the Silence button, and place it at least 5 feet (1.5 m) away from potential smoke or fume sources, such as cooktops and ovens. Placement on the Ceiling or Wall It is highly recommended that you install the alarm centered on the ceiling, as this enables the alarm to detect the first traces of smoke when smoke rises.
- Page 10 Installation Before installation, test the device to make sure it is functioning properly within the router’s range, then install the smoke alarm as follows: 1. Mark holes on the ceiling or wall using the mounting bracket as a guide. 2. Drill holes at the two marked positions with a drill bit. Insert the anchor plugs, then attach the mounting bracket using the provided screws.
- Page 11 Operating Instructions This alarm will inform you of any unusual conditions or emergencies using the colored LED indicator along with beeping patterns. What to Do When an Alarm Sounds If the ProConnected Smoke Alarm is the initiating alarm that is triggered, the base station will alarm, and you will see and hear: Initiating Alarm LED Indicator...
- Page 12 10. Contact your Fire Department for ideas on making your home safer. Using the Silence Function Tap Silence in the app to temporarily silence the base station and all interconnected devices. However, during an alarm, the initiating alarm will keep sounding. To silence this alarm, tap Silence on its Device Settings interface.
-
Page 13: Technical Specifications
≥ 85 dB at 10 ft (3 m) @ 3.2 ± 0.3 kHz pulsing Alarm Volume alarm Silence Duration About 9 minutes Operating Frequency 914.8 MHz X-Sense Home Security (both Android and iOS supported), works with X-Sense base station SBS10... -
Page 14: General Maintenance
Maintenance General Maintenance Follow the steps listed below for optimum long-term performance: Test the device once a week by pressing the Test/Silence button, ensuring the device functions properly. Note that this only tests the electronics in your alarm rather than for smoke. -
Page 15: Troubleshooting
Troubleshooting Description Problem Solution Check the battery. The device will not Dead batteries or Firmly press the Test/Silence button. self-test when following improper the in-app instructions. operation False alarms are triggered Improper Avoid placing alarms near cooking when cooking or taking a installation appliances, dusty areas, showers, or any... -
Page 16: Fcc Statement
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with local authorities or retailers for recycling advice. Manufacturer and Service Information X-Sense Innovations Co., Ltd. Address: B4-503, Kexing Science Park, 15 Keyuan Road, Shenzhen, 518057, CHINA Email: support@x-sense.com...
