X-Sense

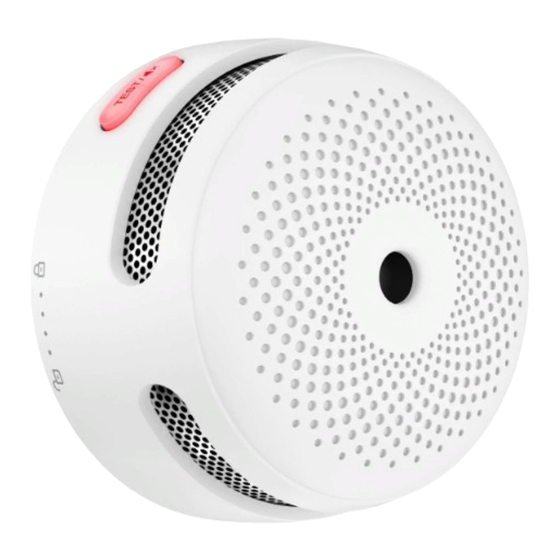

Wireless Interlinked Smoke Alarm
XS01-WR
User Manual
This user manual contains important information regarding the operation of your X-SENSE smoke
alarm. Ensure you read this user manual fully before installing and operating the alarm. If you are
installing this smoke alarm for use by others, you must leave this manual (or a copy of it) with the end
user.
Package Contents
1 × Alarm Unit
1 × Mounting Bracket
2 × Screws
2 × Anchor Plugs
1 × User Manual
Safety Information
IMPORTANT!
1.
DANGERS, WARNINGS, AND CAUTIONS ALERT YOU TO IMPORTANT OPERATING
INSTRUCTIONS OR TO POTENTIALLY HAZARDOUS SITUATIONS. PAY SPECIAL
ATTENTION TO THESE SITUATIONS.
2.
THIS ALARM IS NOT INTENDED TO ALERT HEARING IMPAIRED INDIVIDUALS. THE
USE OF ALCOHOL OR DRUGS MAY ALSO IMPAIR ONE'S ABILITY TO HEAR THE
SMOKE ALARM.
3.
FIRES IN CHIMNEYS, WALLS, ROOFS, DIFFERENT LEVELS OR BEHIND CLOSED
DOORS MIGHT NOT BE DETECTED.
4.
THIS DEVICE DOES NOT DETECT FLAMES, HEAT, CARBON MONOXIDE OR OTHER
HAZARDOUS GASES.
WARNING!
Advertisement
Table of Contents
Related Manuals for x-sense XS01-WR
Summary of Contents for x-sense XS01-WR
- Page 1 XS01-WR User Manual This user manual contains important information regarding the operation of your X-SENSE smoke alarm. Ensure you read this user manual fully before installing and operating the alarm. If you are installing this smoke alarm for use by others, you must leave this manual (or a copy of it) with the end user.
- Page 2 When one unit is triggered, all interconnected units will sound an alarm. The XS01-WR wireless smoke alarms in one multi-pack have already been interconnected. The alarms in each multi-pack have their own independent interlinked network.
-
Page 3: How To Disconnect
Test all your wireless smoke alarms to ensure that they are interconnected before installation. A maximum of 24 wireless smoke alarms can be interconnected. Note that the XS01-WR alarm can only be interconnected with other X-Sense wireless alarms. How to Disconnect Press the test/silence button4 times and the smoke alarm will beep once, then hold down the button until it beeps once to disconnect. -
Page 4: Alarm Test
Alarm Test The alarm must be properly attached to the mounting bracket before it can be tested. If your XS01-WR is interconnected to other wireless smoke alarms, we recommend that every individual smoke alarm is tested during the weekly test. -
Page 5: Installation Positioning
Installation Positioning Prioritize the installation of an alarm in the bedroom and walkways, and make sure you can hear the alarm from all sleeping areas. In a home with several bedrooms, install an alarm in every bedroom. If you install only one smoke alarm in your home, install the alarm near to all bedrooms where possible, and not in a basement or furnace room. - Page 6 If the length of a room or hall is beyond 30 feet (900 cm), several alarms should be installed in the same space. When the wall or ceiling is angled, the alarm needs to be installed within 3 feet (90 cm) of the highest wall or ceiling point (measured horizontally) in the room.
-
Page 7: Installation Method
Locations to Avoid: Near large metal surfaces and/or bundles of wire. Near fluorescent lights, amateur radios, electrical equipment, or other devices that may transmit an RF signal, as electronic “noise” may cause nuisance alarms. WARNING! THIS ALARM SHOULD BE INSTALLED BY A COMPETENT PERSON. ALARMS SHOULD NOT BE USED AS A SUBSTITUTE FOR PROPER INSTALLATION, USE AND MAINTENANCE OF FUEL BURNING APPLIANCES INCLUDING APPROPRIATE VENTILATION AND EXHAUST SYSTEMS. -
Page 8: Battery Replacement
Drill holes at the two marks using an appropriately-sized drill bit. Insert the anchor plugs and screw the mounting bracket using the screws provided. Attach the alarm to the mounting bracket and turn clockwise to lock the alarm. Test the smoke alarm according to the steps in the section“Alarm Test”. NOTE: Before installation, it is recommended to test the interconnected smoke alarms in different rooms where you intend to install these alarms to ensure that they are within the transmission range. - Page 9 LED Indicator and Audible alarm Status LED indicator Audible alarm Action Normal Red LED flashes None once every 60 seconds. Red LED flashes Short quick once every beeps Alarm second. Single Smoke Alarm Red LED flashes 3 short quick Press the beeps once every test/silence...
-
Page 10: Silence Mode
warning. Malfunction Red LED flashes 2 beeps every Each alarm twice every 40 40 seconds gives an seconds. independent warning. Silence Mode If you press the silence button during an alarm state, the unit will be in the silence mode for 9 minutes. During the silence mode, the red LED will flash once every 5 seconds. -
Page 11: Maintenance
About 9 minutes Operating Frequency 915.275 MHz Transmission Power 18 dBm 24 wireless units (only compatible with X-Sense wireless alarms) Maximum Number of Interconnected Units Transmission Range Over 250 m in open air Note: Battery life is calculated based on the current rating in the weekly testing mode andthe standby mode. -
Page 12: Troubleshooting
Troubleshooting PROBLEM SOLUTION Your smoke alarm does not sound Please check whether the alarm is properly attached to the during testing. mounting bracket. Make sure you push the central test button firmly. Check the installation positioning. The wireless signal ... - Page 13 Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with Local Authority or retailer for recycling advice. Manufacturer and Service Information X-Sense Innovations Co., Ltd. Address: B4-503-D, Tower B, Kexing Science Park, No. 15 KeyuanRoad, Technology Park Community, Yuehai Avenue, Nanshan District,Shenzhen, 518057, CHINA...
