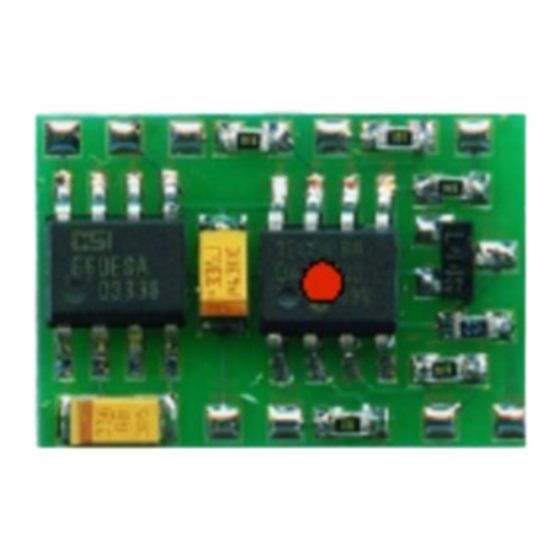

- Page 1 FCS-2 Fahrzeugmodul für Faller* Car-System Anleitung Vehicle module compatible to the Faller* Car-System Manual Mode d´emploi Module pour véhicule du Faller* Car-System Handleiding Voertuigmodule voor het Faller* Car System Art.-Nr. 22-01-071-2...
- Page 2 © 07/2005 Tams Elektronik GmbH Alle Rechte, insbesondere das Recht der Vervielfältigung und Verbreitung sowie der Übersetzung vorbehalten. Vervielfältigungen und Reproduktionen jeglicher Form bedürfen schriftlichen Genehmigung durch die Tams Elektronik GmbH. Deutsch Technische Änderungen vorbehalten. English © 07/2005 Tams Elektronik GmbH All rights reserved.
-
Page 3: Table Of Contents
Technical specifications / Circuit Diagram(Fig. 1) Checking the package contents Required tools and materials Safe and correct soldering Special features of the additional components Mounting the FCS-2 Manufacturer's note Certification Conditional warranty Connections (Fig. 2) (Page II in the centre of this handbook is removeable.) -
Page 4: Intended Use
English FCS-2 Intended use Caution: Integrated circuits are very sensitive to static electricity. Do not touch components without first discharging yourself. Touching a radiator or other grounded metal part will discharge you. The module can be used according to the specifications of this manual in a vehicle compatible to the Faller* Car-System. - Page 5 FCS-2 English § Only use low power for this module as described in this manual and only use certified transformers. § Connect soldering irons only in approved mains sockets installed by an authorised electrician. § Observe cable diameter requirements. §...
-
Page 6: Emc Declaration
English FCS-2 Other dangers Children can cause any of the accidents mentioned above because they are inattentive and not responsible enough. Children under the age of 14 should not be allowed to work with this module. Little children can swallow small components with sharp edges, with fatal results! Do not allow components to reach small children. -
Page 7: Summary Of Operation
FCS-2 English Summary of operation The module is particularly designed for the use in vehicles compatible to the Faller* car system, that are run with two accumulator batteries. It has six in- and outputs for the connection of LEDs, motor, reed contacts and a Dim switch. -
Page 8: Technical Specifications / Circuit Diagram(Fig. 1)
English FCS-2 Technical specifications Supply voltage 2 to 3 Volt D.C. Current consumption (without connected loads) approx. 4 mA Max. total current 80 mA Max. current per output 20 mA Protected to IP 00 Ambient temperature in use 0 - + 60 °C Ambient temperature in storage -10 - + 80 °C... -
Page 9: Checking The Package Contents
FCS-2 English Checking the package contents Check the contents of the package for completeness after unpacking: § one module, § additional components: two resistors 10 Ω, one resistor 10 kΩ, one light sensitive resistor, one diode 1N4148, one transistor BC 327, one reed contact, one Dim switch DS-1, §... -
Page 10: Special Features Of The Additional Components
English FCS-2 § When soldering electronic circuits never use soldering-water or soldering grease. They contain acids that can corrode components and copper tracks. § Solder quickly: holding the iron on the joints longer than necessary can destroy components and can damage copper tracks or soldering eyes. - Page 11 FCS-2 English Light sensitive resistors Light sensitive resistors change their value depending on the ambient lighting. As a rule types are used which value decrease with increasing light intensity. Their mounting orientation is of no importance. Diodes Diodes allow the current to pass through in one direction only (forward direction).
-
Page 12: Mounting The Fcs-2
Sealed in the glass bulb are two or three reeds made of a magnetic material. When bending the legs the glass bulb they can be easily damaged through mechanical strain. Mounting the FCS-2 Preparation Open the housing of the vehicle. Locate the position for the module. - Page 13 FCS-2 English Caution: The module should not be connected the wrong way round. Otherwise it will be destroyed when put into operation. Connection of the existing reed contact The existing reed contact has three connecting points, one at side A and two at side B.
- Page 14 English FCS-2 Connection of the motor Connect the enclosed diode 1N4148 to the connections of the motor. Observe the polarity of the diode. Then connect the minus pole of the motor to the minus pole of the accumulator batteries. Next connect the...
-
Page 15: Faq
FCS-2 English § Parts are getting very hot and/or start to smoke. Disconnect the system from the mains immediately! Possible cause: The connections to the power supply are connected the wrong round. à Check the connection. In this case the module is probably damaged irreparably. -
Page 16: Conditional Warranty
English FCS-2 Conditions of warranty This product is guaranteed for two years. The warranty includes the correction of faults which can be proved to be due to material failure or factory flaw. We guarantee the function of the parts according to the... - Page 17 English FCS-2 Fig. 2: Connections Page II.1...
- Page 18 FCS-2 English Connection Table Connection to „-” of the accumulator batteries Connection to „+”of the accumulator batteries Voltage output (-) of the circuit Front lighting Light sensitive switch Braking and reversing lights Motor control Existing reed contact Secondary reed contact...
- Page 19 Actuele informatie en tips: http://www.tams-online.de Garantie und Service: Warranty and service: Garantie et service: Garantie en service: Tams Elektronik GmbH Rupsteinstraße 10 D-30625 Hannover fon: +49 (0)511 / 55 60 60 fax: +49 (0)511 / 55 61 61 e-mail: modellbahn@tams-online.de...
