tams elektronik FCS-4 Manual

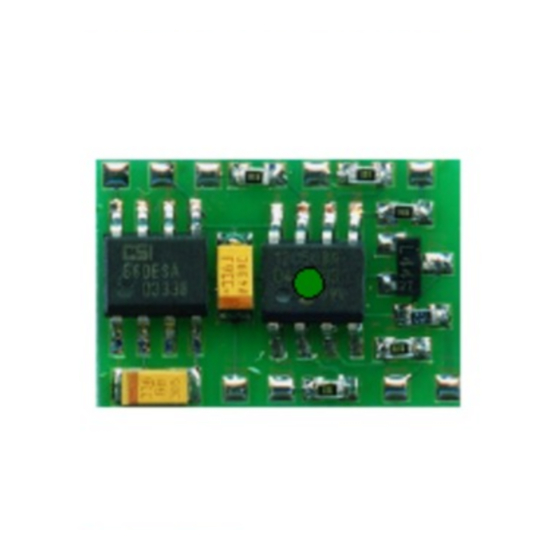

Emergency vehicle module compatible to the faller car-system
Hide thumbs Also See for FCS-4:
Table of Contents

Advertisement

Quick Links

Download this manual
Einsatzfahrzeug-Modul
für Faller* Car-System
Emergency vehicle module
compatible to the
Faller* Car-System
Module pour véhicule
du Faller* Car-System
hulpverleningsvoertuigen
voor het Faller* Car System
FCS-4
d'intervention
Module voor
Art.-Nr. 22-01-071-4
n
n
n
n
n
n
n
n
Anleitung
n
Manual
n
Mode d´emploi
n
Handleiding
n
n
n
n
n

Advertisement

Table of Contents
loading

Related Manuals for tams elektronik FCS-4

Summary of Contents for tams elektronik FCS-4

  • Page 1 FCS-4 Einsatzfahrzeug-Modul für Faller* Car-System Emergency vehicle module compatible to the Anleitung Faller* Car-System Module pour véhicule Manual d'intervention Mode d´emploi du Faller* Car-System Module voor Handleiding hulpverleningsvoertuigen voor het Faller* Car System Art.-Nr. 22-01-071-4...
  • Page 2 © 07/2005 Tams Elektronik GmbH Alle Rechte, insbesondere das Recht der Vervielfältigung und Verbreitung sowie der Übersetzung vorbehalten. Vervielfältigungen und Reproduktionen jeglicher Form bedürfen schriftlichen Genehmigung durch die Tams Elektronik GmbH. Deutsch Technische Änderungen vorbehalten. English © 07/2005 Tams Elektronik GmbH All rights reserved.

  • Page 3: Table Of Contents

    Technical specifications / Circuit Diagram(Fig. 1) Checking the package contents Required tools and materials Safe and correct soldering Special features of the additional components Mounting the FCS-4 Manufacturer's note Certification Conditional warranty Connections (Fig. 2) (Page II in the centre of this handbook is removeable.)

  • Page 4: Intended Use

    English FCS-4 Intended use Caution: Integrated circuits are very sensitive to static electricity. Do not touch components without first discharging yourself. Touching a radiator or other grounded metal part will discharge you. The module can be used according to the specifications of this manual in a vehicle compatible to the Faller* Car-System.
  • Page 5 FCS-4 English § Mounting the module should only be done in closed, clean, dry rooms. Beware of humidity. § Only use low power for this module as described in this manual and only use certified transformers. § Connect soldering irons only in approved mains sockets installed by an authorised electrician.

  • Page 6: Emc Declaration

    English FCS-4 Other dangers Children can cause any of the accidents mentioned above because they are inattentive and not responsible enough. Children under the age of 14 should not be allowed to work with this module. Little children can swallow small components with sharp edges, with fatal results! Do not allow components to reach small children.
  • Page 7 FCS-4 English which normally need a voltage of more than 2,4 V. Red and yellow LEDs may be connected directly via series resistors to the accumulator batteries, provided they are not to be controlled by the software. Front lighting There can be connected up to two additional white LEDs for the front lighting to the additional output.

  • Page 8: Technical Specifications / Circuit Diagram(Fig. 1)

    English FCS-4 Technical specifications Supply voltage 2 to 3 Volt D.C. Current consumption (without connected loads) approx. 4 mA Max. total current 80 mA Max. current per output 20 mA Protected to IP 00 Ambient temperature in use 0 - + 60 °C Ambient temperature in storage -10 - + 80 °C...

  • Page 9: Required Tools And Materials

    FCS-4 English Required tools and materials Make sure you have the following tools and materials ready for use: § an electronic soldering iron (max. 30 Watt) with a fine tip, § a soldering iron stand, § a tip-cleaning sponge and a heat-resistant mat, §...

  • Page 10: Special Features Of The Additional Components

    English FCS-4 away. Hold the soldering tip at the spot for a few seconds so that the solder flows into the joint, then remove the soldering iron. § The joint should be held still for about 5 seconds after soldering.

  • Page 11: Mounting The Fcs-4

    Sealed in the glass bulb are two or three reeds made of a magnetic material. When bending the legs the glass bulb they can be easily damaged through mechanical strain. Mounting the FCS-4 Preparation Open the housing of the vehicle. Locate the position for the module.
  • Page 12 English FCS-4 Connection to the supply voltage Connect the connecting point X2 to the plus pole of the accumulator batteries and the minus pole of the accumulator batteries to the existing switch S of the vehicle. Connect the second pole of the switch to the connecting point X1.
  • Page 13 FCS-4 English Connection of the LEDs for the flashing lights Connect the anodes (+) of the two LEDs for the flashing lights to the connecting points X4 and X5. Connect the cathodes (-) of the LEDs both to the connecting point X3.

  • Page 14: Faq

    English FCS-4 Computation of the series resistors for the front light LEDs In order to spare the accumulator batteries it is recommended to restrict the input of the LEDs for the front lighting to approx. 10 mA. This guarantees as well a sufficient brightness. In this case you can...

  • Page 15: Manufacturer's Note

    FCS-4 English Possible cause: The vehicle halts at a stop. This is no a fault. The siren is switched off while the vehicle is halting. § The vehicle does not drive. Possible cause: The wrong connecting point at side B of the existing reed contact was used.
  • Page 16 English FCS-4 § using an unsuitable soldering iron, solder containing liquid acids or similar, § if damage is caused by not following the instructions in this manual or the connection diagram(s) § if the module has been altered and repair attempts have failed, §...
  • Page 17 English FCS-4 Fig. 2: Connections Page II.1...
  • Page 18 FCS-4 English Connection Table Connection to „-” of the accumulator batteries Connection to „+”of the accumulator batteries / front lighting Voltage output (-) of the circuit Flashing light 1 Flashing light 2 Siren Motor control Braking and reversing lights Existing reed contact...
  • Page 19 Actuele informatie en tips: http://www.tams-online.de Garantie und Service: Warranty and service: Garantie et service: Garantie en service: Tams Elektronik GmbH Rupsteinstraße 10 D-30625 Hannover fon: +49 (0)511 / 55 60 60 fax: +49 (0)511 / 55 61 61 e-mail: modellbahn@tams-online.de...
