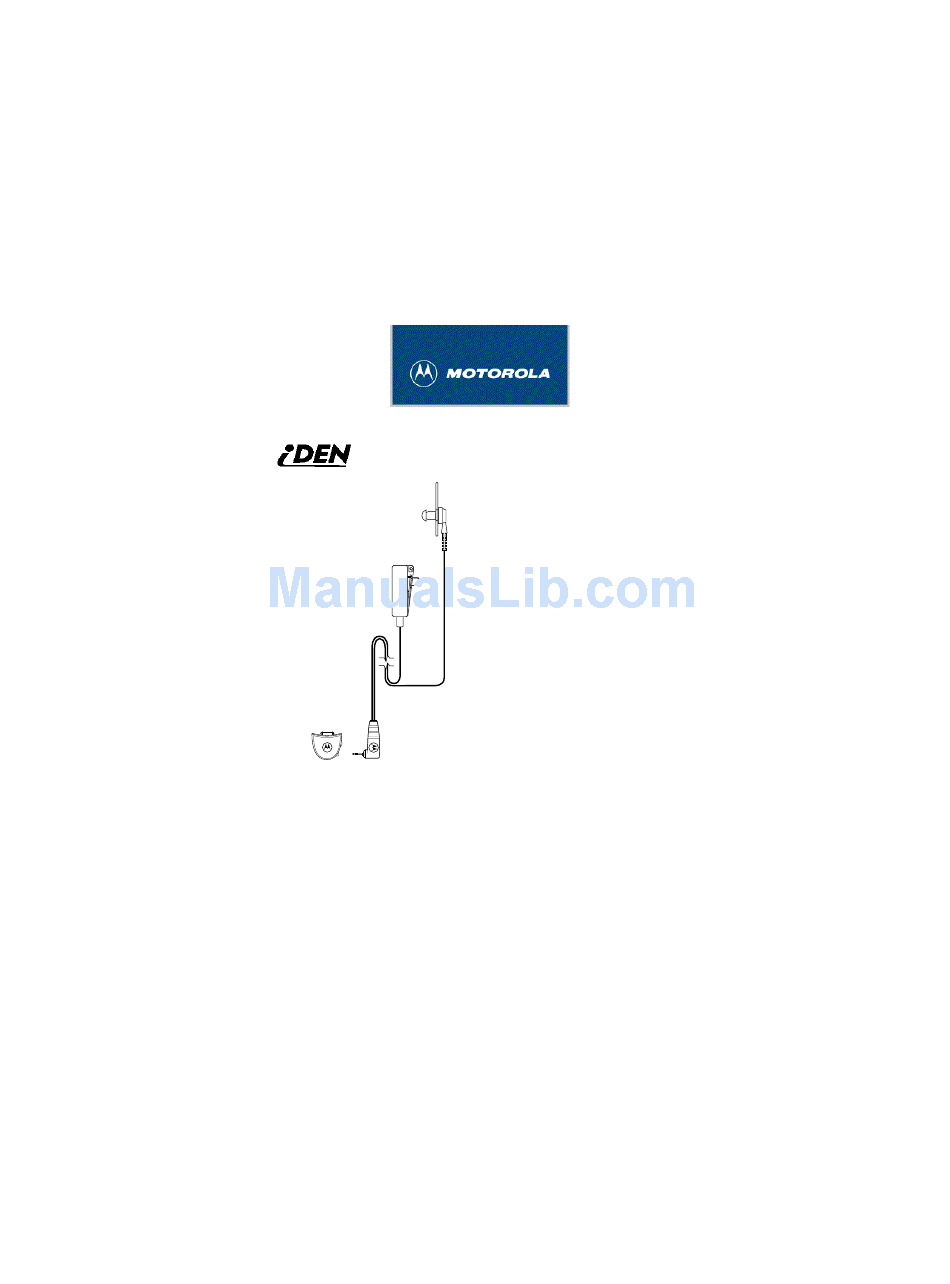

- Page 1 ® NTN9298 Surveillance Kit User’s Guide...
- Page 2 For iDEN models i1000, i2000, and all plus family products.
-
Page 3: Safety And General Information
To maintain optimum signal strength and to ensure compliance with FCC regulations, keep surveillance headset cables at least one inch (1”) from the phone’s antenna at all times. Persons with pacemakers should ALWAYS keep the phone more than six (6”) from the pacemaker when the phone is turned ON. - Page 4 DESCRIPTION The NTN9298 Surveillance Kit consists of a two-wire surveillance headset, with an earpiece and a microphone with a push-to-talk switch, and an adapter to attach the headset to your iDEN portable. This accessory permits concealed and private operation of the iDEN portable.
- Page 5 Release Button Only the 5085665C01 Surveillance headset is compatible with the Surveillance Adapter. Use of any non-Motorola approved headset with the Surveillance Adapter may damage the phone, or cause it to malfunction. Damage caused by using non-Motorola approved accessories may void your warranty.
- Page 6 HEADSET 1. Hold the phone and the Surveillance Adapter facing you so that you can see the Motorola logo on the adapter. 2. Insert the Surveillance Adapter’s connec- tor into the Bottom Accessory Connector. You will hear the connector snap into place.
- Page 7 Flip the earloop from a right ear position to a left ear position. Place the earloop against the earphone. Replace the standard eartip. Model # 50-80370E90 50-80370E92 50-80370E94 09-85664C01 50-85665C01 Description Black standard earpiece assembly (earphone, ear- loop, eartip). Plastic urethane earloop Standard rubber eartip Surveillance Adapter Surveillance Headset...
- Page 8 , Motorola and iDEN are trademarks of Motorola, Inc. ® Reg. U.S. Pat. & Tm. Off. Copyright 2000, Motorola, Inc. Printed in U.S.A., 3/00. All rights reserved. @6881092C04@ 68P81092C04-O...
