Code Alarm CA100 Installation & Operation Manual

REMOTE CONTROL AUTO ALARM SYSTEM
INSTALLATION & OPERATION INSTRUCTIONS
Black Antenna Wire
Valet Switch
MAIN 5 PIN WIRE HARNESS:
1. Red / White Wire: Parking Light Relay Power Input
2. White Wire: Parking Light Relay Output
3. Black Wire: Ground to Vehicle FRAME
4. Brown Wire: Positive output To Siren
5. Red Wire: +12V To Constant Battery Source
6 PIN MINI CONNECTOR WIRE HARNESS:
1. Violet Wire: Positive Door Pin Switch Input
2. Blue Wire: Instant Trigger Ground Input
3. Green Wire: Negative Door Pin Switch Input
4. Pink Wire: To Ignition Switched + 12V
5. Orange Wire: 200mA Grounded when armed
6. Tan Wire: (-) 200mA Programmable Output
Channel 3 / 2 Step Door Unlock.
A. PROGRAMMING TRANSMITTER:
Note: This mode will only retain the last 4 remote transmitters programmed. If the transmitter memory is
exceeded, the security system will start deleting transmitters from memory in chronological order.
1. Turn the Ignition 'switch 'OFF/ON' 3 TIMES and stay in ON position. Within 15 seconds.
2. Push the Valet switch 3 times and holding in on 3rd push until a long chirp is heard then release the valet
switch. You are now in the Transmitter programming mode.
3. Press and hold any button of the transmitter until the siren responds with a confirming chirp, indicating the
signal has been stored into memory.
4. If you have additional transmitters (up to 4) that need to be programmed, repeat step 3 for each transmitter.
CA100
MODEL CA100

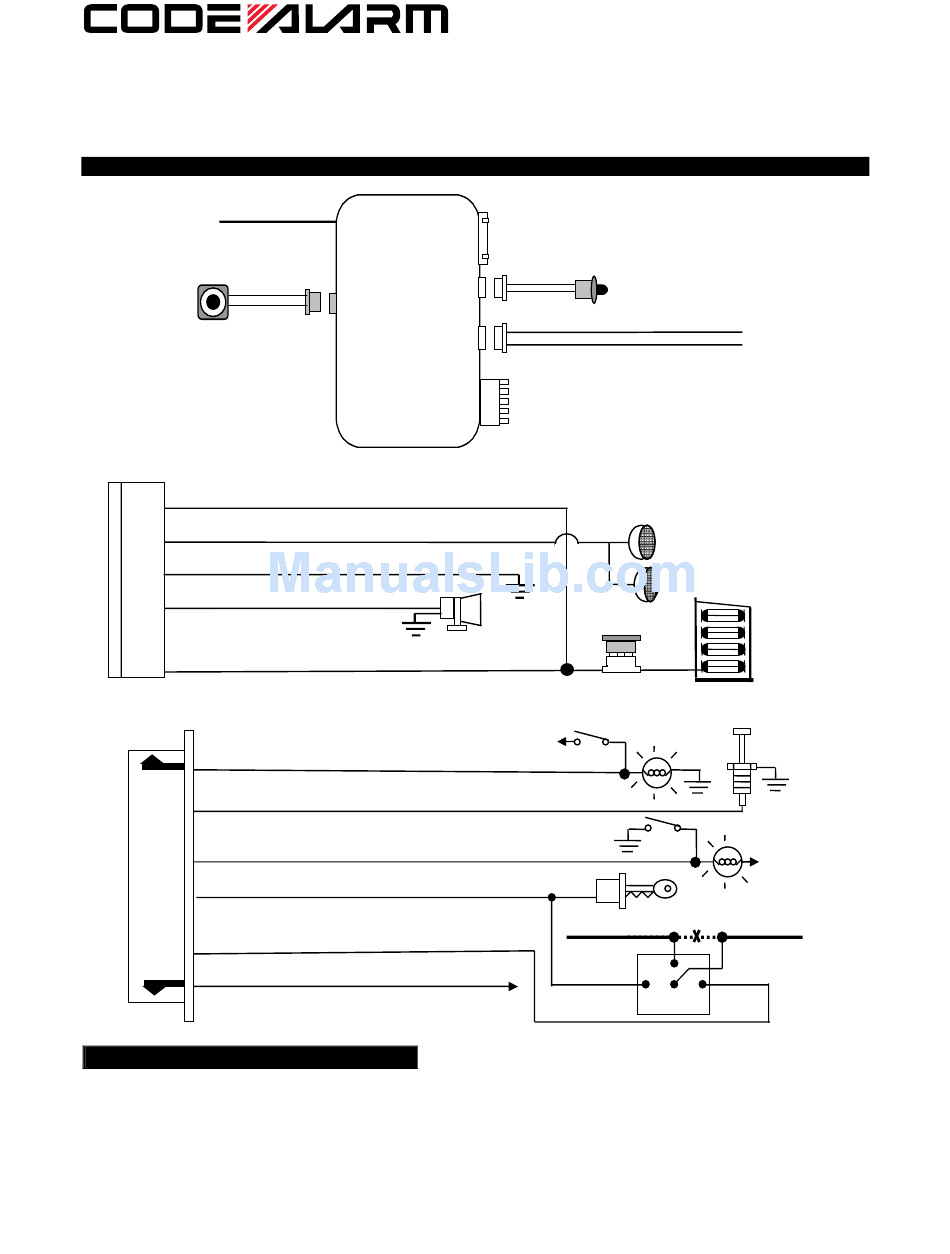

WIRING DIAGRAM
6 Pin White Mini Connector
6 Pin
White
2 Pin
2 Pin
White
Blue
2 Pin
White
5 Pin
Main 5 Pin White harness
White
1
LED Indicator
Blue Wire: (-) 200mA Unlock Pulse
Green Wire: (-) 200mA Lock Pulse
15A Fuse
12V
Cut
From ignition switch
Red wire
30
Yellow wire
85 87a 86
05-04-06
12V
To start solenoid
White wire
Orange
wire
