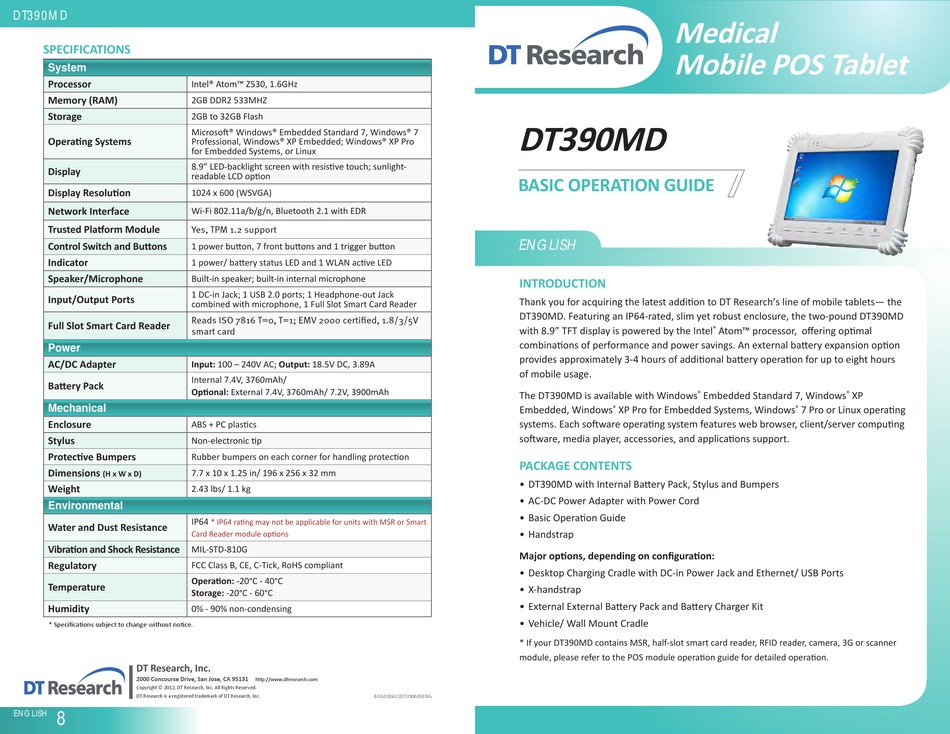

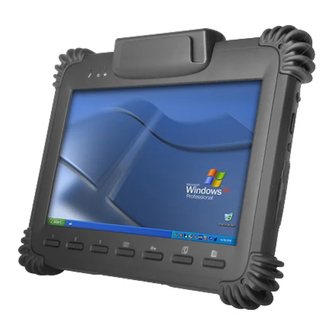

DT Research DT390MD Basic Operation Manual

DT390MD
SPECIFICATIONS
System
Processor
Intel® Atom™ Z530, 1.6GHz
Memory (RAM)
2GB DDR2 533MHZ
Storage
2GB to 32GB Flash
Microsoft® Windows® Embedded Standard 7, Windows® 7
Operating Systems
Professional, Windows® XP Embedded; Windows® XP Pro
for Embedded Systems, or Linux
8.9" LED-backlight screen with resistive touch; sunlight-
Display
readable LCD option
Display Resolution 1024 x 600 (WSVGA)
Network Interface
Wi-Fi 802.11a/b/g/n, Bluetooth 2.1 with EDR
Trusted Platform Module
Yes, TPM 1.2 support
Control Switch and Buttons
1 power button, 7 front buttons and 1 trigger button
Indicator
1 power/ battery status LED and 1 WLAN active LED
Speaker/Microphone Built-in speaker; built-in internal microphone
1 DC-in Jack; 1 USB 2.0 ports; 1 Headphone-out Jack
Input/Output Ports
combined with microphone, 1 Full Slot Smart Card Reader
Reads ISO 7816 T=0, T=1; EMV 2000 certified, 1.8/3/5V
Full Slot Smart Card Reader
smart card
Power
AC/DC Adapter
Input: 100 – 240V AC; Output: 18.5V DC, 3.89A
Internal 7.4V, 3760mAh/
Battery Pack
Optional: External 7.4V, 3760mAh/ 7.2V, 3900mAh
Mechanical
Enclosure
ABS + PC plastics
Stylus
Non-electronic tip
Protective Bumpers
Rubber bumpers on each corner for handling protection
Dimensions 7.7 x 10 x 1.25 in/ 196 x 256 x 32 mm
(H x W x D)
Weight
2.43 lbs/ 1.1 kg
Environmental
IP64
Water and Dust Resistance
Card Reader module options
Vibration and Shock Resistance
MIL-STD-810G
Regulatory
FCC Class B, CE, C-Tick, RoHS compliant
Operation: -20°C - 40°C
Temperature
Storage: -20°C - 60°C
Humidity 0% - 90% non-condensing
* Specifications subject to change without notice.
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131
Copyright © 2012, DT Research, Inc. All Rights Reserved.
DT Research is a registered trademark of DT Research, Inc.
8
ENGLISH signage dtri com
* IP64 rating may not be applicable for units with MSR or Smart
http://www.dtresearch.com
BOG030612DT390MDENG
Medical
Mobile POS Tablet
DT390MD
BASIC OPERATION GUIDE
ENGLISH
INTRODUCTION
Thank you for acquiring the latest addition to DT Research's line of mobile tablets— the
DT390MD. Featuring an IP64-rated, slim yet robust enclosure, the two-pound DT390MD
with 8.9" TFT display is powered by the Intel
combinations of performance and power savings. An external battery expansion option
provides approximately 3-4 hours of additional battery operation for up to eight hours
of mobile usage.
The DT390MD is available with Windows
®
Embedded, Windows ® XP Pro for Embedded Systems, Windows
systems. Each software operating system features web browser, client/server computing
software, media player, accessories, and applications support.
PACKAGE CONTENTS
• DT390MD with Internal Battery Pack, Stylus and Bumpers
• AC-DC Power Adapter with Power Cord
• Basic Operation Guide
• Handstrap
Major options, depending on configuration:
• Desktop Charging Cradle with DC-in Power Jack and Ethernet/ USB Ports
• X-handstrap
• External External Battery Pack and Battery Charger Kit
• Vehicle/ Wall Mount Cradle
* If your DT390MD contains MSR, half-slot smart card reader, RFID reader, camera, 3G or scanner
module, please refer to the POS module operation guide for detailed operation.
Atom™ processor, offering optimal
®
Embedded Standard 7, Windows XP
®
® 7 Pro or Linux operating
