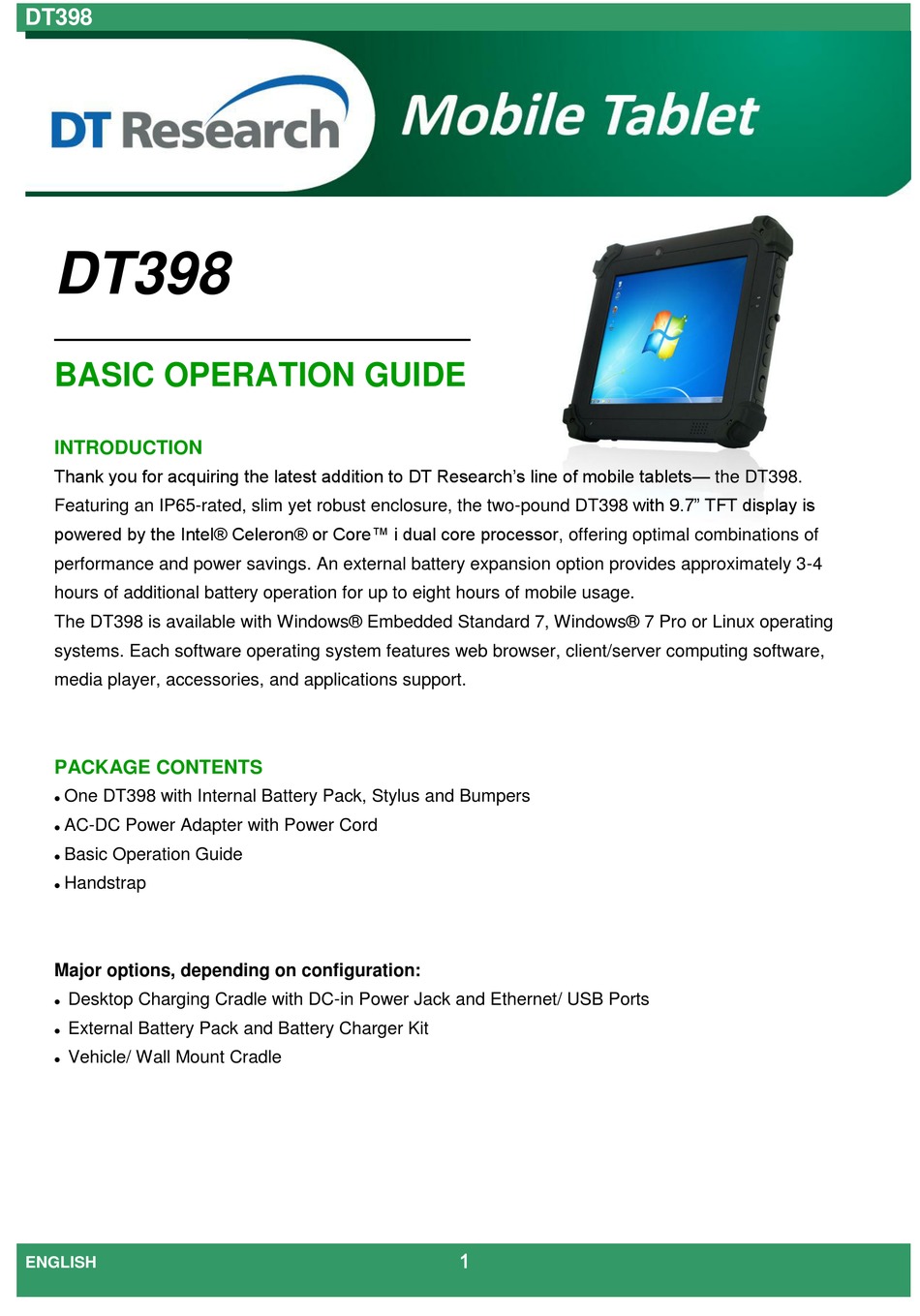

DT398
DT398
BASIC OPERATION GUIDE
INTRODUCTION

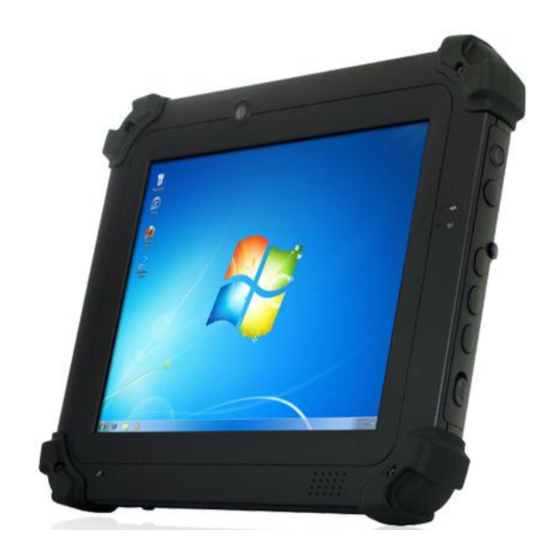

Thank you for acquiring the latest addition to DT Research's line of mobile tablets— the DT398.
Featuring an IP65-rated, slim yet robust enclosure, the two-pound DT398 with 9.7" TFT display is
powered by the Intel® Celeron® or Core™ i dual core processor, offering optimal combinations of
performance and power savings. An external battery expansion option provides approximately 3-4
hours of additional battery operation for up to eight hours of mobile usage.
The Dt398 is available with Windows® Embedded Standard 7, Windows® 7 Pro or Linux operating
systems. Each software operating system features web browser, client/server computing software,
media player, accessories, and applications support.
PACKAGE CONTENTS
One DT398 with Internal Battery Pack, Stylus and Bumpers
AC-DC Power Adapter with Power Cord
Basic Operation Guide
Handstrap
Major options, depending on configuration:
Desktop Charging Cradle with DC-in Power Jack and Ethernet/ USB Ports
External Battery Pack and Battery Charger Kit
Vehicle/ Wall Mount Cradle
ENGLISH
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for DT Research DT398
Summary of Contents for DT Research DT398
- Page 1 BASIC OPERATION GUIDE INTRODUCTION Thank you for acquiring the latest addition to DT Research’s line of mobile tablets— the DT398. Featuring an IP65-rated, slim yet robust enclosure, the two-pound DT398 with 9.7” TFT display is powered by the Intel® Celeron® or Core™ i dual core processor, offering optimal combinations of performance and power savings.
- Page 2 DT398 The DT398 Input/ Output Ports Button Functions BUTTON ACTION USB Port Power on, Headphone Jack Push/release typically enters Standby mode, or Push/release exits Standby mode DC Power Input or restarts device (software dependent) Full Slot Smart Card Reader...
- Page 3 than the one provided with the device or acquired from the manufacturer or its partners. In the unlikely event that smoke, abnormal noise, or strange odor is present, immediately power off the DT398 and disconnect all power sources. Report the problem to your device provider immediately.
- Page 4 Powering ON and OFF To activate the DT398, push and quickly release the Power Button. The display will come on in a few seconds. To put the DT398 in Standby mode, push and quickly release the Power Button. To turn the DT398 off for extended storage, power off the device safely using any software function that “shuts down computer”...
- Page 5 Calibration The touch display for the DT398 is calibrated before shipping. In the event that the calibration has been modified or is unsatisfactory, the respective calibration routines (e.g., PenMount (PM) to calibrate the touch interface may be used. Such applications are typically executed through touch input via Stylus or through mouse click via a USB mouse.
- Page 6 Ethernet and USB ports to function. The battery packs on the DT398 may be recharged by connecting the AC-DC adapter directly to the DC-in port on the DT398 or through the DC-in port on the Cradle while the DT398 is docked.
- Page 7 Storage: -4°F to 140°F (-20°C to 60°C) 0% – 90% non-condensing Humidity DT Research, Inc. 2000 Concourse Drive, San Jose, CA 95131 http://www.dtresearch.com Copyright © 2013, DT Research, Inc. All Rights Reserved. DT Research is a registered trademark of DT Research, Inc. BOG020713DT365CTMDENG ENGLISH...
