DT Research DT398 SERIES Operation Manual

DT398 SERIES OPERATION GUIDE
Installation
The Barcode Scanner is preinstalled as an option for the DT398 series.
Button Management
The default scanner trigger button is on the right side.
To assign the Scanner Trigger button, follow the steps
below.
1. Start Button Manager by clicking on
system tray.
2. Select an available unused button marked with the
icon .
to go to the second screen of Button
3. Click on
Manager.
4. Click on the
5. Click OK to apply configuration settings and close the window.

To Connect Barcode Scanner Module

To connect the Barcode Scanner, you can use the Keyboard Wedge. Tap on the
task bar, a menu displays as shown in the picture below. Select Connect Scanner.
www.dtresearch.com www.dtresearch.com

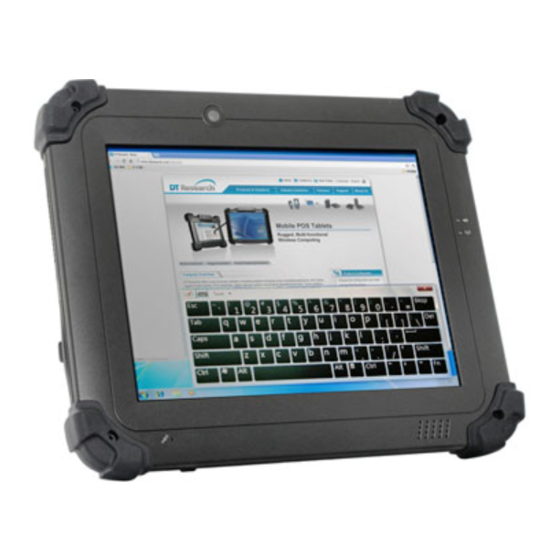

Mobile POS Tablet

Barcode Scanner

Barcode Scanner
icon to assign the Scanner Trigger to the unused button.
Scanner connected
in the
Trigger Button
icon in the
Scanner 1/2
