DT Research DT390 Basic Operation Manual

DT390/ DT390c

SPECIFICATIONS

System
Processor
Memory (RAM)
Storage
Operating Systems
Display
Display Resolution
Network Interface
Control Switch and Buttons
Indicator
Speaker/Microphone
Input/Output Ports
Power
AC/DC Adapter
Battery Pack
Mechanical
Enclosure
Stylus
Protective Bumpers
Dimensions
(H x W x D)
Weight
Environmental
Water and Dust Resistance
Vibration and Shock Resistance
Regulatory
Temperature
Humidity
* Specifications subject to change without notice.
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131
Copyright © 2012, DT Research, Inc. All Rights Reserved.
DT Research is a registered trademark of DT Research, Inc.
8
ENGLISH signage dtri com
Intel® Atom™ Z530, 1.6GHz
2GB DDR2 533MHZ
8GB to 64GB Flash
Microsoft® Windows® Embedded Standard 7,
Windows® 7 Professional, Windows® XP Embedded,
Windows® XP Pro for Embedded Systems, or Linux
8.9" LED-backlight screen with resistive touch;
DT390: outdoor-viewable (option);
DT390c: sunlight-readable (standard)
1024 x 600 (WSVGA)
Wi-Fi 802.11a/b/g/n, Bluetooth 2.1 with EDR, 3G (Optional)
1 power button, 7 front buttons and 1 trigger button
1 power/ battery status LED and 1 WLAN active LED
Built-in speaker; built-in internal microphone
1 DC-in Jack; 1 USB 2.0 port;
1 Headphone-out Jack combined with microphone
Input: 100 – 240V AC; Output: 19V DC, 2.36A
Internal 7.4V, 3760mAh/
Optional: External 7.4V,3760mAh/ 7.2V,3900mAh
ABS + PC plastics
Non-electronic tip
Rubber bumpers on each corner for handling protection
7.7 x 10 x 1.25 in/ 196 x 256 x 32 mm
2.43 lbs/ 1.1 kg
IP64
* IP64 rating may not be applicable for units with module
options
MIL-STD-810G
FCC Class B, CE, C-Tick, RoHS compliant
Operation: 0°C - 40°C; Storage: -20°C - 60°C
0% - 90% non-condensing
http://www.dtresearch.com
BOG111312DT390/ DT390cENG

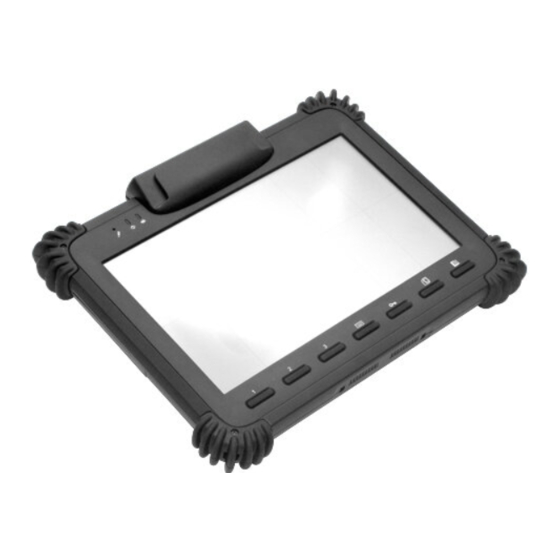

Mobile POS Tablet
DT390/ DT390c
BASIC OPERATION GUIDE
ENGLISH

INTRODUCTION

Thank you for acquiring the latest addition to DT Research's line of mobile tablets— the
DT390/ DT390c. Featuring an IP64-rated, slim yet robust enclosure, the two-pound
DT390/ DT390c with 8.9" TFT display is powered by the Intel
optimal combinations of performance and power savings. An external battery expansion
option provides approximately 3-4 hours of additional battery operation for up to eight
hours of mobile usage.
The DT390/ DT390c is available with Windows
Embedded, Windows ® XP Pro for Embedded Systems, Windows
systems. Each software operating system features web browser, client/server computing
software, media player, accessories, and applications support.
PACKAGE CONTENTS
• DT390/ DT390c with Internal Battery Pack, Stylus and Bumpers
• AC-DC Power Adapter with Power Cord
• Basic Operation Guide
Major options, depending on configuration:
• Desktop Charging Cradle with DC-in Power Jack and Ethernet/ USB Ports
• Handstrap
• External External Battery Pack and Battery Charger Kit
• Vehicle/ Wall Mount Cradle
• 5-System Gang Charger
* If your DT390/ DT390c contains MSR, camera or scanner module, please refer to the POS module operation
guide for detailed operation.
® Atom™ processor, offering
Embedded Standard 7, Windows XP
® ®
® 7 Pro or Linux operating
