Häfele AdjustableTableSystem 630.44 Series Mounting Instructions

Mounting Instructions

Item No.: 630.44 Series

AdjustableTableSystem

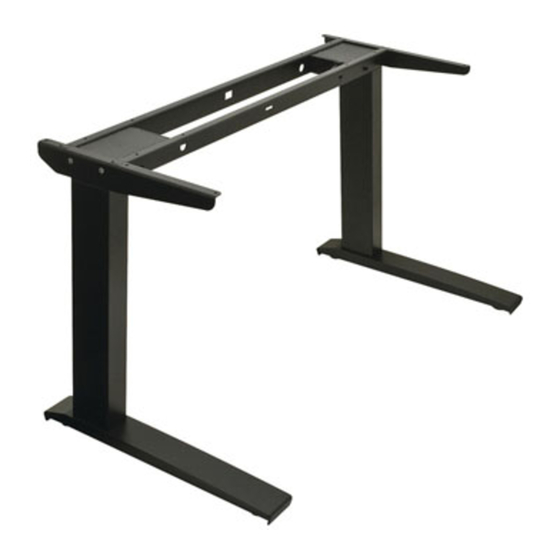

Electric Sit to Stand System 630.44 series

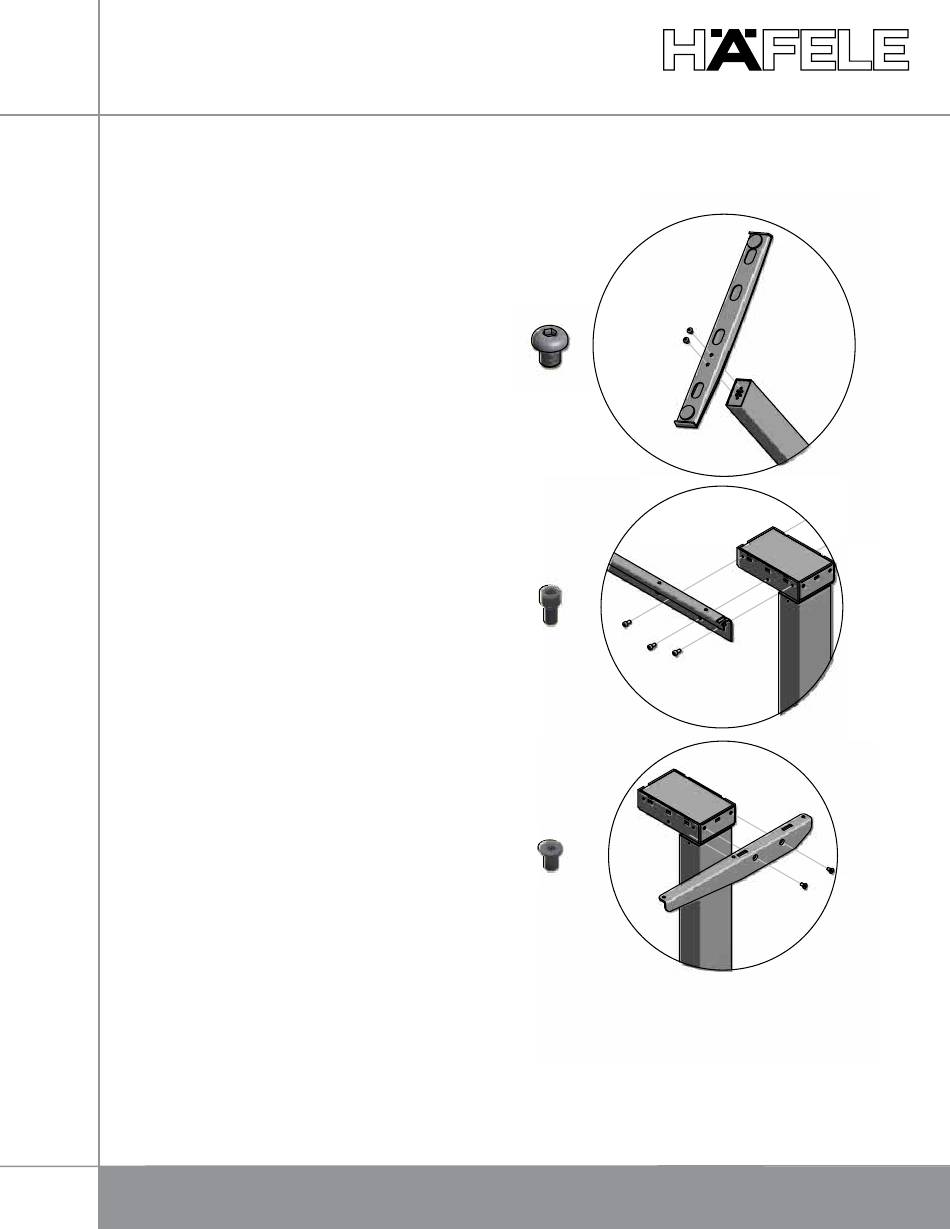

Step 1:

Attach feet to side bases using 2 pcs. each

M10 x 12 pan head screws

Step 2:

Mount the J-Channels with the M6 x 12 cylinder head screws

Step 3:

Mount the top plate with the M6 x 12 countersink screws

Step 4:

Plug electrical components together:

• Plug cords from side bases into control box using portals #1 and #2

• Plug switch into control box

• Plug power cord into control box, and then into power supply (outlet)

Inital Operation – Important:

Press and hold down arrow button for a few seconds to allow left and right side bases to synchronize.

They will generally adjust slightly.

™

Table of Contents

Need help?

Do you have a question about the AdjustableTableSystem 630.44 Series and is the answer not in the manual?

Page 1 Mounting Instructions Item No.: 630.44 Series AdjustableTableSystem ™ Electric Sit to Stand System 630.44 series Step 1: Attach feet to side bases using 2 pcs. each M10 x 12 pan head screws Step 2: Mount the J-Channels with the M6 x 12 cylinder head screws Step 3: Mount the top plate with the M6 x 12 countersink screws Step 4:...
Page 2 Step 5: Attach Control Box and Control Switch at desired location – Control Box is generally mounted between the two J-Channels. Step 6: Attach Tabletop to assembled frame. Note: Not included are screws for attaching Control Box, Control Switch, or screws for attaching Tabletop to frame.
