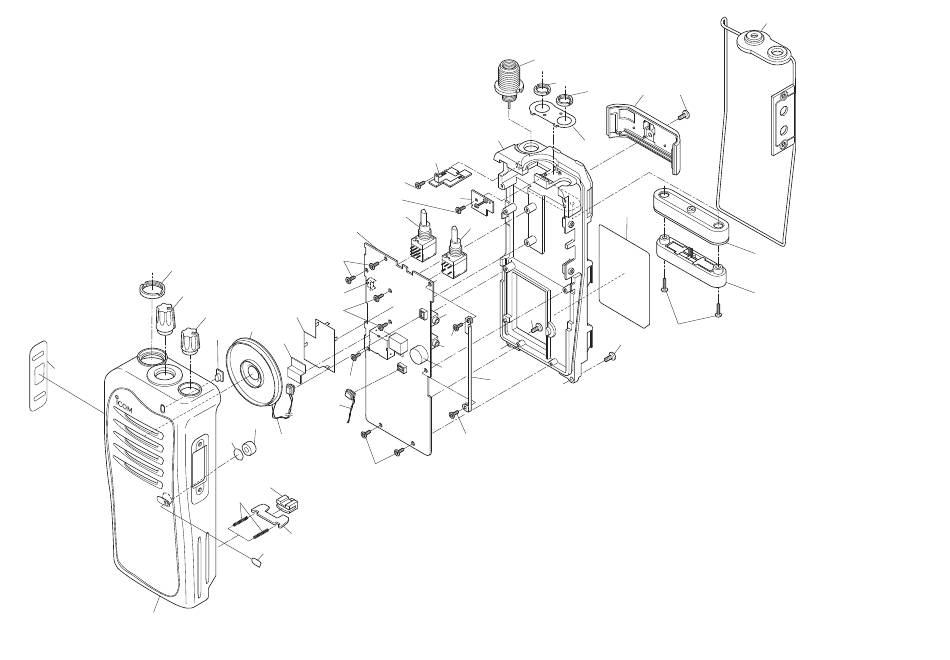

Icom IC-F3011 Service Manual Addendum page 33

MP25 ( C )
* MP11 ( C )
MP10 ( C )
MP9 ( C )
MP3 ( C )
MP33 ( C )
MP34 ( C )
MP2 ( C )
S1(C )
MP29( C )
W2 ( C )
CONNECT Unit
MP30( C )
* S4 ( M )
MAIN Unit
MP28 ( C )
S1 ( M )
MP28 ( C )
MP4 ( M )
SP1 ( C )
MP5 (M)
MP28 ( C )
W2 ( C )
MP20 ( C )
W1 ( C )
MP28 ( C )
MP21 ( C )
MP22 ( C )
MP42 ( C )
*: IC-F24/F25/F26/F26-L/F4018 only
J1(C)
* MP36(C)
MP35(C)
MP1(C)
*
MP17(C)
ANT Unit
R226 ( M )
J2 ( M )
MP26(C)
MP28 ( C )
J3 ( M )
MC1 ( M )
MP16 ( C )
MP28 ( C )
MP13(C)
MP8(C) MP31(C)
MP32(C)
MP14(C)
J2(C)
MP27(C)
MP26(C)
7 - 2
