P
STARTING SOFTWARE ADJUSTMENT
(1) Connect the transceiver and PC with OPC-478/U/UC and JIG CABLE (see the previous page).
(2) Turn the transceiver power ON.
(3) Boot up Windows, and click the program group 'CS-F3010 ADJ' in the 'Programs' folder of the [Start] menu, then CS-F3010
ADJ's window appears.
(4) Click 'Connect' on the CS-F3010's window, then IC-F3011/IC-F3013's up-to-date condition appears as below.
(5) Set or modify adjustment value as specified in the following guidances.

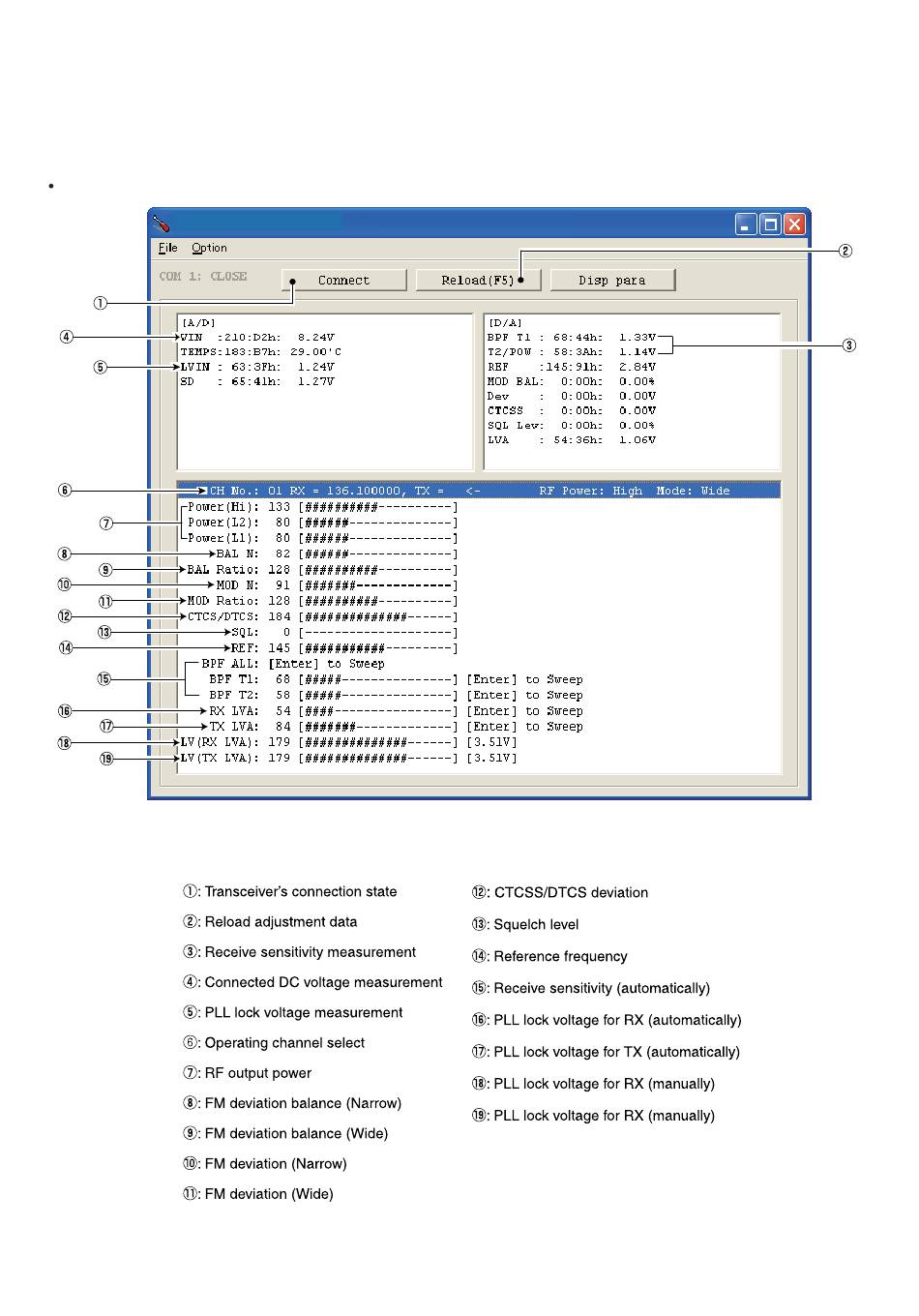

ADJUSTMENT WINDOW
NOTE: The above screen is an example.
Each transceiver has its own specific values for each setting.
5 - 3
