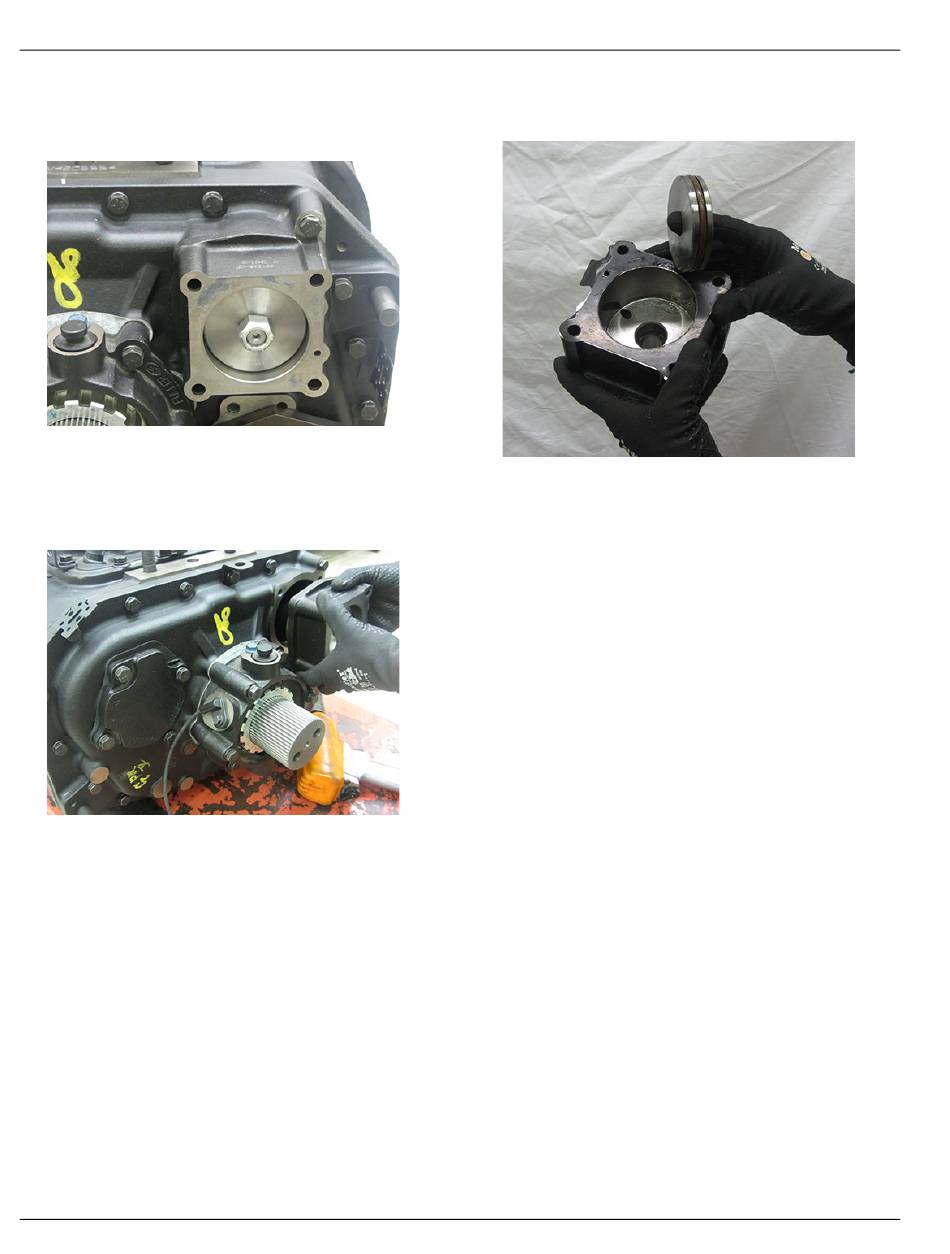

Range Cylinder LAS/VAS Model | Disassembly and Assembly
6. Remove the retaining bolt for the Range Cylinder Pis-
ton.
7. Remove the Range Cylinder and piston from the Auxil-
iary Case.
182
© 2022 Eaton Cummins Automated Transmission Technologies. All rights reserved.
8. Remove the piston from the Range Cylinder.
9. Inspect for cut O-rings, rust or debris in the cylinder,
scoring, and blocked air passages.
TRSM0940
2022.10.7
