TRSM0940

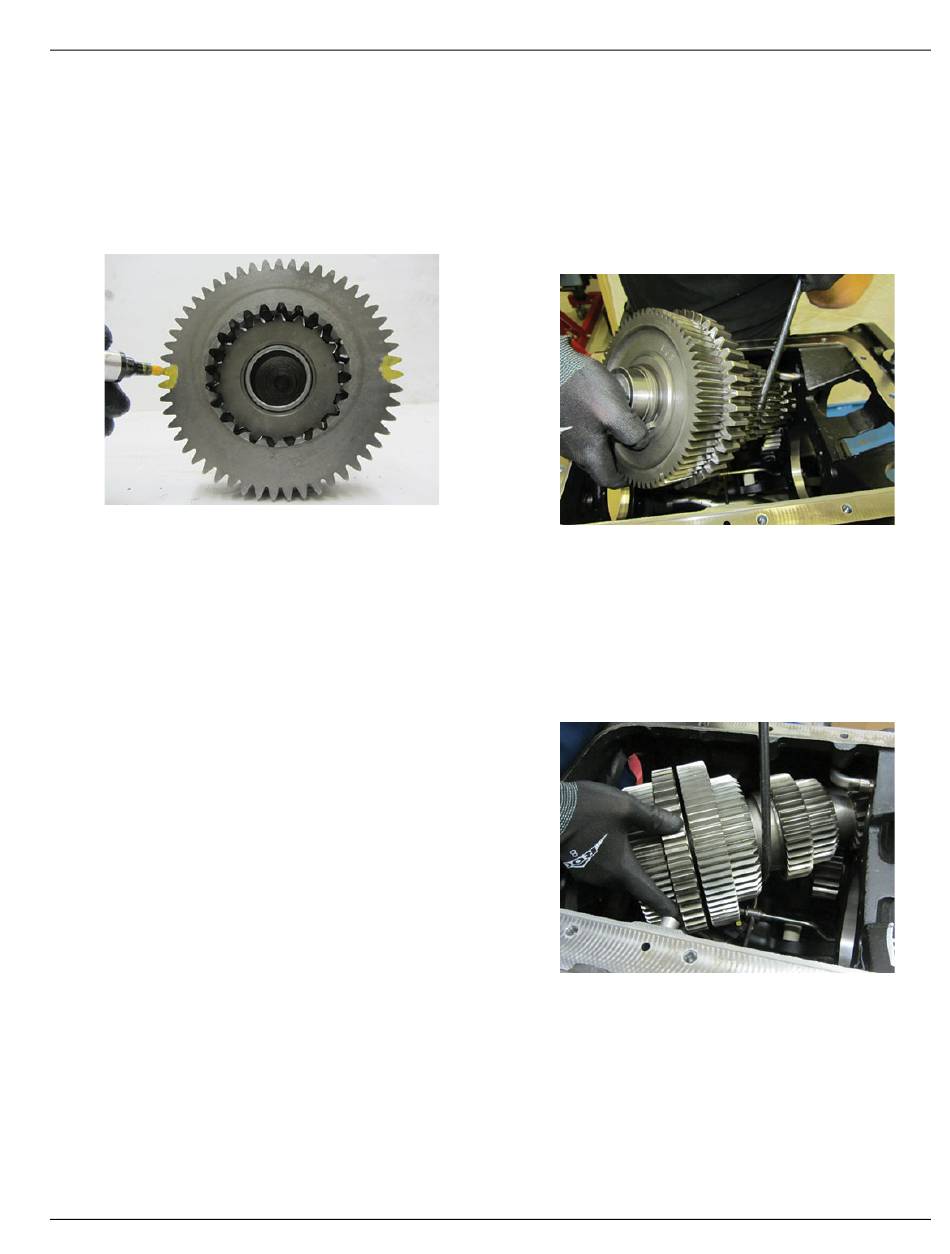

2. Mark two adjacent teeth on the Main Drive Gear with
highly visible ink or dye, then mark two more teeth 180
degrees apart.
Note: There should be an equal number of teeth in
between both marks, counting both directions around
the gear.
2022.10.7
© 2022 Eaton Cummins Automated Transmission Technologies. All rights reserved.
Removal and Installation | Oil Pump and Lube Tube Installation
Main Case Counter Shaft Installation
1. Using a J-hook, install the lower Counter Shaft into the
Transmission Main Case.
Note: Place the back of the lower Counter Shaft into
the rear Counter Shaft Bearing bore and carefully
swing the Counter Shaft into place.
2. Using a J-hook, install the upper Counter Shaft into the
Transmission Main Case.
Note: Place the back of the upper Counter Shaft into
the rear Counter Shaft Bearing bore and carefully
swing the Counter Shaft into place.
159
