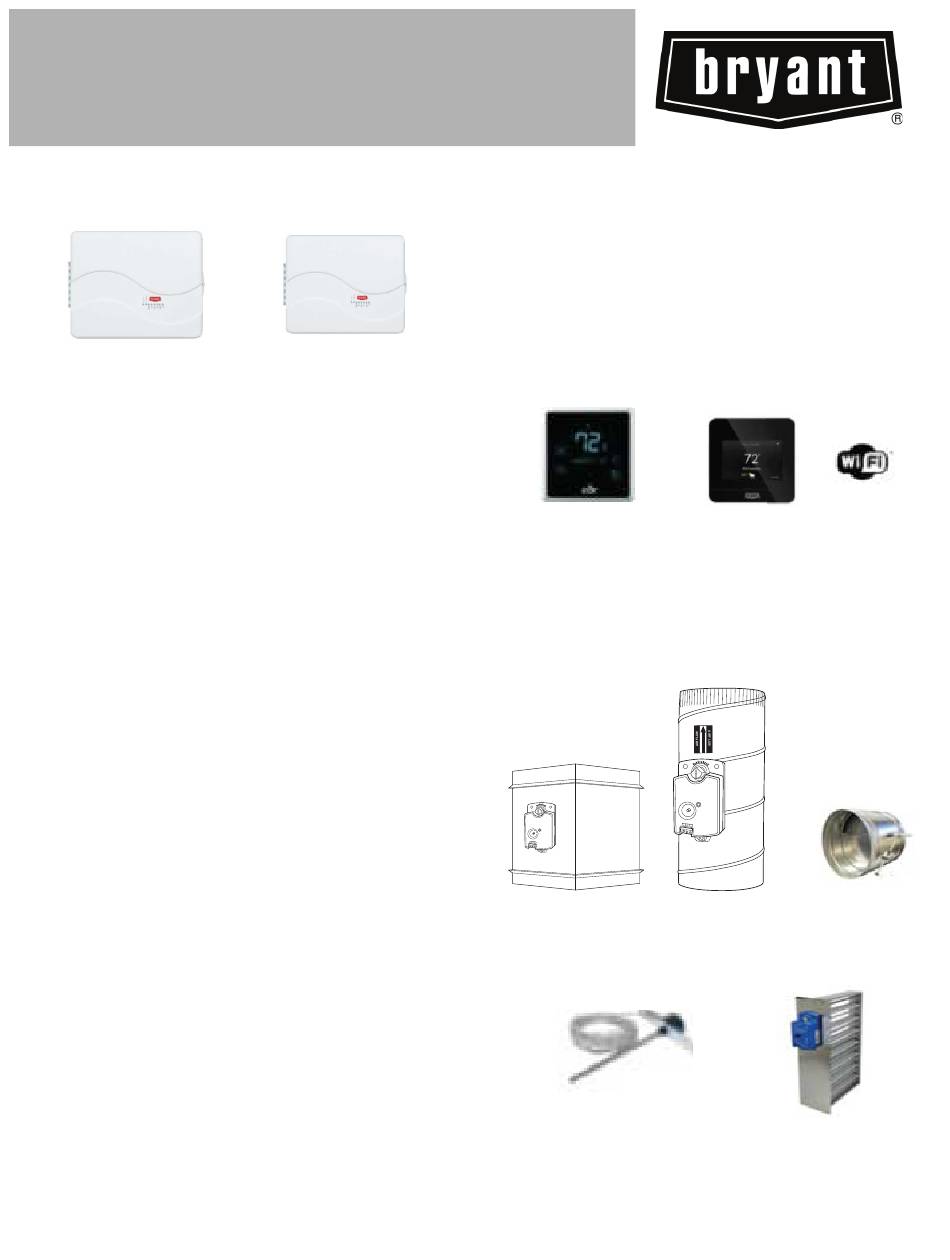

Carrier bryant ONEBB3ZAC01 Quick Reference Manual

ZONEBB3Z(AC/HP)01
3-Zone Control System
ZONEBB3ZAC01
1 Heat / 1 Cool
Introduction
The Bryant 3-Zone Control system brings the possibility of total comfort
control to the occupants by providing the right amount of heating or
cooling for up to 3 distinct spaces or zones within a home or business.
Each zone has independent temperature settings controlled by a
conventional thermostat or Wi-Fi® based thermostats and up to 5
dampers per zone.
The Quick Reference Guide will provide a simplified description on
installing the 3-Zone Control System. Please reference the Installation
and Start-Up Instructions included in the 3-Zone Controller packaging
for the complete design and installation information on the 3-Zone
System.
Product Features and Benefits
• Duct Temperature Optimizer - Offers maximum equipment protection
to help ensure long life.
• Wi-Fi® Thermostat compatibility - Matches the right thermostat to
the homeowner's comfort and lifestyle.
• Diagnostic LEDs - Intelligent system diagnostics to let homeowners
know if there is a problem with their system.
• Emergency Heat Switch - Allows manual override for emergency heat
strip operation when utilizing a heat pump.
• Max Cycle Rate - Allows 4 equipment cycles per hr (cph) providing
maximum equipment protection.
• Selection Jumpers - Designed for easy configuration
• Additional Options
•Timeguard override
•Compressor protection
•Modulating damper control in emergency situations
•Damper fuse protection
•High and low temperature limits
•Auto changeover from any zone
•RH and RC for voltage isolation
•Bypass setup routine
•Staging time for energy savings
•Automatic checkout with installer mode
•Override zoning switch
•Timer override for serviceability
Quick Reference Guide
ZONEBB3ZHP01
3 Heat / 2 Cool HP
Components Needed
3-Zone Control Panel
• Separate transformer is not needed to provide power
• Designed so that wires can enter from behind, above, or below
• Each system controller also includes a duct temperature sensor
24v or Wi-Fi® Thermostats
• Advanced energy savings algorithms
• Remote access
TSTWHA01
Côr 7C Thermostat
Dampers (8-in. - 24-in.)
• Up to five dampers may be used in each zone by electrically
connecting them in parallel
• By-pass damper available to prevent static pressure buildup
A05252
Rectangular
Damper
Leaving Air Temperature
(LAT) Sensor
Fig. 1 – Damper Types
NOTE: Thermostats and Dampers are sold separately.
Wi-Fi® is a registered trademark of the Wi-Fi Alliance Corporation
T6-WEM01-A
Côr Thermostat
A05251
Round Damper
By-Pass
Slip-In Damper
