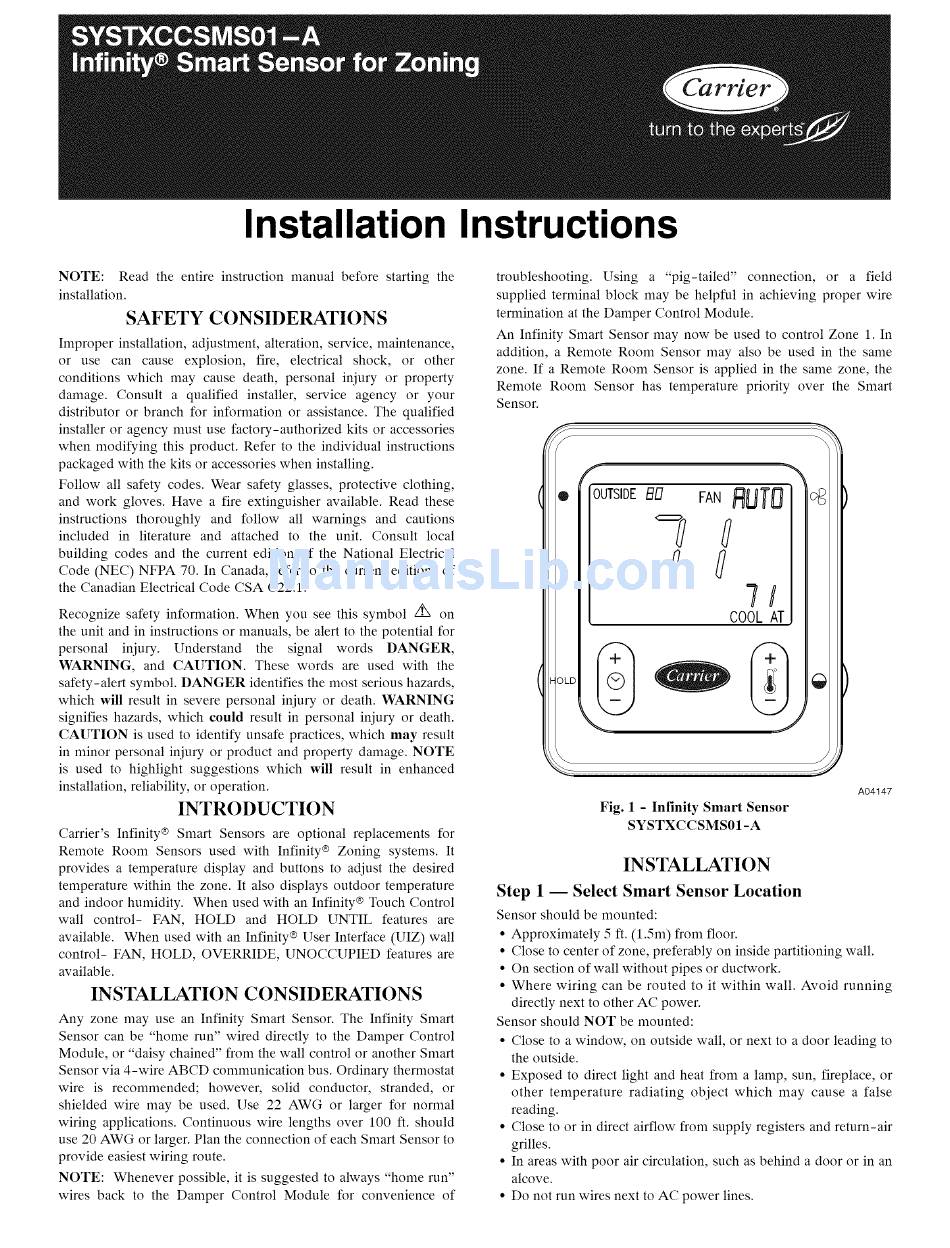

Installation Instructions
NOTE:
Read
the entire
instruction
manual
before
starting
the
installation.
SAFETY
CONSIDERATIONS
Improper
installation,
adjustment,
alteration,
service,
maintenance,
or use
can
cause
explosion,
fire,
electrical
shock,
or
other
conditions
which
may
cause
death,
personal
injury
or property
damage.
Consult
a qualified
installer,
service
agency
or your
distributor
or branch
for information
or assistance.
The qualified
installer
or agency
nmst use factory-authorized
kits or accessories
when modifying
this product.
Refer to the individual
instructions
packaged
with the kits or accessories
when
installing.
Follow
all safety
codes.
Wear safety glasses,
protective
clothing,
and work
gloves.
Have
a fire extinguisher
available.
Read
these
instructions
thoroughly
and
follow
all warnings
and
cautions
included
in literature
and
attached
to the
unit.
Consult
local
building
codes
and the current
edition
of the National
Electrical
Code (NEC) NFPA 70. In Canada,
refer to the current
editions
of
the Canadian
Electrical
Code CSA C22.1.
Recognize
safety information.
When
you see this symbol
/_
on
the unit and in instructions
or manuals,
be alert to the potential
for
personal
injury.
Understand
the
signal
words
DANGER,
WARNING,
and
CAUTION.
These
words
are used
with
the
safety-alert
symbol.
DANGER
identifies
the most serious hazards,
which
will result
in severe
personal
injury or death.
WARNING
signifies
hazards,
which
could
result
in personal
injury
or death.
CAUTION
is used to identify
unsafe
practices,
which
may
result
in minor personal
injury or product
and property
damage.
NOTE
is used
to highlight
suggestions
which
will result
in enhanced
installation,
reliability,
or operation.
INTRODUCTION
Carrier's
Infinity ® Smart
Sensors
are optional
replacements
for
Remote
Room
Sensors
used with
Infinity ® Zoning
systems.
It
provides
a temperature
display
and buttons
to adjust the desired
temperature
within
the zone.
It also displays
outdoor
temperature
and indoor
humidity.
When used with an Infinity ® Touch Control
wall
control-
FAN,
HOLD
and
HOLD
UNTIL
features
are
available.
When
used with an Infinity ® User Interface
(UIZ) wall
control-
FAN, HOLD,
OVERRIDE,
UNOCCUPIED
features
are
available.
INSTALLATION
CONSIDERATIONS
Any zone may use an Infinity
Smart
Sensor.
The Infinity
Smart
Sensor
can be "home
run" wired
directly
to the Damper
Control
Module,
or "daisy
chained"
from the wall control
or another
Smart
Sensor via 4-wire
ABCD
communication
bus. Ordinary
thermostat
wire
is recommended;
however,
solid
conductor,
stranded,
or
shielded
wire
may be used.
Use 22 AWG
or larger
for normal
wiring
applications.
Continuous
wire lengths
over
100 ft. should
use 20 AWG or larger. Plan the connection
of each Smart Sensor to
provide
easiest wiring
route.
NOTE:
Whenever
possible,
it is suggested
to always
"home
run"
wires
back
to the Damper
Control
Module
for convenience
of
troubleshooting.
Using
a "pig-tailed"
connection,
or a field
supplied terminal block may be helpful in achieving proper wire
termination at the Damper Control Module.
An Infinity Smart Sensor may now be used to control Zone 1. In
addition, a Remote Room Sensor may also be used in the same
zone. If a Remote Room Sensor is applied in the same zone, the
Remote Room Sensor has temperature
priority over the Smart
Sensor.
Fig. 1 - Infinity
Smart
Sensor
SYSTXCCSMSO1-A
A04147
INSTALLATION
Step 1 -- Select Smart Sensor Location
Sensor should be mounted:
• Approximately
5 ft. (1.5m) from floor.
• Close to center of zone, preferably
on inside partitioning
wall.
• On section of wall without
pipes or ductwork.
• Where
wiring
can be routed
to it within
wall.
Avoid
running
directly
next to other AC power.
Sensor should
NOT be mounted:
• Close to a window,
on outside
wall, or next to a door leading
to
the outside.
• Exposed
to direct light and heat from
a lamp, sun, fireplace,
or
other
temperature
radiating
object
which
may
cause
a false
reading.
• Close to or in direct airflow from supply
registers
and return-air
grilles.
• In areas with poor air circulation,
such as behind
a door or in an
alcove.
• Do not run wires next to AC power
lines.
