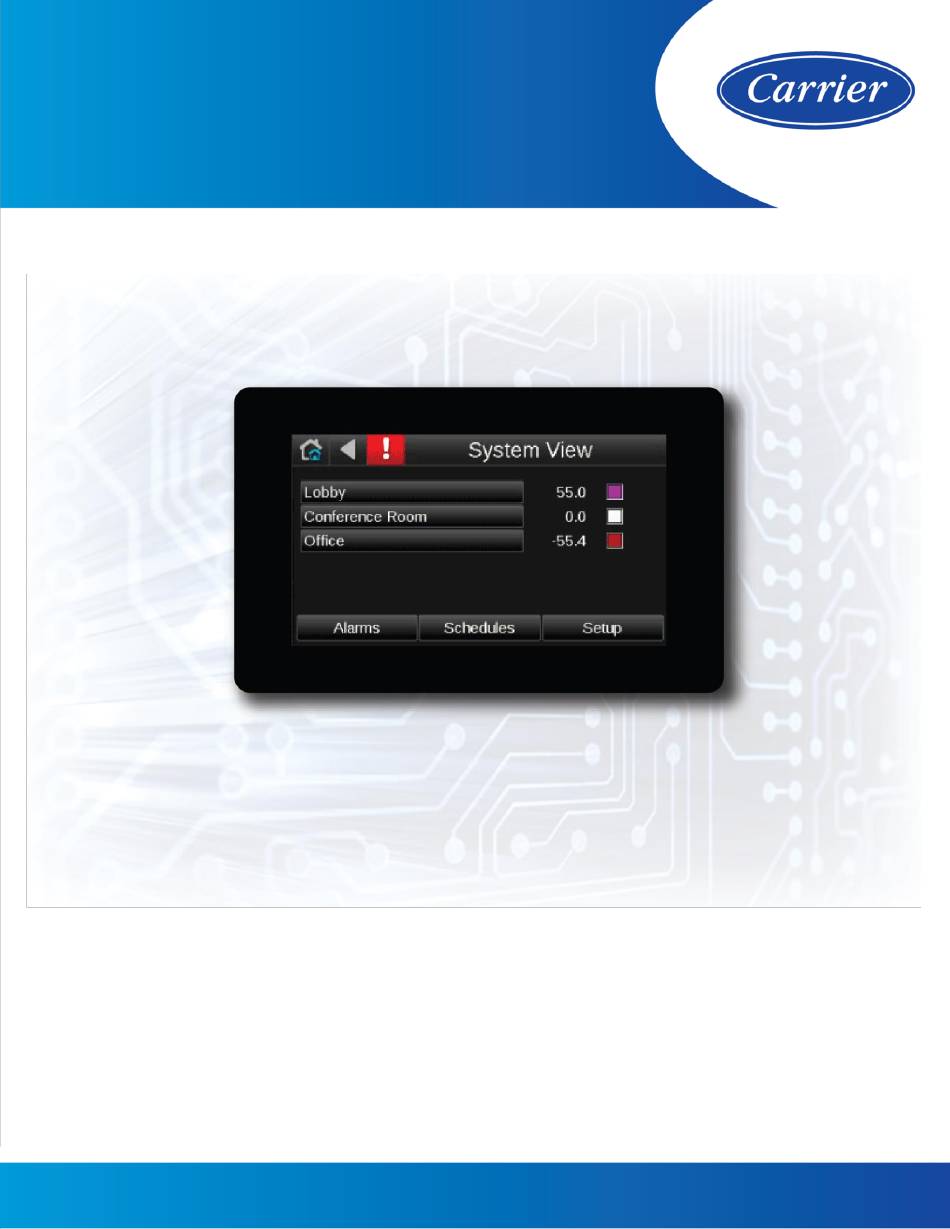

System Touch (SYST1-5)

Installation and Setup Guide

Table of Contents

Need help?

Do you have a question about the System Touch SYST1-5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Carrier System Touch SYST1-5

Page 2 Verify that you have the most current version of this document from www.hvacpartners.com, the Carrier Partner Community website, or your local Carrier office. Important changes are listed in Document revision history at the end of this document. ©2024 Carrier. All rights reserved.
Page 3: Table Of Contents
Contents What is the System Touch? ............................1 Specifications ................................ 2 System Touch screens ............................3 Wiring and mounting the System Touch ........................8 Wiring specifications ............................9 To wire and mount the System Touch ....................... 9 Setting up the system ............................... 11 Step 1: Set up communications ........................
Page 5: What Is The System Touch
Connect the System Touch to an MS/TP network. Discover BACnet devices on the same network or on a different BACnet ARCNET or BACnet MS/TP network (page 11). Create the system database (page 11). System Touch (SYST1-5) ©2024 Carrier. Installation and Setup Guide All rights reserved.
Page 6: Specifications
Link to screens for individual controllers on the network. The information on the controller screens depends on whether the controller is a Carrier controller or a third-party controller, and if it is Carrier controller, whether it has an Equipment Touch file.
Page 7: System Touch Screens
Screen name Description System View The Home screen that shows each controller in the system, and, for Carrier controllers, the zone temperature and zone color. From this screen, you can view alarms or set up schedules. A user with an administrator-level password can edit the system or edit touchscreen settings.
Page 8 You can change the password on the Touchscreen Setup > Passwords screen (page 16). Alarm Manager Lets you view all alarms in the system. See "Viewing alarms" in the System Touch User Guide. System Touch (SYST1-5) ©2024 Carrier. Installation and Setup Guide All rights reserved.
Page 9 See "Setting up schedules" in the System Touch User Guide. Create Schedule Group Lets you create a group and assign equipment to it. See "Setting up schedules" in the System Touch User Guide. System Touch (SYST1-5) ©2024 Carrier. Installation and Setup Guide All rights reserved.
Page 10 Lets you define network communications for the System Touch. You also define the network that you want the System Touch to scan during discovery. See Setting up the system (page 11). System Touch (SYST1-5) ©2024 Carrier. Installation and Setup Guide All rights reserved.
Page 12: Wiring And Mounting The System Touch
In a panel or on the panel door • On a wall Wiring The System Touch is wired to an MS/TP network and a 24 Vac power supply. System Touch (SYST1-5) ©2024 Carrier. Installation and Setup Guide All rights reserved.
Page 13: Wiring Specifications
If wiring 2 cables in a daisy-chain configuration, twist together the shield wires, then wrap the shield wires with tape. Strip about 0.25 inch (0.6 cm) insulation from the end of each wire. Connect wiring to the System Touch as shown below: System Touch (SYST1-5) ©2024 Carrier. Installation and Setup Guide All rights reserved.
Page 14 CAUTION Be careful to avoid bending the connecting pins when attaching the System Touch onto the backplate. Turn off the controller's power. Connect power wiring to a 24 Vac or 12–24 Vdc power supply. 10 Turn on the controller's power. System Touch (SYST1-5) ©2024 Carrier. Installation and Setup Guide All rights reserved.
Page 15: Setting Up The System
If you change My Device Instance after you create the database, you must rediscover the controllers to have the System Touch receive alarms from controllers. Touch Save. System Touch (SYST1-5) ©2024 Carrier. Installation and Setup Guide All rights reserved.
Page 16: Step 2: Discover Controllers
NOTE The System Touch cannot discover controllers on a BACnet IP network, so a BACnet router that is on an IP network and the ARCNET or MS/TP network will not be discovered. System Touch (SYST1-5) ©2024 Carrier. Installation and Setup Guide All rights reserved.
Page 17: Step 3: Create The System Database
The discovery process finds every BACnet controller on the network, but you may not want to include them all in the system you are creating. Carrier recommends that you have no more than 32 devices in your system. Touch each controller that you want to include in the system and change its name to something that will be meaningful to a user (maximum 21 characters).
Page 18: Step 4: Set Up Scheduling Functionality
Whether the System Touch makes a warning sound when it receives an alarm • The language used for System Touch screens • The User or Admin password, if allowed See To edit touchscreen settings (page 16). System Touch (SYST1-5) ©2024 Carrier. Installation and Setup Guide All rights reserved.
Page 19: Using System Touch's Temperature And Humidity Sensors To Control Equipment
NOTE 160099 in the above address is the System Touch's Device Instance number. If you change this number on the Communications screen, use the new number in your microblock's Address field. System Touch (SYST1-5) ©2024 Carrier. Installation and Setup Guide All rights reserved.
Page 20: To Edit Touchscreen Settings
Lets you select the language to use for the System Touch default screens. Passwords Lets you change the User or Admin password, if allowed. NOTE The default password is admin. System Touch (SYST1-5) ©2024 Carrier. Installation and Setup Guide All rights reserved.
Page 21: To Update The System Touch's Firmware
Programming application image... If the file failed to download, verify that you have placed the file correctly in step 1. When the Home screen appears, remove the flash drive. System Touch (SYST1-5) ©2024 Carrier. Installation and Setup Guide All rights reserved.
Page 22: To Update Viewbuilder Files
TIP Upon opening the file, the bottom of the ViewBuilder window displays which device the file is associated with. Click File > Upgrade (4" to 5" display). Save the file. Repeat this process for each file to update. System Touch (SYST1-5) ©2024 Carrier. Installation and Setup Guide All rights reserved.
Page 23: Resetting The System Touch
You want to revert to the System Reset the System Touch's password to Touch's default password factory defaults See To edit touchscreen settings (page 16) for default passwords. System Touch (SYST1-5) ©2024 Carrier. Installation and Setup Guide All rights reserved.
Page 24: Compliance
CAUTION Any modifications made to this device that are not approved by Carrier will void the authority granted to the user by the FCC to operate this equipment.
Page 25: Document Revision History
Important changes to this document are listed below. Minor changes such as typographical or formatting errors are not listed. Date Topic Change description Code* No changes yet * For internal use only System Touch (SYST1-5) ©2024 Carrier. Installation and Setup Guide All rights reserved.
