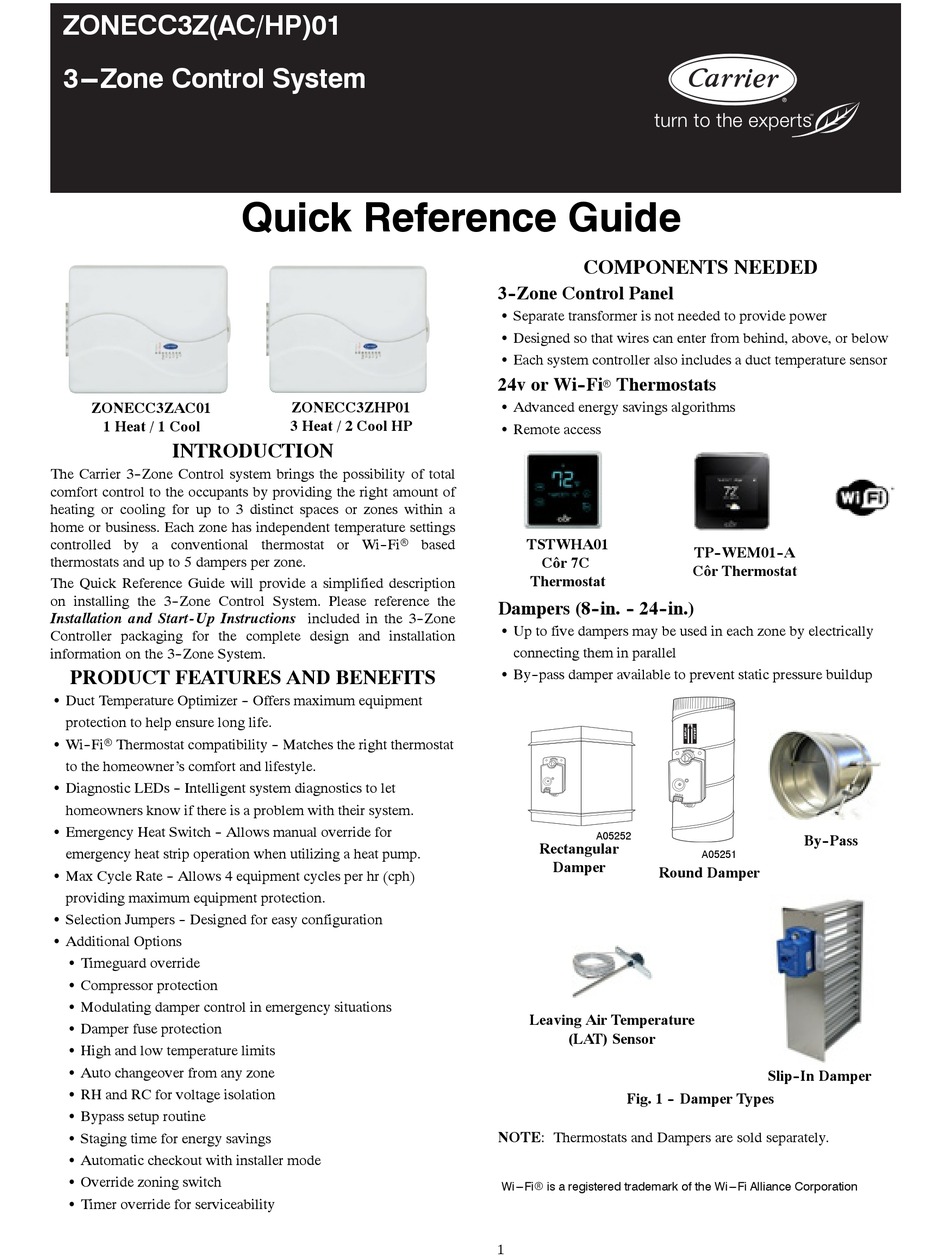

ZONECC3Z(AC/HP)01
3---Zone Control System
ZONECC3ZAC01
1 Heat / 1 Cool
INTRODUCTION
The Carrier 3- -Zone Control system brings the possibility of total
comfort control to the occupants by providing the right amount of
heating or cooling for up to 3 distinct spaces or zones within a
home or business. Each zone has independent temperature settings
controlled by a conventional thermostat or Wi- -Fir based
thermostats and up to 5 dampers per zone.
The Quick Reference Guide will provide a simplified description
on installing the 3- -Zone Control System. Please reference the
Installation and Start- Up Instructions included in the 3- -Zone
Controller packaging for the complete design and installation
information on the 3- -Zone System.
PRODUCT FEATURES AND BENEFITS
S Duct Temperature Optimizer - - Offers maximum equipment
protection to help ensure long life.
S Wi- -Fir Thermostat compatibility - - Matches the right thermostat
to the homeowner's comfort and lifestyle.
S Diagnostic LEDs - - Intelligent system diagnostics to let
homeowners know if there is a problem with their system.
S Emergency Heat Switch - - Allows manual override for
emergency heat strip operation when utilizing a heat pump.
S Max Cycle Rate - - Allows 4 equipment cycles per hr (cph)
providing maximum equipment protection.
S Selection Jumpers - - Designed for easy configuration
S Additional Options
S Timeguard override
S Compressor protection
S Modulating damper control in emergency situations
S Damper fuse protection
S High and low temperature limits
S Auto changeover from any zone
S RH and RC for voltage isolation
S Bypass setup routine
S Staging time for energy savings
S Automatic checkout with installer mode
S Override zoning switch
S Timer override for serviceability

Quick Reference Guide

ZONECC3ZHP01
3 Heat / 2 Cool HP
COMPONENTS NEEDED

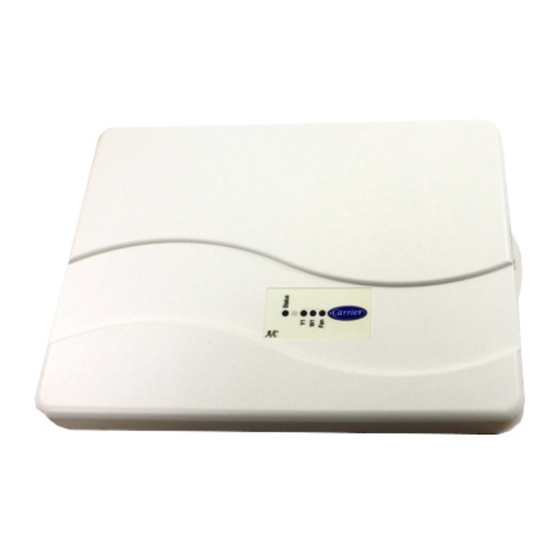

3- -Zone Control Panel
S Separate transformer is not needed to provide power
S Designed so that wires can enter from behind, above, or below
S Each system controller also includes a duct temperature sensor
24v or Wi- -Fi
Thermostats
r
S Advanced energy savings algorithms
S Remote access
TSTWHA01
Côr 7C
Thermostat
Dampers (8- -in. - - 24- -in.)
S Up to five dampers may be used in each zone by electrically
connecting them in parallel
S By- -pass damper available to prevent static pressure buildup
A05252
Rectangular
Damper
Round Damper
Leaving Air Temperature
(LAT) Sensor
Fig. 1 - - Damper Types
NOTE: Thermostats and Dampers are sold separately.
Wi---FiR is a registered trademark of the Wi---Fi Alliance Corporation
1
TP- -WEM01- -A
Côr Thermostat
By- -Pass
A05251
Slip- -In Damper
