Overview

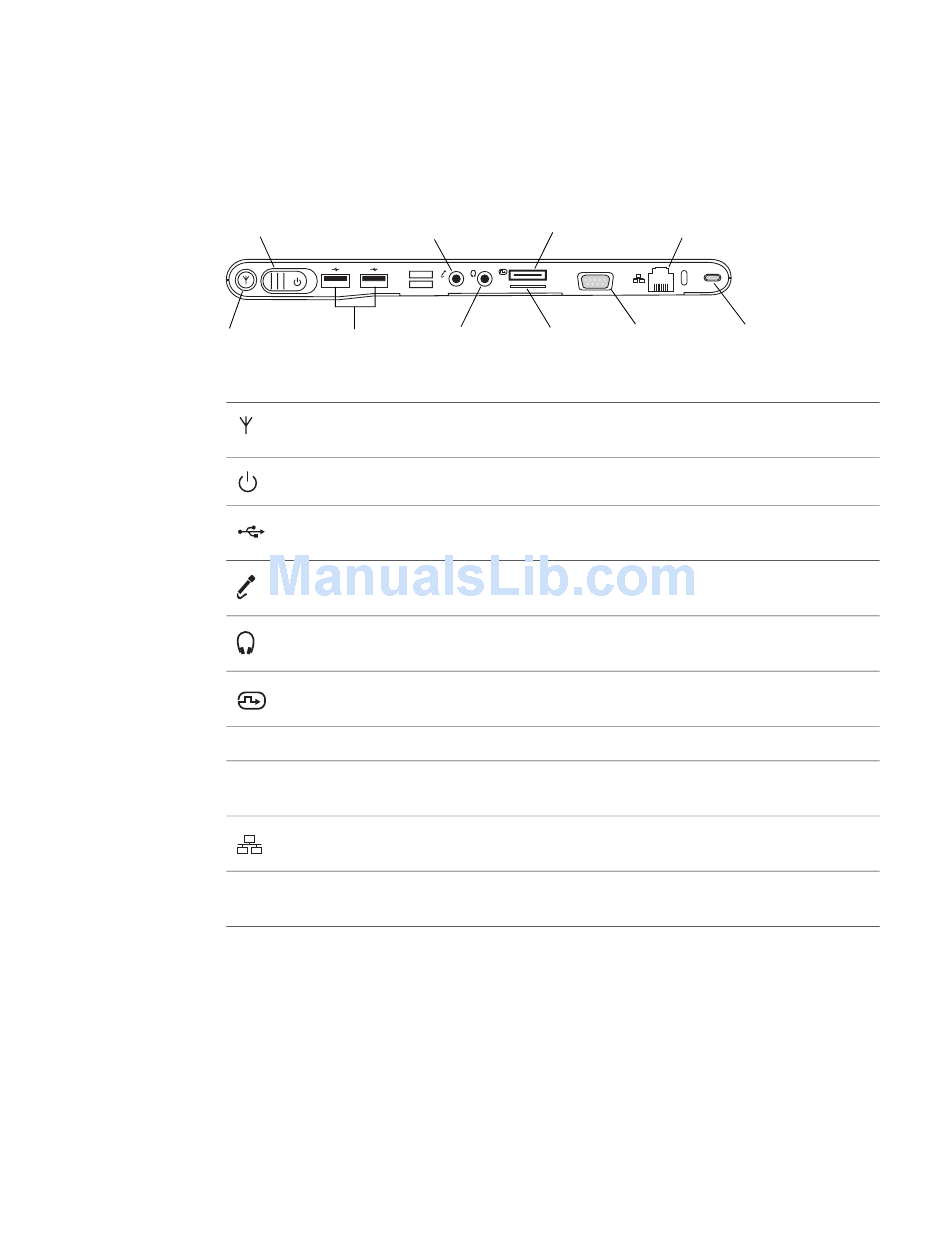

The following illustrations show the buttons, slots, and ports on the Motion LE1700
Tablet PC. Although there are no controls on the back side, there is a sliding panel that
covers the Extended Battery connector.
Power switch
Wireless
switch
2 Chapter 1
Audio in/
Microphone port
Audio out/
USB 2.0
ports Headphones port
Wireless switch Enable and disable the Wi-Fi, Bluetooth, and Broadband
Wireless adapters (page 16).
Power switch Turns the Tablet PC on and off.
USB 2.0 ports Connect USB devices, such as a mouse, digital camera,
printer, or external storage device (page 13).
Audio in/ Connect a microphone or other audio source using a
Microphone port 3.5 mm jack (page 13).
Audio out/ Connect headphones, speakers, or audio equipment
Headphone port using a 3.5 mm jack (page 13).
DVI-D port Connect an external monitor using DVI. Requires an
optional adapter (page 14).
SIM card slot Attach a SIM card (page 15).
VGA port Connect an external monitor using the standard
DB-15 VGA connector (page 14).
Gigabit Ethernet Connect to a 10/100/1000 Ethernet network (page 14).
port
Security slot Connect a security cable to protect your tablet from theft
(page 14).
Getting Started
DVI-D port Gigabit Ethernet port
VGA port
SIM card
slot
Security slot
