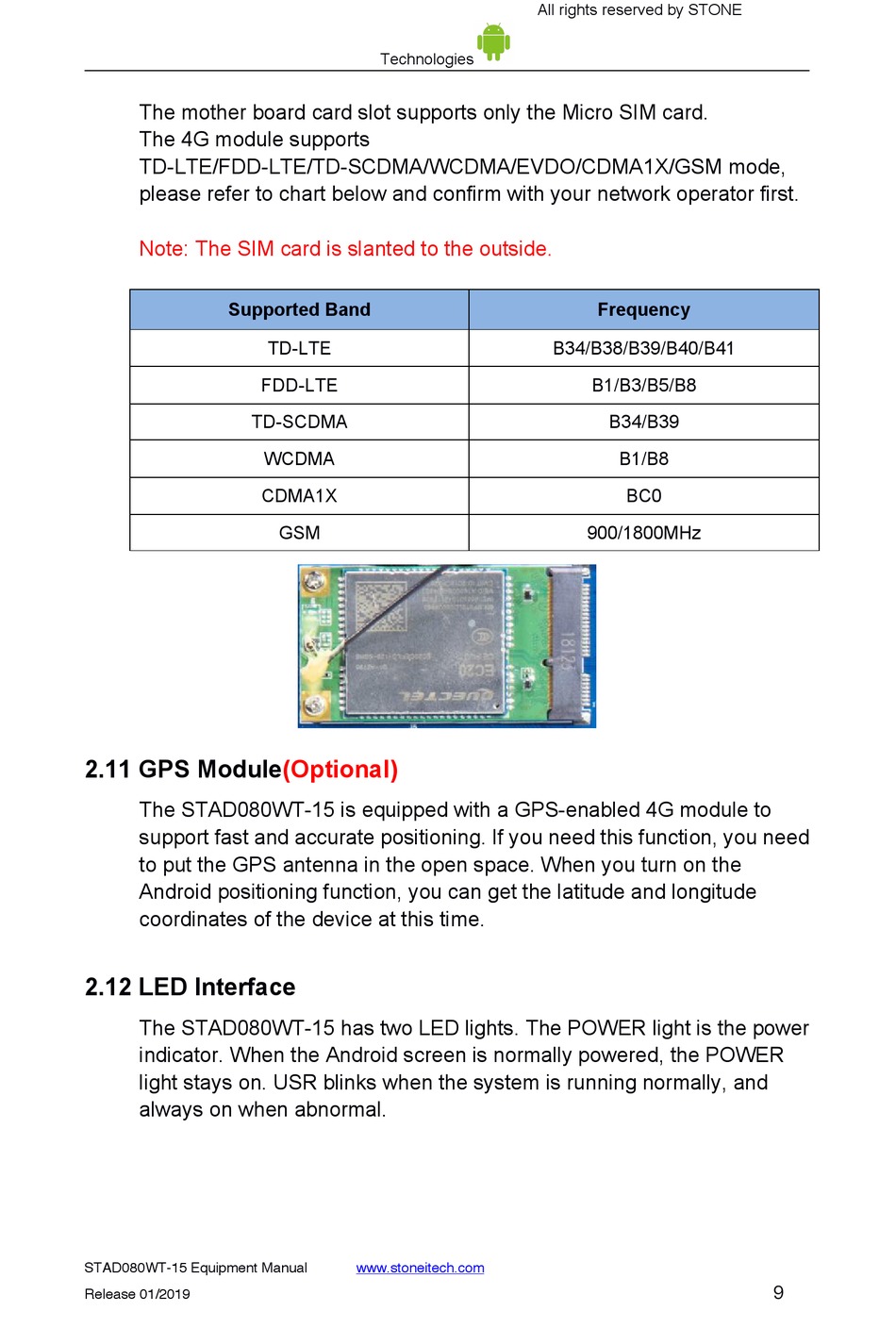

Gps Module - Stone STAD080WT-15 Equipment Manual

The mother board card slot supports only the Micro SIM card.
The 4G module supports
TD-LTE/FDD-LTE/TD-SCDMA/WCDMA/EVDO/CDMA1X/GSM mode,
please refer to chart below and confirm with your network operator first.
Note: The SIM card is slanted to the outside.
Supported Band
TD-SCDMA
2.11 GPS Module(Optional)
The STAD080WT-15 is equipped with a GPS-enabled 4G module to
support fast and accurate positioning. If you need this function, you need
to put the GPS antenna in the open space. When you turn on the
Android positioning function, you can get the latitude and longitude
coordinates of the device at this time.
2.12 LED Interface
The STAD080WT-15 has two LED lights. The POWER light is the power
indicator. When the Android screen is normally powered, the POWER
light stays on. USR blinks when the system is running normally, and
always on when abnormal.
STAD080WT-15 Equipment Manual
Release 01/2019
Technologies
TD-LTE
FDD-LTE
WCDMA
CDMA1X
GSM
www.stoneitech.com
All rights reserved by STONE
Frequency
B34/B38/B39/B40/B41
B1/B3/B5/B8
B34/B39
B1/B8
BC0
900/1800MHz
9
