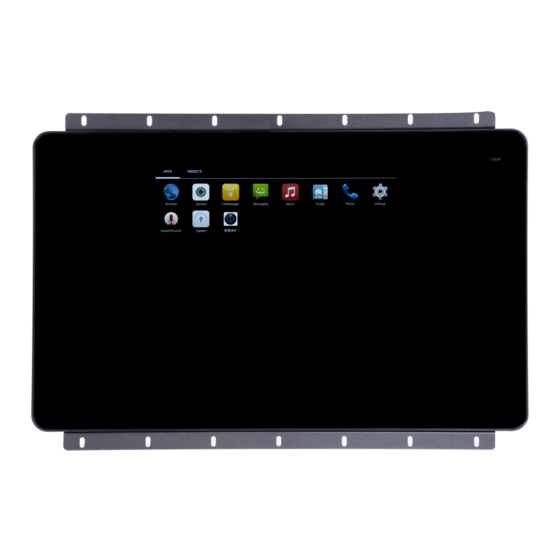

- Page 1 Android industrial control LCD display Model STAD170WR-15 Equipment Manual...
-
Page 2: Table Of Contents
All rights reserved by STONE Technologies Contents 1 Android LCD Specification Introduction..............3 1.1 Introduction......................3 1.2 Technical Parameters....................4 2 Interface Description....................6 2.1 Serial Ports......................6 2.2 USB-HOST Interface................... 7 2.3 USB-DEVICE Interface..................7 2.4 Network Interface....................7 2.5 Button........................7 2.6 TF Card Holder.....................8... -
Page 3: Android Lcd Specification Introduction
Android LCD Specification Introduction 1.1 Introduction STAD170WR-15 Android LCD is a new model Android LCD by STONE Tech. It is equipped with 1.2GHz Quad-core Coretex A7, capacitive touch frame. Recommended power supply is DC 12 V, the PCB board integrates a variety of peripheral interfaces. -
Page 4: Technical Parameters
All rights reserved by STONE Technologies 1.2 Technical Parameters Main Parameters Parameter Description Quad-core 1.2Ghz ARM Cortex™-A7 System Android 4.4.2 Rooted 2pcs 512MB DDR3 eMMC eMMC Mali400MP2 OpenGLES2.0 VG1.1 Display Parameters Parameter Description Dual Interface LVDS eight-way Resolution 1280x1024 4:3 Ratio... - Page 5 All rights reserved by STONE Technologies External 3 USB HOST， 3 HOST, 1 DEVICE another HOST connects IR touch 8R/3W Amplifier, SPK connector Audio 1 MIC, 1 HPO, 1 SPK is CON2X1-PH2.0mm TF Slot TF Card slot SIM Slot SIM or Micro SIM slot...
-
Page 6: Interface Description
All rights reserved by STONE Technologies Interface Description 2.1 Serial Ports STAD170WR-15 is integrated with 4 serial ports. UART0, UART1, UART2, UART3 are RS-232 level converted. All have been treated with anti-static treatment. UART3 is an RS-232 and RS-485 hardware multiplex interface, can be connected to an external RS-485 level device. -
Page 7: Usb-Host Interface
RS232 & UART3 RS485 2.2 USB-HOST Interface STAD170WR-15 is integrated with 3-way USB-HOST, to connect various USB peripherals, such as USB mouse and keypad, flash drive, USB camera, etc 2.3 USB-DEVICE Interface OTG interface is USB-DEVICE interface. This interface can only be used for system programming and ADB debugging. -
Page 8: Tf Card Holder
All rights reserved by STONE Technologies There are two buttons on the STAD170WR-15. Button functions as below: 1. UBOOT button: Normally used when programming 2. USER button: Function reserved If you need to program img with UBOOT button, please refer to STAD series User Guide. -
Page 9: Module
900/1800MHz 2.10 GPS Module The STAD170WR-15 is equipped with a GPS-enabled 4G module to support fast and accurate positioning. If you need this function, you need to put the GPS antenna in the open space. When you turn on the STAD070WC-01 Equipment Manual www.stoneitech.com... -
Page 10: Led Interface
2.11 LED interface The STAD170WR-15 has two LED lights. The POWER light is the power indicator. When the Android screen is normally powered, the POWER light stays on. USR blinks when the system is running normally, and always on when abnormal. - Page 11 All rights reserved by STONE Technologies Speaker 8R5W 100*45 Speaker 8R5W 100*45 Speaker 4R3W Stereo Speaker PH2.0-4P Stereo Speaker PH2.0-2P TS7033BOX-01-L350 PH1.25-2P/ Speaker 2040 Cable length 80 cm Cable length 80 cm 4R2W Rectangle Full-band Mono Speaker External,Optional External,Optional Cable length 20 cm...
-
Page 12: Physical Dimensions
All rights reserved by STONE Technologies Physical Dimensions STAD070WC-01 Equipment Manual www.stoneitech.com Release 01/2019... -
Page 13: International Certification
All rights reserved by STONE Technologies International Certification CE Certificate FCC Certificate ROHS Certificate ISO9001:2008 STAD070WC-01 Equipment Manual www.stoneitech.com Release 01/2019... -
Page 14: Naming Rule
- Official website: https://www.stoneitech.com/ http://www.stone-hmi.com/ - Alibaba platform: http://shuangying-ocean.en.alibaba.com/ http://stonetech.en.alibaba.com/ - Telephone: 0086-10-84351669 - E-mail: info@stone-hmi.com Other support In need of technical queries, please contact STONE representatives in the subsidiaries and branches responsible for your area. STAD070WC-01 Equipment Manual www.stoneitech.com Release 01/2019...
