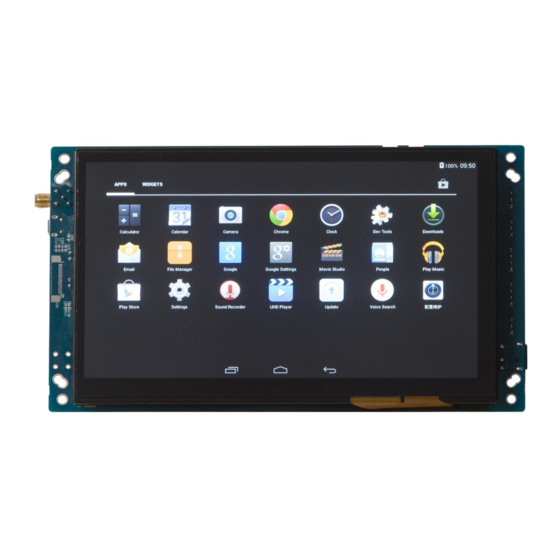

Android industrial control LCD display
Model
STAD070WT-11
Equipment Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STAD070WT-11 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Stone STAD070WT-11

Summary of Contents for Stone STAD070WT-11

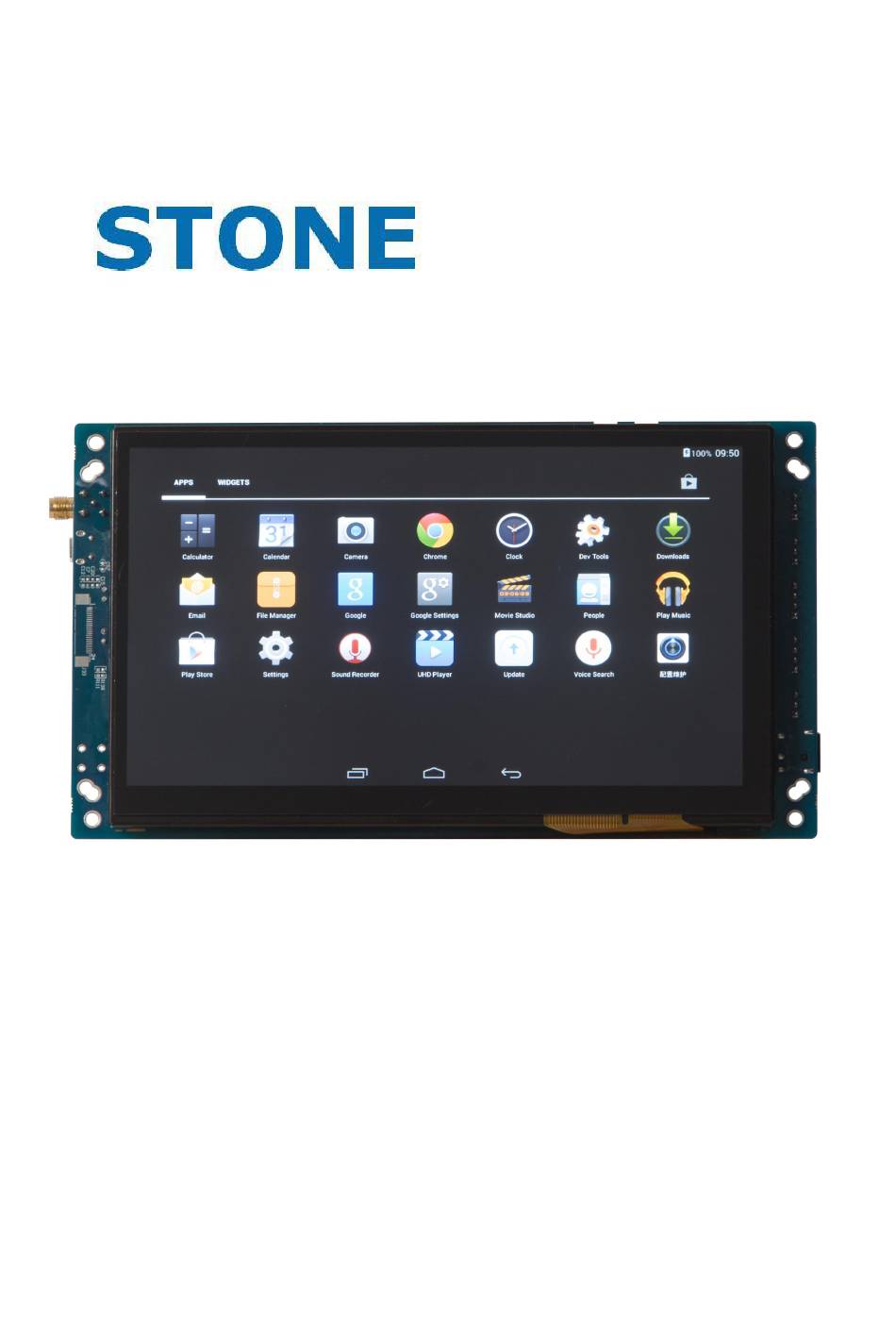

  • Page 1 Android industrial control LCD display Model STAD070WT-11 Equipment Manual...

  • Page 2: Table Of Contents

    All rights reserved by STONE Technologies Contents 1 Android LCD Specification Introduction..............3 1.1 Introduction......................3 1.2 Technical Parameters..................4 2 Interface Description....................6 2.1 Serial Ports......................6 2.2 USB-HOST Interface..................7 2.3 USB-DEVICE Interface..................7 2.4 GPIO Interface....................8 2.5 Network Interface....................8 2.6 HDMI interface....................8 2.7 Button........................9...

  • Page 3: Android Lcd Specification Introduction

    Technologies Android LCD Specification Introduction 1.1 Introduction STAD070WT-11 Android LCD is a new model Android LCD by STONE Tech. It is equipped with 1.8GHz Quad-core Coretex A17. a high performance low energy cost industrial controller. Recommended power supply is DC 12V/2A.

  • Page 4: Technical Parameters

    All rights reserved by STONE Technologies 1.2 Technical Parameters Main Parameters Parameter Description RK3288/Quad-core 1.8Ghz ARM Cortex™-A17 System Android 5.1.1 Rooted 4pcs 512MB,2G DDR3 eMMC EMMC OpenGLES1.1/2.0/3.0 ARM Mali-T764 OPEN VG1.1, OPENCL, Directx11 Display Parameters Parameter Description Interface Resolution 1024x600...
  • Page 5 All rights reserved by STONE Technologies DC 5.5*2.1MM， 1 XH2.54MM-2P Power 1 power supply with 2 input （One or the other） 1 RS-485 multiplex with RS-232, Serial port 4 RS-232, 1 RS-485(Standard) PH-2.0MM-10P connector, or PH-2.0MM-4P connector 4 HOST, 1 DEVICE External 4 USB HOST Two channel 8Ω/3W speaker,...

  • Page 6: Interface Description

    All rights reserved by STONE Technologies Interface Description 2.1 Serial Ports STAD070WT-11 is integrated with 4 serial ports. UART1, UART2, UART3, UART0 are RS-232 level converted, All have been treated with anti-static treatment. UART4 is RS232 and RS485 hardware reuse （UART3,UART4 is either for RS232, either for RS485, they can’t be used at the same time）.

  • Page 7: Usb-Host Interface

    RS485 2.2 USB-HOST Interface The STAD070WT-11 has integrated 4 USB-HOST. The J8, J9, and J10 interfaces are 3-way USB-HOST integrated in the mother-board. The 3-way USB interface is extended by the SMSC-USB2514B chip. The chip is standardized, convenient, fast, and cost-effective, therefore the performance of the circuit is more stable.

  • Page 8: Gpio Interface

    GPIO3_D0_U 2.5 Network Interface The STAD070WT-11 is a 100M adaptive Ethernet interface that is brought out via RJ45. If you want to use Android's Ethernet function, you need to plug the network cable into the ETH interface and then turn on the Ethernet function by setting.

  • Page 9: Button

    The default resolution is 1920 * 1080. 2.7 Button STAD070WT-11 has 1 button, the function as follow： 1. UBOOT button； （Normally used for programming) Regarding the use of the UBOOT button to flash the image in img format, users can refer to the user manual.

  • Page 10: Wifi And Bluetooth Module

    B1/B8 CDMA1X 900/1800MHz 2.10 WIFI and Bluetooth Module STAD070WT-11 is equipped with Bluetooth WIFI 2-in-1 AP6212 module. AP6212 can support Bluetooth 4.2 protocol 2.4G WIFI, after pairing, it supports the function of transferring files with mobile phones and other devices.

  • Page 11: Gps Module

    2.13 LED interface The STAD070WT-11 has two LED lights. The POWER light is the power indicator. When the Android screen is normally powered, the POWER light stays on. USR blinks when the system is running normally, and always on when abnormal.

  • Page 12: Accessories

    All rights reserved by STONE Technologies Accessories 3.1 Antenna Selection Rod antenna FPC antenna 3 meters sucker antenna STAD156WT-15 Equipment Manual www.stoneitech.com Release 01/2019...

  • Page 13: Speaker

    All rights reserved by STONE Technologies 3.2 Speaker Speaker Configuration Details Speaker 8R5W 100*45 Speaker 8R5W 100*45 Speaker 4R3W Stereo Speaker PH2.0-4P Stereo Speaker PH2.0-2P TS7033BOX-01-L350 PH1.25-2P/ Speaker 2040 Cable length 80 cm Cable length 80 cm 4R2W Rectangle Full-band...

  • Page 14: International Certification

    All rights reserved by STONE Technologies International Certification STAD156WT-15 Equipment Manual www.stoneitech.com Release 01/2019...
  • Page 15 All rights reserved by STONE Technologies CE Certificate FCC Certificate Certifica ISO9001:2008 STAD156WT-15 Equipment Manual www.stoneitech.com Release 01/2019...

  • Page 16: Naming Rule

    - Official website: https://www.stoneitech.com/ http://www.stone-hmi.com/ - Alibaba platform: http://shuangying-ocean.en.alibaba.com/ http://stonetech.en.alibaba.com/ - Telephone: 0086-10-84351669 - E-mail: info@stone-hmi.com Other support In need of technical queries, please contact STONE representatives in the subsidiaries and branches responsible for your area. STAD156WT-15 Equipment Manual www.stoneitech.com Release 01/2019...
