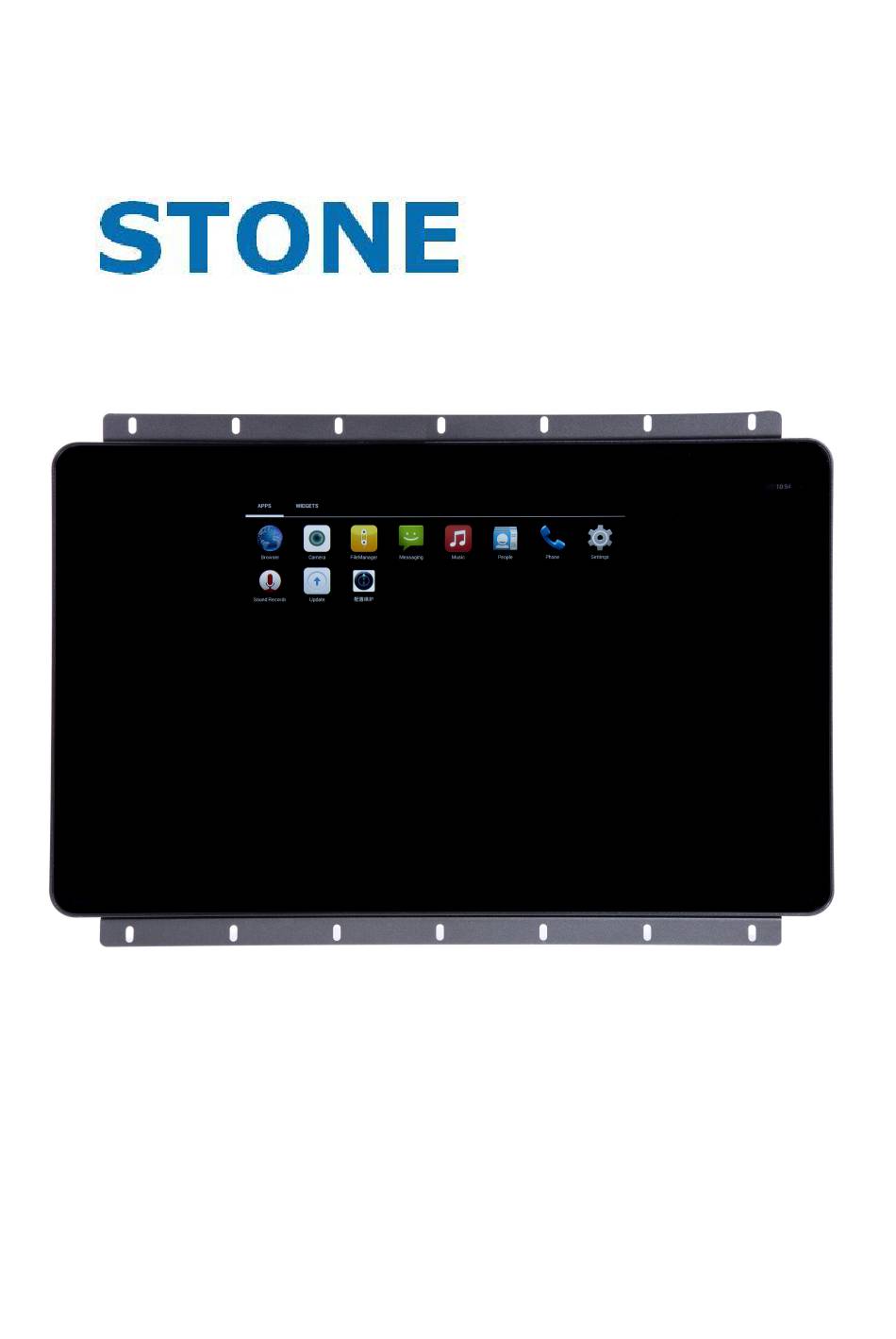

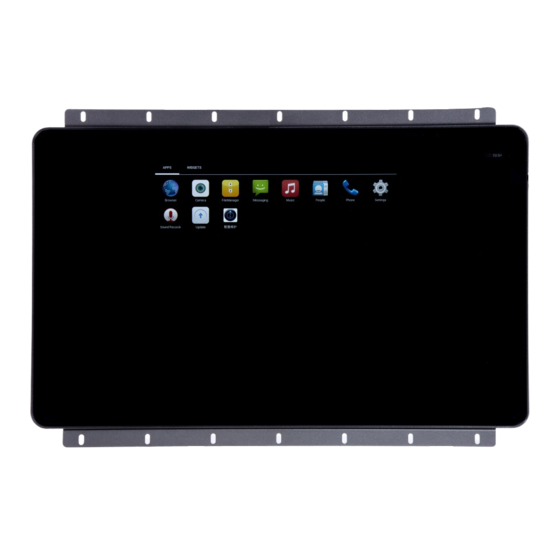

- Page 1 Android industrial control LCD display Model STAD215WT/R-05 Equipment Manual Contents...
-
Page 2: Table Of Contents
All rights reserved by STONE Technologies 1 Android LCD Specification Introduction..............2 1.1 Introduction......................3 1.2 Technical Parameters..................3 2 Interface Description....................5 2.1 Serial Ports......................6 2.2 USB-HOST Interface..................6 2.3 USB-DEVICE Interface..................6 2.4 Network Interface....................7 2.5 Button........................7 2.6 TF Card Holder....................7 2.7 Audio Interface.................... -
Page 3: Introduction
All rights reserved by STONE Technologies 1.1 Introduction STAD215WT/R-05 Android LCD is a new model Android LCD by STONE Tech. It is equipped with 1.2GHz Quad-core Coretex A7. Recommended power supply is DC 12V, the PCB board integrates a variety of peripheral interfaces. - Page 4 All rights reserved by STONE Technologies Parameter Description Quad-core 1.2Ghz ARM Cortex™-A7 System Android 4.4.2 Rooted 2pcs 512MB DDR3 eMMC eMMC Mali400MP2 OpenGLES2.0 VG1.1 Display Parameters Parameter Description Dual eight-way Interface LVDS Resolution 1920x1080 16:9 Ratio Touch Type Capacitive 10 points touch...
-
Page 5: Interface Description
All rights reserved by STONE Technologies Power Supply Parameter Typical Unit Operating Voltage 11.5 12.5 Operating Current 1600 Reliability Test Typical Unit Operating Temperature ℃ Storage Temperature ℃ Operating Humidity Structure Size Description External Dimensions 528.00mm*366.00mm*57.00mm Interface Description STAD215WT/R-05 Equipment Manual www.stoneitech.com... -
Page 6: Serial Ports
All rights reserved by STONE Technologies 2.1 Serial Ports STAD215WT/R-05 is integrated with 4 serial ports. UART0, UART1, UART2, UART3 are RS-232 level converted, All have been treated with anti-static treatment. UART2 and UART3 is an RS-232 and RS-485 hardware multiplex interface, can be connected to an external RS-485 level device. -
Page 7: Network Interface
The default Ethernet is DHCP-assigned IP. If you want to manually configure the IP address, you can configure it in the advanced settings. Button There are two buttons on the STAD215WT/R-05. Button functions as below: 1. UBOOT button: Normally used when programming 2. -
Page 8: Wifi And Bluetooth Module
All rights reserved by STONE Technologies Interface definition： Definition -OUT_R +OUT_R 2.8 WIFI and Bluetooth Module If you only want to use the WIFI function, you can use RTL8188EUS as the WIFI module. If you also want to use the Bluetooth function, you can choose the Bluetooth WIFI 2-in-1 RTL8723BU module. -
Page 9: Gps Module
2.11 LED interface The STAD215WT/R-05 has two LED lights. The POWER light is the power indicator. When the Android screen is normally powered, the POWER light stays on. USR blinks when the system is running normally, and always on when abnormal. -
Page 10: Accessories
All rights reserved by STONE Technologies Accessories 3.1 Antenna Selection Rod antenna FPC antenna 3 meters sucker antenna 3.2 Speaker Speaker Configuration Details Speaker 8R5W 100*45 Speaker 8R5W 100*45 Speaker 4R3W Stereo Speaker PH2.0-4P Stereo Speaker PH2.0-2P TS7033BOX-01-L350 PH1.25-2P/ Speaker 2040... -
Page 11: Physical Dimensions
All rights reserved by STONE Technologies Physical Dimensions STAD215WT/R-05 Equipment Manual www.stoneitech.com Release 01/2019... -
Page 12: International Certification
All rights reserved by STONE Technologies International Certification CE Certificate FCC Certificate ROHS Certificate ISO9001:2008 STAD215WT/R-05 Equipment Manual www.stoneitech.com Release 01/2019... -
Page 13: Naming Rule
Intelligent Products through its Online services as follows: - Official website: https://www.stoneitech.com/ http://www.stone-hmi.com/ - Alibaba platform: http://shuangying-ocean.en.alibaba.com/ http://stonetech.en.alibaba.com/ - Telephone: 0086-10-84351669 - E-mail: info@stone-hmi.com Other support In need of technical queries, please contact STONE representatives in the subsidiaries STAD215WT/R-05 Equipment Manual www.stoneitech.com Release 01/2019... - Page 14 All rights reserved by STONE Technologies and branches responsible for your area. STAD215WT/R-05 Equipment Manual www.stoneitech.com Release 01/2019...
