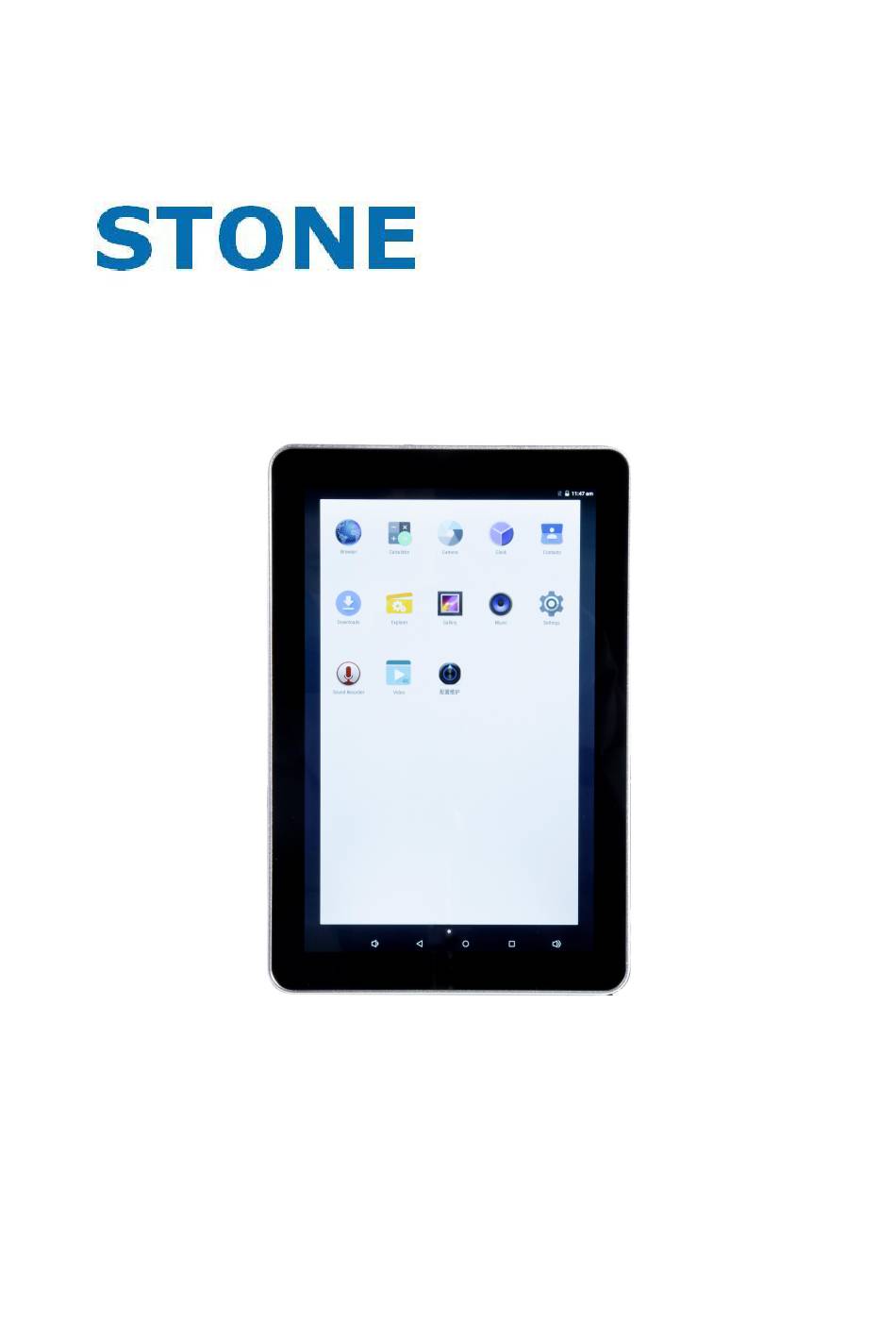

  • Page 1 Android industrial control LCD display Model STAD101WT-15 Equipment Manual...

  • Page 2: Table Of Contents

    All rights reserved by STONE Technologies Contents 1 Android LCD Specification Introduction ................3 1.1 Introduction ........................3 1.2 Technical Parameters ....................4 2 Interface Description ......................6 2.1 Serial Ports ........................6 2.2 USB-HOST Interface ....................7 2.3 USB-DEVICE Interface ....................7 2.4 GPIO Interface .......................

  • Page 3: Android Lcd Specification Introduction

    6 Naming Rule ........................14 Android LCD Specification Introduction 1.1 Introduction STAD101WT-15 Android LCD is a new model Android LCD by STONE Tech. It is equipped with 1.8GHz Quad-core Cortex A17, a high performance low energy cost industrial controller. Dimensions: 256*170*33 mm Weight：1.2 kg...

  • Page 4: Technical Parameters

    All rights reserved by STONE Technologies 1.2 Technical Parameters Main Parameters Parameter Description RK3288/Quad-core 1.8Ghz ARM Cortex™-A17 System Android 5.1.1 Rooted 4pcs 512MB,2G DDR3 eMMC EMMC OpenGLES1.1/2.0/3.0 OPEN VG1.1, OPENCL, Mali-T764 Directx11 Display Parameters Parameter Description Interface MIPI Resolution 800x1280...
  • Page 5 All rights reserved by STONE Technologies WIFI AP6212 Bluetooth & WIFI 2-in-1 Support Bluetooth 4.2 Bluetooth GPS Global positioning, support GPS and BeiDou Dual-satellite 1 (Optional) navigation (optional), this module is integrated with 4G module Standard configuration 25 cm WiFi rod antenna (dBi 3.0), 3m sucker...

  • Page 6: Interface Description

    All rights reserved by STONE Technologies Interface Description 2.1 Serial Ports STAD101WT-15 is integrated with 4 serial ports. UART1, UART2, UART3, UART0 are RS-232 level converted, All have been treated with anti-static treatment. UART3,UART4 is RS232 and RS485 hardware reuse（UART3,UART4 is either for RS232, either for RS485, they can’t be used at the same time）.

  • Page 7: Usb-Host Interface

    GPIO3_D0_U 2.5 Network Interface The STAD101WT-15 is a 100M adaptive Ethernet interface that is brought out via RJ45. If you want to use Android's Ethernet function, you need to plug the network cable into the ETH interface and then turn on the Ethernet function by setting.

  • Page 8: Hdmi Interface

    The default resolution is 1920 * 1080. 2.7 Button STAD101WT-15 has 1 button, the function as follow： 1. FLASH button； (Normally used for programming) Please refer to the user manual on how to use flash button to upload the .img image file.

  • Page 9: Wifi And Bluetooth Module

    900/1800MHz 2.12 GPS Module(Optional) The STAD101WT-15 is equipped with a GPS-enabled 4G module to support fast and accurate positioning. If you need this function, you need to put the GPS antenna in the open space. When you turn on the Android positioning function, you can get the latitude and longitude coordinates of the device at this time.

  • Page 10: Led Interface

    All rights reserved by STONE Technologies 2.13 LED Interface The STAD101WT-15has two LED lights. The POWER light is the power indicator. When the Android screen is normally powered, the POWER light stays on. USR blinks when the system is running normally, and always on when abnormal.

  • Page 11: Accessories

    All rights reserved by STONE Technologies Accessories 3.1 Antenna Selection Rod antenna FPC antenna 3 meters sucker antenna 3.2 Speaker Speaker Configuration Details STAD101WT-15 Equipment Manual www.stoneitech.com Release 01/2019...

  • Page 12: Physical Dimensions

    All rights reserved by STONE Technologies Speaker 8R5W 100*45 Speaker 8R5W 100*45 Speaker 4R3W Stereo Speaker PH2.0-4P Stereo Speaker PH2.0-2P TS7033BOX-01-L350 PH1.25-2P/ Speaker 2040 Cable length 80 cm Cable length 80 cm 4R2W Rectangle Full-band Mono Speaker External,Optional External,Optional Cable length 20 cm...

  • Page 13: International Certification

    All rights reserved by STONE Technologies Interna tional Certifi cation CE Certificate FCC Certificate STAD101WT-15 Equipment Manual www.stoneitech.com Release 01/2019...
  • Page 14 All rights reserved by STONE Technologies ROHS Certificate ISO9001:2008 Naming Rule This chapter contains the naming rule: As sample STAD070WC-01 Code Explain STAD101WT-15 Equipment Manual www.stoneitech.com Release 01/2019...
  • Page 15 - Official website: https://www.stoneitech.com/ http://www.stone-hmi.com/ - Alibaba platform: http://shuangying-ocean.en.alibaba.com/ http://stonetech.en.alibaba.com/ - Telephone: 0086-10-84351669 - E-mail: info@stone-hmi.com Other support In need of technical queries, please contact STONE representatives in the subsidiaries and branches responsible for your area. STAD101WT-15 Equipment Manual www.stoneitech.com Release 01/2019...
