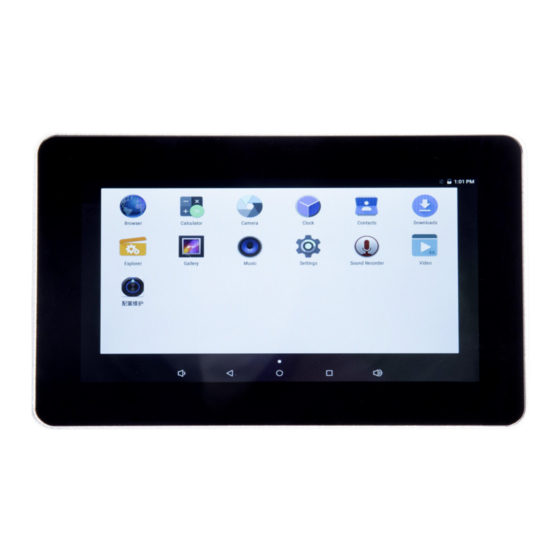

- Page 1 Android industrial control LCD display Model STAD080WT-15 Equipment Manual...
-
Page 2: Table Of Contents
All rights reserved by STONE Technologies Contents 1 Android LCD Specification Introduction ..............3 1.1 Introduction ......................3 1.2 Technical Parameters ..................3 2 Interface Description ....................6 2.1 Serial Ports ......................6 2.2 USB-HOST Interface ..................7 2.3 USB-DEVICE Interface ..................7 2.4 GPIO Interface .................... -
Page 3: Android Lcd Specification Introduction
Android LCD Specification Introduction 1.1 Introduction STAD080WT-15 Android LCD is a new model Android LCD by STONE Tech. It is equipped with 1.1GHz Quad-core Coretex A7. Recommended power supply is DC 9-30V, the PCB board integrates a variety of peripheral interfaces. -
Page 4: Technical Parameters
All rights reserved by STONE Technologies 1.2 Technical Parameters Main Parameters Parameter Description Quad-core 1.1Ghz ARM Cortex™-A7 System Android 7.1 Rooted eMMC EMMC Display Parameters Parameter Description Interface MIPI Resolution 800x1280 16:9 Ratio Touch Type Capacitive 5 points touch Luminance... - Page 5 All rights reserved by STONE Technologies Support Bluetooth 4.2 Bluetooth 1 (Optional) 1 (Optional) GPS Global positioning Buttons 1 Power, 1 Back, 1Flash Power Supply Parameter Typical Unit Operating Voltage Operating Current Reliability Test Typical Unit Operating Temperature ℃ Storage Temperature ℃...
-
Page 6: Interface Description
Technologies Interface Description 2.1 Serial Ports STAD080WT-15 is integrated with 4 serial ports. UART0, UART1, UART2, UART3 are RS-232 level converted. In addition, UART2 is RS232 and RS485 hardware multiplexing (UART2 is either used for RS232 or RS485, and the two cannot be used at the same time).This is influenced by working environment and wires. -
Page 7: Usb-Host Interface
O6(GPIO_28) 2.5 Network Interface STAD080WT-15 is a 100M adaptive Ethernet interface that is brought out via RJ45. If you want to use Android's Ethernet function, you need to plug the network cable into the ETH interface and then turn on the Ethernet STAD080WT-15 Equipment Manual www.stoneitech.com... -
Page 8: Button
8R/1.5W amplifier circuit. 2.9 WIFI and Bluetooth Module STAD080WT-15 is equipped with Bluetooth WIFI 2-in-1 module. Can support Bluetooth 4.2 protocol 2.4G WIFI, after pairing, it supports the function of transferring files with mobile phones and other devices. -
Page 9: Gps Module
2.12 LED Interface The STAD080WT-15 has two LED lights. The POWER light is the power indicator. When the Android screen is normally powered, the POWER light stays on. USR blinks when the system is running normally, and always on when abnormal. -
Page 10: Accessories
All rights reserved by STONE Technologies Accessories 3.1 Antenna Selection Rod antenna FPC antenna 3 meters sucker antenna 3.2 Speaker Speaker Configuration Details STAD080WT-15 Equipment Manual www.stoneitech.com Release 01/2019... -
Page 11: Physical Dimensions
All rights reserved by STONE Technologies Speaker 8R5W 100*45 Speaker 8R5W 100*45 Speaker 4R3W Stereo Speaker PH2.0-4P Stereo Speaker PH2.0-2P TS7033BOX-01-L350 PH1.25-2P/ Speaker 2040 Cable length 80 cm Cable length 80 cm 4R2W Rectangle Full-band Mono Speaker External,Optional External,Optional Cable length 20 cm... -
Page 12: International Certification
All rights reserved by STONE Technologies Interna tional Certifi cation CE Certificate FCC Certificate STAD080WT-15 Equipment Manual www.stoneitech.com Release 01/2019... -
Page 13: Naming Rule
All rights reserved by STONE Technologies ROHS Certificate ISO9001:2008 Naming Rule This chapter contains the naming rule: As sample STAD070WC-01 STAD080WT-15 Equipment Manual www.stoneitech.com Release 01/2019... - Page 14 - Official website: https://www.stoneitech.com/ http://www.stone-hmi.com/ - Alibaba platform: http://shuangying-ocean.en.alibaba.com/ http://stonetech.en.alibaba.com/ - Telephone: 0086-10-84351669 - E-mail: info@stone-hmi.com Other support In need of technical queries, please contact STONE representatives in the subsidiaries and branches responsible for your area. STAD080WT-15 Equipment Manual www.stoneitech.com Release 01/2019...
