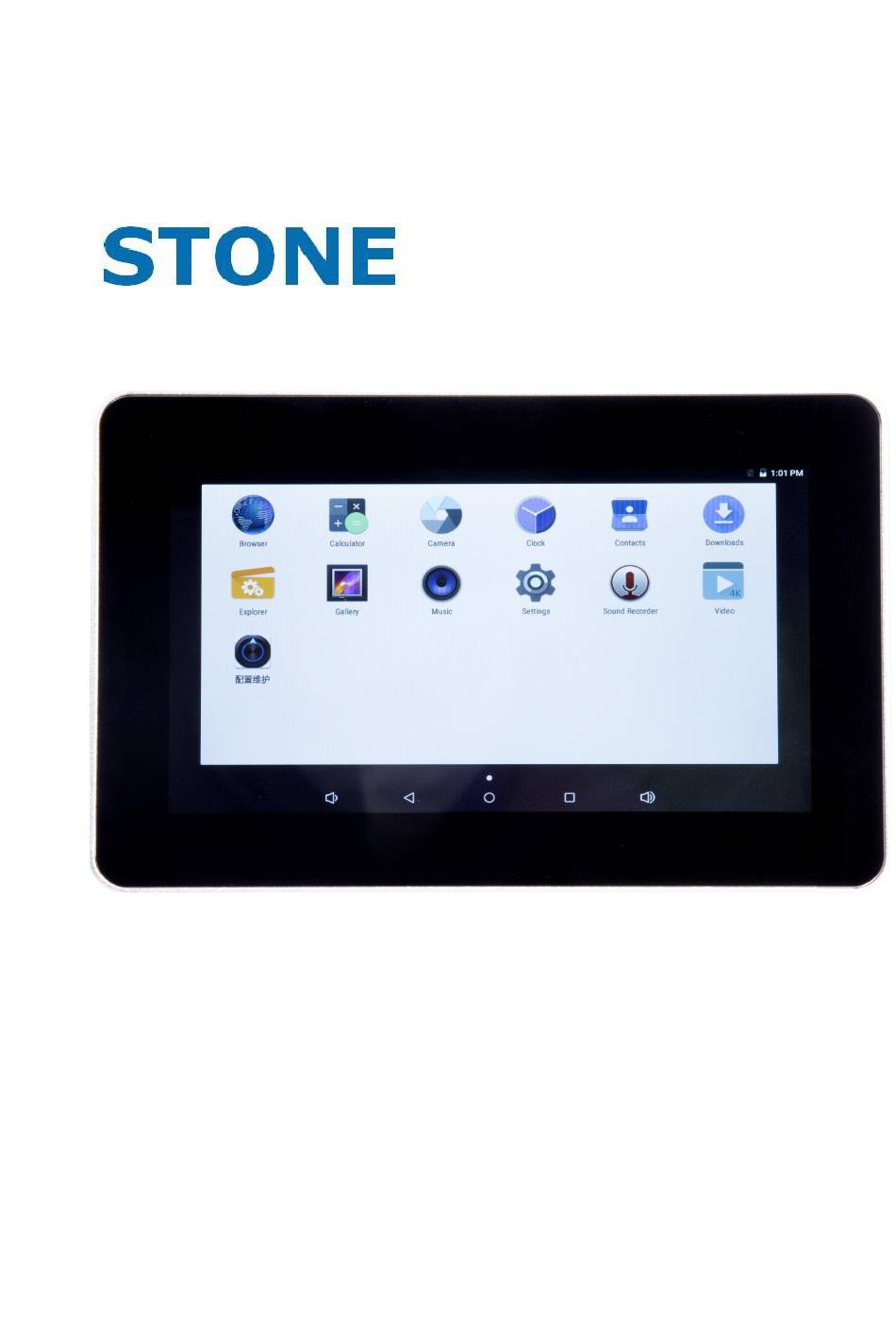

- Page 1 Android industrial control LCD display Model STAD156WT-15 Equipment Manual...
-
Page 2: Table Of Contents
All rights reserved by STONE Technologies Contents 1 Android LCD Specification Introduction..............3 1.1 Introduction......................3 1.2 Technical Parameters..................4 2 Interface Description....................6 2.1 Serial Ports......................6 2.2 USB-HOST Interface..................7 2.3 USB-DEVICE Interface..................7 2.4 GPIO Interface....................7 2.5 Network Interface....................8 2.6 HDMI interface....................8 2.7 Button........................8... -
Page 3: Android Lcd Specification Introduction

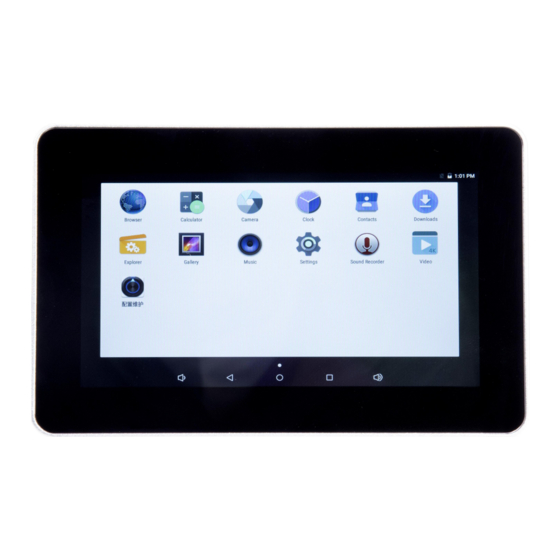

Technologies Android LCD Specification Introduction 1.1 Introduction STAD156WT-15 Android LCD is a new model Android LCD by STONE Tech. It is equipped with 1.8GHz Quad-core Coretex A17. Recommended power supply is DC 12V, the PCB board integrates a variety of peripheral interfaces. -
Page 4: Technical Parameters
All rights reserved by STONE Technologies 1.2 Technical Parameters Main Parameters Parameter Description Quad-core 1.8Ghz ARM Cortex™-A17 System Android 5.1.1 Rooted 4pcs 512MB,2G DDR3 eMMC EMMC OpenGLES1.1/2.0/3.0 OPEN VG1.1, OPENCL, Mali-T764 Directx11 Display Parameters Parameter Description Interface Resolution 1920x1080 16:9 Ratio... - Page 5 All rights reserved by STONE Technologies External 4 USB HOST, One way 4 HOST, 1 DEVICE multiplexing with touch control Two channel 8Ω/3W speaker, SPK connector is PH2.0MM-4P, Audio 1 MIC, 2 SPK (Built-in) the speaker is standard 10/100Mbps self-adaptive...
-
Page 6: Interface Description
All rights reserved by STONE Technologies Interface Description 2.1 Serial Ports STAD156WT-15 is integrated with 4 serial ports. UART1, UART2, UART3, UART0 are RS-232 level converted, All have been treated with anti-static treatment. UART3,UART4 is RS232 and RS485 hardware reuse（UART3,UART4 is either for RS232, either for RS485, they can’t be used at the same time）. -
Page 7: Usb-Host Interface
TtyS4 RS485 2.2 USB-HOST Interface The STAD156WT-15 has integrated 4 USB-HOST. These 4 USB interfaces can be connected to a variety of USB peripherals, such as USB keyboard and mouse, U disk, USB interface camera (support UVC protocol) and other commonly used peripherals. One of them is multiplexed with the capacitive touch interface. -
Page 8: Network Interface
GPIO3_D0_U 2.5 Network Interface The STAD156WT-15 is a 100M adaptive Ethernet interface that is brought out via RJ45. If you want to use Android's Ethernet function, you need to plug the network cable into the ETH interface and then turn on the Ethernet function by setting. -
Page 9: Wifi And Bluetooth Module
-OUT_L -OUT_R +OUT_R 2.10 WIFI and Bluetooth Module STAD156WT-15 is equipped with Bluetooth WIFI 2-in-1 AP6212 module. AP6212 can support Bluetooth 4.2 protocol 2.4G WIFI, after pairing, it supports the function of transferring files with mobile phones and other devices. -
Page 10: Gps Module
2.13 LED interface The STAD156WT-15 has two LED lights. The POWER light is the power indicator. When the Android screen is normally powered, the POWER light stays on. USR blinks when the system is running normally, and always on when abnormal. - Page 11 All rights reserved by STONE Technologies Speaker Configuration Details Speaker 8R5W 100*45 Speaker 8R5W 100*45 Speaker 4R3W Stereo Speaker PH2.0-4P Stereo Speaker PH2.0-2P TS7033BOX-01-L350 PH1.25-2P/ Speaker 2040 Cable length 80 cm Cable length 80 cm 4R2W Rectangle Full-band Mono Speaker...
-
Page 12: Physical Dimensions
All rights reserved by STONE Technologies Physical Dimensions STAD156WT-15 Equipment Manual www.stoneitech.com Release 01/2019... -
Page 13: International Certification
All rights reserved by STONE Technologies International Certification CE Certificate FCC Certificate ROHS Certificate ISO9001:2008 STAD156WT-15 Equipment Manual www.stoneitech.com Release 01/2019... -
Page 14: Naming Rule
- Official website: https://www.stoneitech.com/ http://www.stone-hmi.com/ - Alibaba platform: http://shuangying-ocean.en.alibaba.com/ http://stonetech.en.alibaba.com/ - Telephone: 0086-10-84351669 - E-mail: info@stone-hmi.com Other support In need of technical queries, please contact STONE representatives in the subsidiaries and branches responsible for your area. STAD156WT-15 Equipment Manual www.stoneitech.com Release 01/2019...
