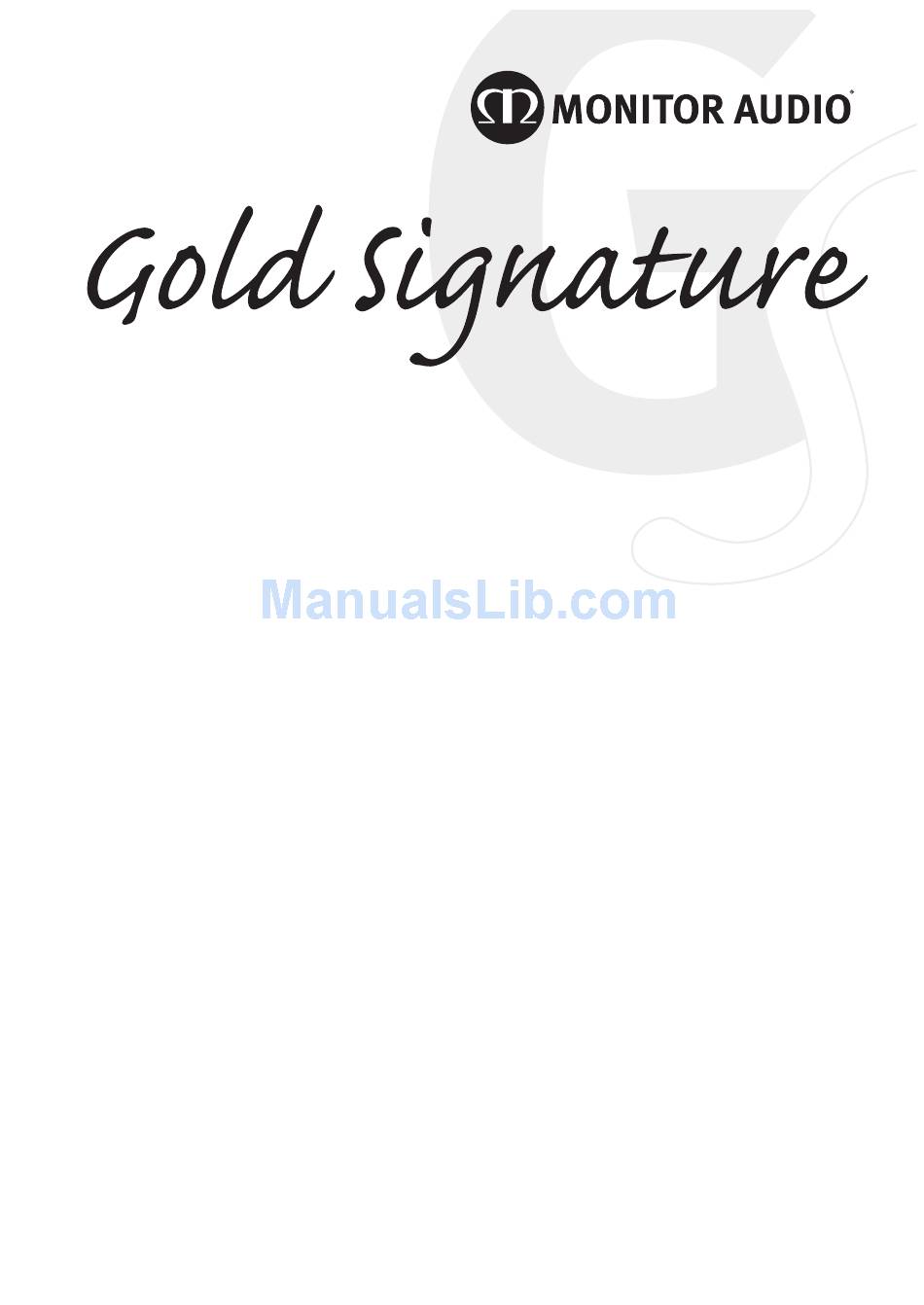

- Page 1 GS FX & GS LCR Owners Manual...
-
Page 2: Table Of Contents
Contents Page Introduction Safety Instructions Gold GS Centre (LCR) Gold GS FX Setting Up The GS FX Front Panel Switches Positioning Fixing Your GS FX To A Wall Connecting your Gold GS Loudspeakers Guarantee and Service Data Protection Owner Information Warranty Card –... -
Page 3: Introduction
Introduction Thank you for purchasing Monitor Audio Gold Signature loudspeakers. The new Gold signature range has been designed from scratch with improvements in every area, whilst the ethos of the original Gold reference series has been preserved. All parts are made from die-cast alloys and in the case of the... -
Page 4: Safety Instructions
When it is time to replace this product please help us protect the environment by disposing of it in an appropriate and responsible manner. Further details are available from www.monitoraudio.co.uk Natural wood veneers Monitor Audio takes great pride in providing a high quality product. only hand selected... -
Page 5: Gold Gs Centre (Lcr)
(inch) mm (inch) 2 x 6” RST ® Bass/ 206 x 560 mid-range driver 12.5 / (27.5) x 230 1 x 25mm Gold (8 1/8” x Dome 22 1/16”x C-CAM ® 9 1/16”) tweeter. © Monitor Audio Ltd 2005... -
Page 6: Gold Gs Fx
Your Gold GS FX The new GSFX is a completely new design from Monitor Audio. A combined di-pole and monopole speaker for use in high-end or professional cinema applications. In monopole mode the front firing RST 2 bass/ mid-range and C-CAM tweeter ®... -
Page 7: Setting Up The Gs Fx
AV amplifier/ receiver, and determines the mode of the GSFX (mono/ dipole). For the trigger to work, the monopole/ dipole switch on the front needs to be set to ‘monopole’. Please refer to your AV amplifier manual for further instruction. © Monitor Audio Ltd 2005... -
Page 8: Front Panel Switches
Front Panel Switches Tweeter Attenuation Switch. This switch adjusts the level of the main high frequency tweeter unit. In the middle position there is no attenuation. Place it in the ‘-‘ position and the high frequencies will be attenuated by 3dB. Place it in the ‘+’... -
Page 9: Positioning
Positioning 5.1 System Example (large) 5.1 System Example (small) © Monitor Audio Ltd 2005... -
Page 10: Positioning
Positioning 7.1 System Example (GS10 Rear) 7.1 System Example (GSFX Rear) © Monitor Audio Ltd 2005... -
Page 11: Fixing Your Gs Fx To A Wall
NOTE: You can use further fixing points along the slots if you desire. Hang your GS FX on to the fixing plate and sit back and enjoy. For recommendations on where to hang your GS FX please refer to the FAQ’s on our web site: www.monitoraudio.co.uk © Monitor Audio Ltd 2005... -
Page 12: Connecting Your Gold Gs Loudspeakers
flat object underneath them and carefully levering them free. The GS LCR can be either single or bi-wired. The GSFX can only be single wired. Monitor Audio always recommends bi-wiring your loudspeakers for improved sound quality. Please see: www.monitoraudio.co.uk/gettingthebestfromyourspeakers... -
Page 13: Guarantee And Service
The equipment should be returned in its original packaging to the original supplier where possible, or to any other authorised Monitor Audio dealer. If it is not possible to return the equipment by hand, then it should be sent carriage prepaid via a reputable carrier. -
Page 14: Data Protection
Data Protection We at Monitor Audio are committed to respecting the wishes and privacy of our customers. Any information you provide will be held in the strictest confidence and only used within the Monitor Audio organisation for the provision of services such as warranty claims or spare parts. - Page 15 What is the intended use of the speakers? Music Movies Both Is the purchase - Replacement/additional purchase? Your first purchase What made you purchase Monitor Audio? Existing Owner Magazine Review Dealer Recommedation Other please specify What music do you listen to?
