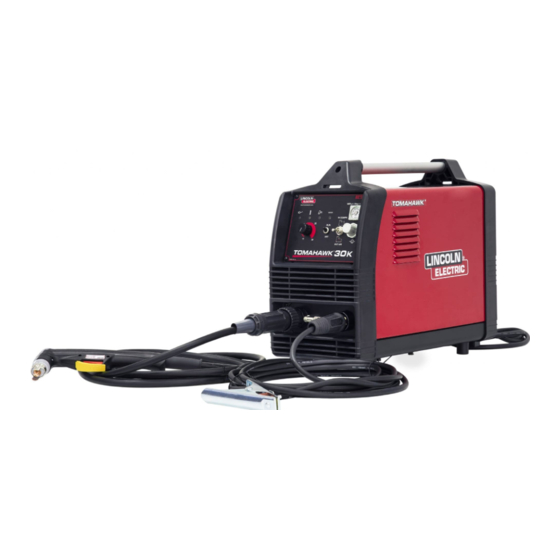

- Page 1 IM3184 10/2022 REV00 ® TOMAHAWK 30K & 45 OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland www.lincolnelectric.eu...
-
Page 2: Table Of Contents
12/05 THANK YOU! For choosing the QUALITY of the Lincoln Electric products. Please check packaging and equipment for damage. Claims for material damaged in shipment must be notified immediately to the dealer. For ease of use, please enter your product identification data in the table below. Model Name, Code & Serial Number can be found on the machine rating plate. -
Page 3: Technical Specifications
Technical Specifications NAME INDEX TOMAHAWK ® K12038-3 TOMAHAWK ® K14391-1 INPUT Input Voltage U Input Power at Rated Output EMC Class Frequency 2,7 kW @ 100% Duty Cycle TOMAHAWK ® 230V±15% 50Hz 3,3 kW @ 60% Duty Cycle 1,6 kW @ 100% Duty Cycle 120V±15% 2,4 kW @ 60% Duty Cycle ®... - Page 4 OTHERS Operating Temperature Storage Temperature ® TOMAHAWK from -10 °C to +40 °C from -25 °C to 55°C ® TOMAHAWK from -10 °C to +40 °C from -25 °C to 55°C Protection Rating ® TOMAHAWK IP23S TOMAHAWK ® English English...
-
Page 5: Eco Design Information
ECO design information The equipment has been designed in order to be compliant with the Directive 2009/125/EC and the Regulation 2019/1784/EU. Efficiency and idle power consumption: Efficiency when max power Index Name Equivalent model consumption / Idle power consumption ® K12038-3 TOMAHAWK 84% / 43W... - Page 6 Typical gas usage for MIG/MAG equipment: DC electrode positive Wire Wire Feeding Gas flow Material type diameter Shielding Gas Current Voltage [m/min] [l/min] [mm] Carbon, low 0,9 ÷ 1,1 95 ÷ 200 18 ÷ 22 3,5 – 6,5 Ar 75%, CO alloy steel Aluminum 0,8 ÷...
-
Page 7: Electromagnetic Compatibility (Emc)
If any electromagnetic disturbances are detected the operator must put in place corrective actions to eliminate these disturbances with, if necessary, assistance from Lincoln Electric. Before installing the machine, the operator must check the work area for any devices that may malfunction because of electromagnetic disturbances. -
Page 8: Safety
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or equipment damage. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation. - Page 9 Cutting sparks can cause explosion or fire. Keep flammables away from cutting. Do not cut or gouge near flammables. Have a fire extinguisher nearby, and have a watch person ready to use it. Do not cut on drums or any closed container.
-
Page 10: Introduction
Introduction ® ® TOMAHAWK 30K allows for cutting and grid. TOMAHAWK 45 allows for cutting, grid and gouging. The complete package TOMAHAWK ® 30K contains: The complete package TOMAHAWK ® 45 contains: Work lead – 6m, Work lead – 6m, ... - Page 11 1. User Interface TOMAHAWK ® 30K: User Controls and Operational Features ® Interface TOMAHAWK 30K chapter. Front panel TOMAHAWK ® 2. User Interface TOMAHAWK ® 45: See User Interface ® TOMAHAWK 45 chapter. 3. Work Lead Connector. 4. Compressor Internal Air Filter: (TOMAHAWK ®...
- Page 12 ® ® User Interface TOMAHAWK User Interface TOMAHAWK Figure 5 Figure 4 18. Home Button: Allows the user to return to 9. LED Indicator Power Switch: Lights up when the main view. the equipment is ON and connect to the power supply.
- Page 13 26. User Setup Menu: Displays the available processes Select Program and parameters. Press the control [19], to get access of user setup menu. Press [19] again to display the available process. Select a process by turning the control and confirm the selection [19].
- Page 14 ® ® TOMAHAWK 45 – cut TOMAHAWK 45 – gouging After pressing the button in the torch: After pressing the button in the torch: Preflow – purge flow before ignition of the pilot current Preflow – purge flow before ignition of the pilot current –...
- Page 15 TOMAHAWK ® 45 enables be cut, grid and gouging. Preparing the equipment ® TOMAHAWK 45 does not include the accessories for gauging, but the one can be purchased separately (see TOMAHAWK ® 30K enables the cutting and grid process. "Accessories" chapter). WARNING WARNING When preparing to work, make sure you have all materials...
- Page 16 Cutting Speed The cutting speed is a function of: In order to provide indications on the most suitable setting, the following table was established, based on tests Thickness and type of material to be cut. performed on an automatic test-bench: the best results ...
- Page 17 Shield cup body is damaged or incorrectly installed. Tighten the shield cup body. WARNING If for any reason you are unable to perform the recommended actions in the event of a fault, contact the nearest authorized Lincoln Electric service facility. English English...
- Page 18 We respond to our customers based on the best be lost. information in our possession at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, The frequency of the maintenance operations may vary in...
-
Page 19: Weee
12/05 Part List reading instructions Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed. Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine. -
Page 20: Accessories
Accessories ® TOMAHAWK W100000325 TORCH LC-30 4M CEN. 5PIN LE W100000355 GROUND CABLE 16MM 6M W0300699A CUTTING CIRCLE W0200002 TWO-WHEELED UNDERCARRIAGE W8800117R FILTER CARTRIDGE ® TOMAHAWK W100000327 TORCH LC-45 6M CEN. 5PIN LE W100000355 GROUND CABLE 16MM 6M W100000338 CUTTING CIRCLE W0200002 TWO-WHEELED UNDERCARRIAGE W8800117R... -
Page 21: Connection Configuration
Connection configuration English English...
