Item Component
8 System battery
9 Internal USB 2.0 port
10 Expansion slot 2, PCIe3 ×4 (1) For additional hardware capabilities, install a compatible low-profile PCIe
11 Expansion slot 1, PCIe3 ×8 (8,
4, 1)
1
These are SATA 6Gb/s ports.
2
This expansion slot is open-ended, which enables down-plugging. Down-plugging means a larger-width expansion board can be
installed in a smaller-width connector. For this server, the expansion slot supports low-profile expansion boards with a physical
connector link widths of up to ×16. The board operates at the highest common negotiable link width specified for the slot.

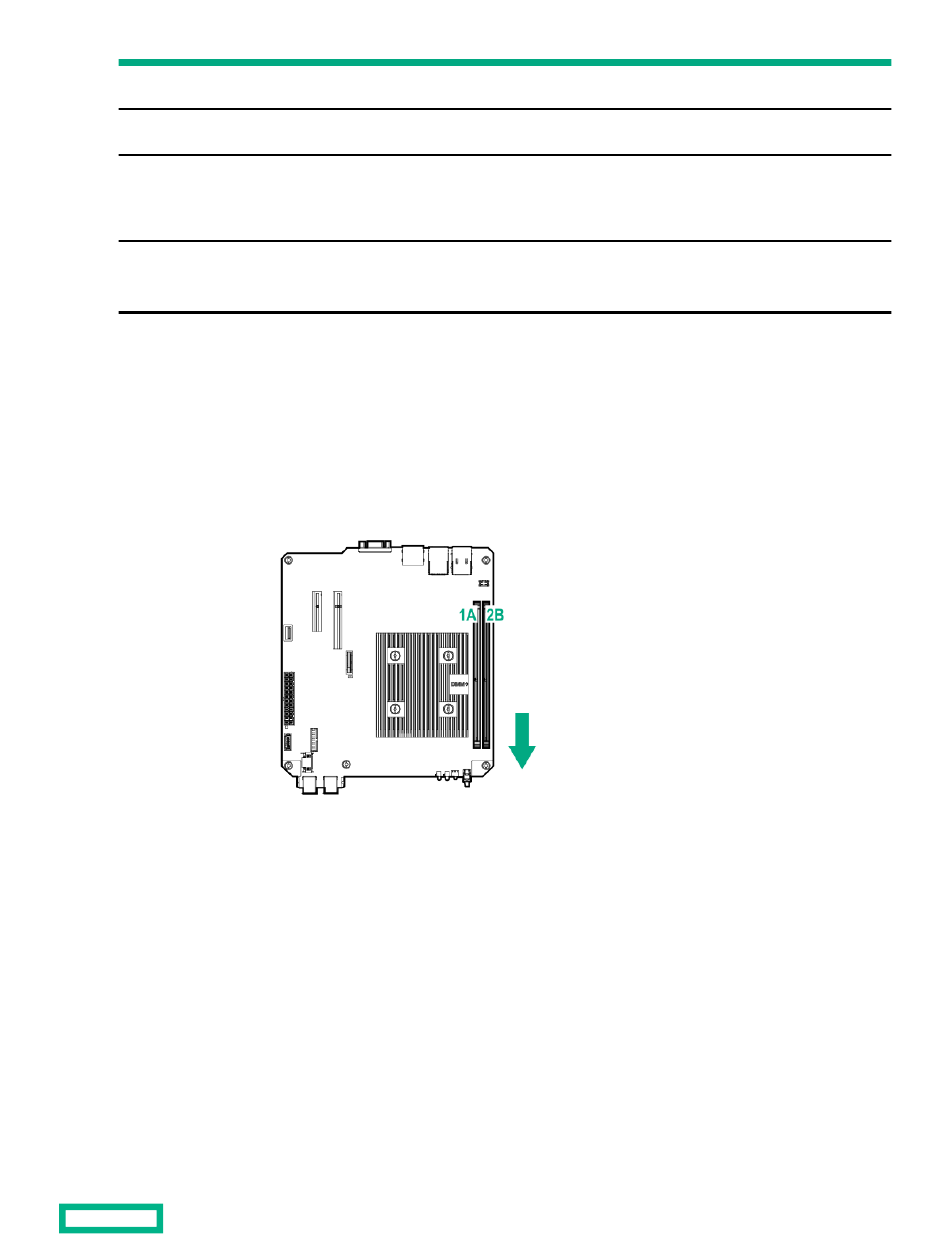

DIMM slot locations

The DIMM slots are numbered 1 and 2. The arrow in the following illustration points to the front of the server.

DIMM identification

To determine DIMM characteristics, see the label attached to the DIMM. The information in this section helps you to use
the label to locate specific information about the DIMM.
Description
This battery provides power to the server real-time clock and BIOS settings.
Connect internal USB devices to this port.
expansion board here. This expansion slot supports expansion boards with a
physical connector link widths of up to ×16.
For additional hardware capabilities, install a compatible low-profile PCIe
expansion board here. This expansion slot supports expansion boards with a
physical connector link widths of up to ×16.
2
2
