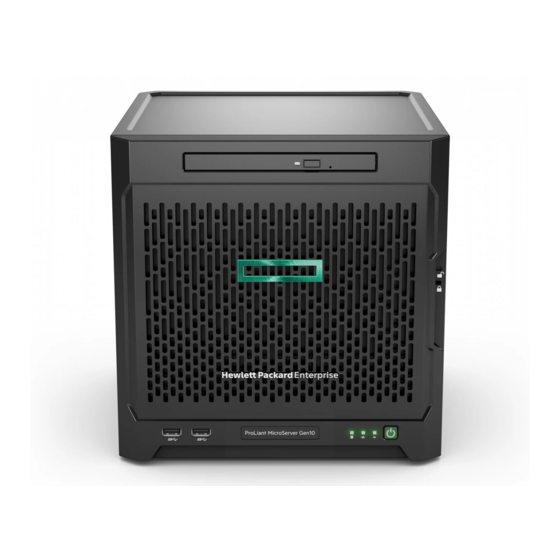

HP Enterprise ProLiant MicroServer Gen10 User Manual
  1. Manuals
  2. Brands
  3. HP Manuals
  4. Server
  5. Enterprise ProLiant MicroServer Gen10
  6. User manual
HP Enterprise ProLiant MicroServer Gen10 User Manual

HP Enterprise ProLiant MicroServer Gen10 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
HPE ProLiant MicroServer Gen10 User Guide
Abstract
This document is for the person who installs, administers, and troubleshoots servers and storage systems. Hewlett
Packard Enterprise assumes you are qualified in the servicing of computer equipment and trained in recognizing hazards
in products with hazardous energy levels.
Part Number: 872677-005
Published: October 2020
Edition: 5

Advertisement

Table of Contents
loading

Related Manuals for HP Enterprise ProLiant MicroServer Gen10

Summary of Contents for HP Enterprise ProLiant MicroServer Gen10

  • Page 1 HPE ProLiant MicroServer Gen10 User Guide Abstract This document is for the person who installs, administers, and troubleshoots servers and storage systems. Hewlett Packard Enterprise assumes you are qualified in the servicing of computer equipment and trained in recognizing hazards in products with hazardous energy levels.
  • Page 2 © Copyright 2017–2020 Hewlett Packard Enterprise Development LP Notices The information contained herein is subject to change without notice. The only warranties for Hewlett Packard Enterprise products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.

  • Page 3: Table Of Contents

    Contents Component identification....................6 Front panel components......................................6 Front panel LEDs and buttons....................................7 Rear panel components........................................8 Rear panel LEDs..........................................9 System board components..................................... 10 DIMM slot locations....................................11 DIMM identification....................................11 PCIe slot description....................................13 Drive numbering..........................................14 Drive screws.............................................15 Setup..........................16 Optional services...........................................16 Initial server installation......................................16 HPE Installation Service..................................
  • Page 4 Remove the system board assembly............................... 33 Hardware options installation..................35 Introduction............................................35 Drive options........................................... 35 Drive support information..................................35 Drive installation guidelines..................................35 Installing an LFF drive....................................36 Installing an SFF drive....................................37 Media bay options........................................41 Installing an SSD......................................41 Installing an optical drive..................................45 Memory support..........................................49 DIMM population information................................49 DIMM handling guidelines..................................50...
  • Page 5 Accessing the Marvell BIOS Utility under legacy boot mode....................70 Marvell Storage Utility ......................................71 Installing the Marvell Storage Utility............................... 71 HPE Smart Storage Administrator..................................71 USB support ............................................72 Keeping the system current....................................72 Firmware ..........................................72 Firmware update......................................72 Drivers, firmware, and software updates ............................. 74 Operating System Version Support..............................74 HPE Pointnext Portfolio..................................74 Proactive notifications....................................75...

  • Page 6: Component Identification

    Component identification This chapter describes the external and internal server features and components. Front panel components Item Component Description Drive bays (4, behind the front bezel) By default, the drive bays support 3.5-inch LFF SATA drives. To support 2.5-inch SFF drives, install the SFF drive converter option.

  • Page 7: Front Panel Leds And Buttons

    Front panel LEDs and buttons Item Description Status Drive activity LED Flashing green = Ongoing drive activity Off = No drive activity This LED only reflects the status of LFF/SFF drives and SSD that are connected to the onboard SATA ports. NIC status LED Solid green = Linked to network Flashing green = Network active...

  • Page 8: Rear Panel Components

    If the server does not power on, verify the following items: • The site power is available. • The power cord is properly connected to the server power jack and to a working power source. • The internal power supply cable is properly connected to the system board. Rear panel components Item Component...

  • Page 9: Rear Panel Leds

    Item Component Description Display port 2 Connects to a digital display device, such as a high-resolution set top boxes or TV displays. Connect USB 2.0 devices to these ports. USB 2.0 ports (2) Connect USB 3.0 devices to these ports. USB 3.0 support after POST USB 3.0 ports (2) varies by operating system.

  • Page 10: System Board Components

    Item Description Status NIC link LED Solid green = Link exists Off = No link exists NIC status LED Solid green = Linked to network Flashing green = Network active Off = No network activity System board components Item Component Description Connects the fan cable.

  • Page 11: Dimm Slot Locations

    Item Component Description This battery provides power to the server real-time clock and BIOS settings. System battery Connect internal USB devices to this port. Internal USB 2.0 port Expansion slot 2, PCIe3 ×4 (1) For additional hardware capabilities, install a compatible low-profile PCIe expansion board here.
  • Page 12 Item Description Definition Capacity 8 GB 16 GB 32 GB 64 GB 128 GB Rank 1R = Single-rank 2R = Dual-rank 4R = Quad-rank 8R = Octal-rank Data width on DRAM x4 = 4-bit x8 = 8-bit x16 = 16-bit Memory generation PC4 = DDR4 Maximum memory speed...

  • Page 13: Pcie Slot Description

    Item Description Definition CAS latency P = CAS 15-15-15 T = CAS 17-17-17 U = CAS 20-18-18 V = CAS 19-19-19 (for RDIMM, LRDIMM) V = CAS 22-19-19 (for 3DS TSV LRDIMM) DIMM type R = RDIMM (registered) L = LRDIMM (load reduced) E = UDIMM (unbuffered ECC) PCIe slot description Component identification...

  • Page 14: Drive Numbering

    Item Description Definition Each PCIe version corresponds to a specific data transfer rate PCI Express version between the processor and peripheral devices. Generally, a version update corresponds to an increase in transfer rate. • PCIe 1.x • PCIe 2.x • PCIe 3.x The PCIe technology is under constant development.

  • Page 15: Drive Screws

    Item Description LFF/SFF drives To support 2.5-inch SFF drives, install the SFF drive converter option. Solid-state drive or optical disc drive Drive screws There are 16 T-15 Torx screws located above the drive bays. Use these screws to install LFF or SFF drives in the server. Component identification...

  • Page 16: Setup

    Setup Optional services Delivered by experienced, certified engineers, HPE support services help you keep your servers up and running with support packages tailored specifically for HPE ProLiant systems. HPE support services let you integrate both hardware and software support into a single package. A number of service level options are available to meet your business and IT needs.

  • Page 17: Setting Up The Server

    https://www.hpe.com/support/installation-service Setting up the server Prerequisites Before setting up the server: • This server supports Class 2 UEFI implementation. UEFI Class 2 implementation supports both UEFI boot mode and legacy BIOS boot mode. The boot mode is configured in the Aptio Setup Utility. When the server is configured for UEFI boot mode, observe the appropriate operating system, boot mode, network device, and controller requirements.
  • Page 18 Connect the network cable: a. Connect one end of the network cable to the NIC port. b. Connect the other end of the network cable to a network jack or a network device, such as router or LAN switch. Connect the power cord: a.
  • Page 19 Power on the server Press the Power On/Standby button. Verify that the system power LED changes to green. Update the following: System ROM • • Storage controller • Network controller Set up the storage Set up the storage. Do one of the following: If the drives are connected to the onboard LFF/SFF drive SATA port, set up RAID using the Marvell BIOS •...

  • Page 20: Optimum Environment

    Register the server 11. To experience quicker service and more efficient support, register the server at the HPE website: https://myenterpriselicense.hpe.com Optimum environment When installing the server, select a location that meets the environmental requirements described in this section. Site requirements The server may be located in an office space or a purpose-made equipment room.

  • Page 21: Electrical Grounding Requirements

    CAUTION: Protect the server from power fluctuations and temporary interruptions with a regulating uninterruptible power supply. This device protects the hardware from damage caused by power surges and voltage spikes and keeps the system in operation during a power failure. When installing more than one server, you might have to use additional power distribution devices to safely provide power to all devices.

  • Page 22: Electrostatic Discharge

    Electrostatic discharge Be aware of the precautions you must follow when setting up the system or handling components. A discharge of static electricity from a finger or other conductor may damage system boards or other static-sensitive devices. This type of damage may reduce the life expectancy of the system or component.
  • Page 23 Press the Enter key. Use the arrow keys to scroll through the list of free physical drives. To select/deselect the physical drive to use to create the drive array, press the spacebar. An asterisk (*) appears when a drive is selected. After selecting the physical drives, press the Enter key.

  • Page 24: Setting Up Raid Using The Hpe Rapid Setup Software

    a. Select the Name field. b. Enter a new name. c. Press the Enter key. 11. Select Next. 12. Press the Enter key. A dialog box appears to confirm the drive array creation. 13. Press Y to create the drive array. The new drive array appears in the Topology pane.

  • Page 25: Install An Os Using The Hpe Rapid Setup Software

    Install an OS using the HPE Rapid Setup Software Use the HPE Rapid Setup Software to install the supported versions of Windows, ClearOS, ClearVM, and VMware. HPE Rapid Setup Software does not support installing a Linux operating system. Prerequisites • Make sure the HPE Rapid Setup Software USB drive is plugged into the server USB port.

  • Page 26: Operations

    Operations This chapter describes the hardware operations carried out prior to and after installing or removing a hardware option, or performing a server maintenance or troubleshooting procedure. Before performing these hardware operations, review and observe the server warnings and cautions. Power up the server Press the Power On/Standby button.

  • Page 27: Remove The Front Bezel

    For more information, see the lock documentation. 2. Connect all peripheral cables to the server. 3. Connect the power cord to the server power jack, and then to the AC source. 4. Secure the power cord and rear panel cables based on the standard cable management practices. 5.

  • Page 28: Removing An Unlocked Front Bezel

    Removing an unlocked front bezel Prerequisites 1. Power down the server. 2. Disconnect the power cord from the AC source, and then from the server. 3. Disconnect all peripheral cables from the server. Procedure 1. Open the front bezel. The front bezel is a removable part. Opening the bezel will loosen it from the front panel. 2.

  • Page 29: Install The Front Bezel

    Install the front bezel To cover the drive bays, install the front bezel. Procedure 1. Attach the bezel to the front panel, and then close it. 2. If you prefer to secure the bezel to the chassis, do the following: a.

  • Page 30: Remove The Chassis Cover

    c. Install the chassis cover. Remove the chassis cover To access the front bezel lock and the internal components, remove the chassis cover. Procedure 1. If installed, unlock and remove the security padlock and/or the Kensington security lock. For more information, see the lock documentation. 2.

  • Page 31: Install The Chassis Cover

    Install the chassis cover To prevent access to the front bezel lock and the internal components, install the chassis cover. Install the chassis cover Prerequisites 1. Verify that all internal cables are properly connected and are secured in their respective cable ties. 2.
  • Page 32 Procedure 1. Slide the system board assembly into the chassis. 2. Press against the system board assembly until it clicks into place. 3. Install the system board assembly screw. 4. Connect the following system cables: • Power supply cable • Optical drive or SSD SATA cable (optional) •...

  • Page 33: Remove The System Board Assembly

    5. If removed, install the internal USB device. Remove the system board assembly To install or remove hardware components on the system board or to access the CMOS header, remove the system board assembly. Remove the system board assembly Prerequisites Before you perform this procedure, make sure that you have a T-15 Torx screwdriver available.
  • Page 34 4. Remove the system board assembly screw. 5. Place a finger in the notch on both sides of the system board assembly, and then pull out the assembly. Operations...

  • Page 35: Hardware Options Installation

    Hardware options installation This chapter provides detailed instructions on how to install hardware options. For more information on supported options, see the product QuickSpecs on the HPE ProLiant MicroServer Gen10 website https://www.hpe.com/servers/microserver To view the warranty for your server and supported options, see Warranty information. Introduction Install any hardware options before initializing the server.

  • Page 36: Installing An Lff Drive

    ◦ They must be either all hard drives or all solid-state drives. ◦ Drives should be the same capacity to provide the greatest storage space efficiency when drives are grouped together into the same drive array. • The system automatically sets all device numbers. Installing an LFF drive To add internal data storage to the server, install one or more LFF drives in the drive bays.

  • Page 37: Installing An Sff Drive

    2. Install the screws in the drive. 3. Slide the drive into the drive bay until it clicks into place. Installing an SFF drive To install SFF drives in the drive bays, install the SFF drive converter option. In general, SFF drives give greater power and space savings.
  • Page 38 Procedure Power down the server. Disconnect the power cord from the AC source, and then from the server. Disconnect all peripheral cables from the server. Remove the front bezel. Install the SFF drive. Install the front bezel. Connect all peripheral cables to the server. Connect the power cord to the server power jack, and then to the AC source.
  • Page 39 2. Follow the callout sequence in the following illustration to install the screws included in the converter kit on the bottom side of the converter tray. 3. Remove three drive screws from the front panel. Hardware options installation...
  • Page 40 4. Install the three screws removed from the front panel on the left and right sides of the converter tray. 5. Slide the drive into the drive bay until it clicks into place. Hardware options installation...

  • Page 41: Media Bay Options

    Media bay options Use the media bay to install one of these options: 7-mm slim-type SATA SSD • • 9.5 mm slim-type SATA optical drive Installing an SSD The media bay supports a 7-mm slim-type SATA solid-state drive option. SSDs have no moving parts. Information is stored in microchips.
  • Page 42 8. Connect the power cord to the server power jack, and then to the AC source. 9. Power up the server. Install the SSD Prerequisites Before you perform this procedure, make sure that you have the following items available: • T-10 Torx screwdriver •...
  • Page 43 3. Connect the SSD power cable: a. Open the cable ties. b. Connect the power cable to the SSD, and then to the power supply cable labeled P3. Hardware options installation...
  • Page 44 4. Connect the SSD SATA cable: a. Connect the SATA cable to the SSD. b. Route the SATA cable through the left side chassis opening down to the system board. c. Connect the SATA cable to the SATA port. 5. Bundle the extra length of the SSD power and SATA cables, and then secure them in the cable ties. Hardware options installation...

  • Page 45: Installing An Optical Drive

    Installing an optical drive The media bay supports a 9.5 mm slim-type SATA optical drive option. This option allows you to retrieve or store data on optical discs like CDs and DVDs. Procedure Power down the server. Disconnect the power cord from the AC source, and then from the server. Disconnect all peripheral cables from the server.
  • Page 46 ◦ Optical drive ◦ Optical drive bracket ◦ Phillips No. 2 screws (2, for securing the optical drive bracket) ◦ T-15 screw (1, for securing the optical drive) Procedure 1. Facing the server, press and hold the release latches on both sides of the optical drive blank, and then push the blank out of the media bay.
  • Page 47 5. Connect the optical drive SATA Y-cable: a. Connect the common end of the cable to the optical drive. b. Open the cable tie. Hardware options installation...
  • Page 48 c. Connect the power end of the SATA cable to the power supply cable labeled P3. d. Route the data end of the SATA Y-cable through the left side chassis opening down to the system board. e. Connect the data end of the cable to the SATA port. Hardware options installation...

  • Page 49: Memory Support

    f. Bundle the extra length of the SATA Y-cable and the power supply P3 cable, and then secure them in the cable tie. Memory support The server has two DIMM slots supporting standard PC4-2400T UDIMM for a maximum memory capacity of 32 GB. Maximum memory speed is determined by the processor: •...

  • Page 50: Dimm Handling Guidelines

    DIMM handling guidelines When handling a DIMM, observe the following guidelines: • Avoid electrostatic discharge. • Always hold DIMMs by the side edges only. • Avoid touching the connectors on the bottom of the DIMM. • Never wrap your fingers around a DIMM. •...

  • Page 51: Storage Controller Options

    Install the DIMM Procedure 1. Open the DIMM slot latches. 2. Align the notch on the bottom edge of the DIMM with the keyed surface of the DIMM slot, and then fully press the DIMM into the slot until the latches snap back into place. The DIMM slots are structured to ensure proper installation.

  • Page 52: Expansion Board Options

    • If the new Smart Array is the new boot device, install the device drivers. • If the new Smart Array is not the new boot device, go to the next step. 5. Ensure that users are logged off and that all tasks are completed on the server. CAUTION: In systems that use external data storage, be sure that the server is the first unit to be powered down and the last to be powered back up.

  • Page 53: Installing An Expansion Board

    • A storage controller board to enable advanced drive features. • A network adapter with advanced Ethernet connectivity features. Installing an expansion board Procedure Power down the server. Disconnect the power cord from the AC source, and then from the server. Disconnect all peripheral cables from the server.
  • Page 54 Install a low-profile bracket on the expansion board The number and location of the bracket screws will vary depending on the expansion board. The illustrations below are example images only. See the expansion board documentation for model-specific information. Procedure 1. Remove the full-height bracket from the expansion board. 2.
  • Page 55 Install the expansion board Prerequisites Before you perform this procedure, make sure that you have T-15 Torx screwdriver available. Procedure 1. Identify the expansion slot compatible with the expansion board, and then remove the blank opposite that slot. Retain the blank for future use. 2.

  • Page 56: Internal Usb Device Options

    Internal USB device options The server has an internal USB 2.0 port that you can use to install an internal USB flash media device for: • booting up from flash solution • data backup/redundancy Install an internal USB device Procedure 1.

  • Page 57: External Hpe Rdx Backup System Option

    6. Install the chassis cover. 7. Connect all peripheral cables to the server. 8. Connect the power cord to the server power jack, and then to the AC source. 9. Power up the server. For more information on any required setup or configuration procedure, see the USB device documentation. External HPE RDX Backup System option To install a simple, inexpensive, and reliable way to securely store your data backups, install an external HPE RDX Backup System.

  • Page 58: Trusted Platform Module (Tpm) - China Import Restrictions

    This server supports TPM 2.0. To prevent possible damage to the TPM or to the system board, the TPM cannot be removed from the board once it has been installed. Trusted Platform Module (TPM) — China Import Restrictions HPE Special Reminder: Before enabling TPM functionality on this system, you must ensure that your intended use of TPM complies with relevant local laws, regulations and policies, and approvals or licenses must be obtained if applicable.

  • Page 59: Installing The Trusted Platform Module Board

    Installing the Trusted Platform Module board Procedure Power down the server. Disconnect the power cord from the AC source, and then from the server Disconnect all peripheral cables from the server. Remove the chassis cover. Remove the system board assembly. Install the Trusted Platform Module board.

  • Page 60: Retaining The Recovery Key/Password

    Retaining the recovery key/password The recovery key/password is generated during BitLocker setup, and can be saved and printed after BitLocker is enabled. When using BitLocker, always retain the recovery key/password. The recovery key/password is required to enter Recovery Mode after BitLocker detects a possible compromise of system integrity. To help ensure maximum security, observe the guidelines listed in the following procedure list when retaining the recovery key/password.
  • Page 61 https://technet.microsoft.com/en-us/library/cc732774.aspx Hardware options installation...

  • Page 62: Cabling

    Cabling Cabling overview This section provides guidelines that help you make informed decisions about cabling the server and hardware options to optimize performance. CAUTION: When routing cables, always be sure that the cables are not in a position where they can be pinched or crimped.

  • Page 63: Ssd Cabling

    Item Description P2 power supply cable LFF/SFF drive power cable LFF/SFF drive SATA cable SSD cabling Cabling...

  • Page 64: Optical Drive Cabling

    Item Description SSD power cable P3 power supply cable SSD SATA cable Optical drive cabling Item Description Optical drive power cable Optical drive SATA cable P3 power supply cable Cabling...

  • Page 65: Fan Cabling

    Fan cabling Power supply cabling Item PSU cable marker Description System board power cable LFF/SFF drive power cable Optical drive/SSD power cable Cabling...

  • Page 66: Software And Configuration Utilities

    Software and configuration utilities Server mode Software or configuration utility Server mode Aptio Setup Utility Offline HPE Smart Storage Administrator Online and offline Marvell Storage Utility Online Marvell BIOS Utility Offline Product QuickSpecs For more information about product features, specifications, options, configurations, and compatibility, see the product QuickSpecs on the HPE ProLiant MicroServer Gen10 website: https://www.hpe.com/servers/microserver Aptio Setup Utility...

  • Page 67: Boot Option Control

    • When the system powers up for the first time • When the system is restored to the default settings Default configuration settings are sufficient for typical server operations. However, you can modify the configuration settings as needed. The system prompts you to access the Aptio Setup Utility every time the system is powered up. Boot option control This feature enables you: To choose the boot mode, select Advanced >...

  • Page 68: Clearing The Bios Configuration Settings

    To restore the user default configuration, select Save & Exit > Default Option > Restore User Default. Clearing the BIOS configuration settings The server BIOS configuration settings such as the system date and time, boot sequence, and hardware settings are stored in the CMOS.

  • Page 69: Embedded Uefi Shell

    Remove the jumper from its default position on pins 2 and 3, and place them on pins 1 and 2. After five seconds, remove the jumper from pins 1 and 2, and move it back to the default position on pins 2 and 3. Install the system board assembly.

  • Page 70: Secure Boot Configuration

    https://www.uefi.org/specifications Secure Boot configuration Secure Boot is implemented in the BIOS and does not require special hardware. Secure Boot ensures that each component launched during the boot process is digitally signed. Secure Boot also ensures that the signature is validated against a set of trusted certificates embedded in the UEFI BIOS.

  • Page 71: Marvell Storage Utility

    Procedure 1. Reboot the server. 2. On the POST drive information screen, press Ctrl+M. Marvell Storage Utility The Marvell Storage Utility (MSU) is a configuration and management utility for the embedded Marvell 88SE9230 PCIe to SATA 6Gb/s Controller. This Marvell storage controller supports hardware RAID 0, 1, and 10 levels. Use the MSU to create and manage RAID virtual disks and arrays using the drives connected to the embedded storage controller.

  • Page 72: Usb Support

    IMPORTANT: If you are updating an existing server in an offline environment, obtain the latest version of HPE SSA through Service Pack for ProLiant before performing configuration procedures. Using one of multiple methods, you can run HPE SSA before launching the host operating system. In offline mode, users can configure or maintain detected and supported devices, such as optional Smart Array controllers and integrated Smart Array controllers.
  • Page 73 Server downtime and time spent removing, returning, and ultimately replacing hardware might be avoided by first updating the firmware during the troubleshooting process. Many product issues that result in hardware replacement are preventable or correctable with a firmware update. Hewlett Packard Enterprise recommends checking for a firmware update before sending a part back to Hewlett Packard Enterprise for replacement.

  • Page 74: Drivers, Firmware, And Software Updates

    To access the One-Time Boot Menu option, when prompted, press the F11 key. Select UEFI: Built-in EFI Shell. To obtain the assigned file system volume for the USB key, enter the map -r command at the UEFI Shell prompt. Change to the file system that contains the System ROM Flash Binary file that you downloaded for your server. Enter one of the fsx file systems available, such as fs0 or fs1, and then press the Enter key.

  • Page 75: Proactive Notifications

    • Private or hybrid cloud computing • Big data and mobility requirements • Improving data center infrastructure • Better use of server, storage, and networking technology For more information, see the Hewlett Packard Enterprise website: https://www.hpe.com/services/consulting Proactive notifications 30 to 60 days in advance, Hewlett Packard Enterprise sends notifications to subscribed customers on upcoming: •...

  • Page 76: Troubleshooting

    Troubleshooting Troubleshooting resources Use the following resources for troubleshooting the system: • For information on resolving common problems, comprehensive courses of action for fault isolation and identification, issue resolution, and software maintenance, see the HPE ProLiant MicroServer Gen10 Troubleshooting Guide at: https://www.hpe.com/info/gen10-troubleshooting •...

  • Page 77: System Battery Replacement

    System battery replacement System battery information The server contains an internal lithium manganese dioxide, a vanadium pentoxide, or an alkaline battery that provides power to the real-time clock. If this battery is not properly handled, a risk of the fire and burns exists. To reduce the risk of personal injury: •...
  • Page 78 3. Slightly push the metal lab, and then install the new system battery in the socket. For more information about battery replacement or proper disposal, contact an authorized reseller or an authorized service provider. System battery replacement...

  • Page 79: Safety, Warranty, And Regulatory Information

    Safety, warranty, and regulatory information Regulatory information To view the regulatory information for your product, view the Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center: https://www.hpe.com/support/Safety-Compliance-EnterpriseProducts Additional regulatory information Hewlett Packard Enterprise is committed to providing our customers with information about the chemical substances in our products as needed to comply with legal requirements such as REACH (Regulation EC No 1907/2006 of the European Parliament and the Council).

  • Page 80: Turkey Rohs Material Content Declaration

    ЖШС «Хьюлетт-Паккард (К)», Қазақстан Республикасы, 050040, Алматы к., Бостандык ауданы, Әл-Фараби даңғ ылы, 77/7, Телефон/факс: +7 727 355 35 50 Manufacturing date: The manufacturing date is defined by the serial number. If you need help identifying the manufacturing date, contact tre@hpe.com. Turkey RoHS material content declaration Türkiye Cumhuriyeti: AEEE Yönetmeliğine Uygundur Ukraine RoHS material content declaration...

  • Page 81: Specifications

    Specifications Environmental specifications Specification Value Temperature range — Operating 10°C to 35°C (50°F to 95°F) Nonoperating -30°C to 60°C (-22°F to 140°F) Relative humidity (noncondensing) — Operating 10% to 90% 28°C (82.4°F) maximum web bulb temperature (noncondensing) across the operating temperature range of 0°C to 40°C.

  • Page 82: 200 W Power Supply Specifications

    200 W power supply specifications Specification Value Input requirements Rated input voltage 100 V AC to 240 V AC Rated input frequency 50 Hz to 60 Hz Rated input current 3.5 A at 100 V AC Rated input power 244 W at 115 V AC Efficiency >82% at full load Power supply output...

  • Page 83: Websites

    Websites General websites Hewlett Packard Enterprise Information Library https://www.hpe.com/info/EIL Single Point of Connectivity Knowledge (SPOCK) Storage compatibility matrix https://www.hpe.com/storage/spock Storage white papers and analyst reports https://www.hpe.com/storage/whitepapers For additional websites, see Support and other resources. Product websites HPE ProLiant MicroServer Gen10 product page https://www.hpe.com/servers/microserver HPE ProLiant MicroServer Gen10 support page https://www.hpe.com/support/microservergen10...

  • Page 84: Support And Other Resources

    Support and other resources Accessing Hewlett Packard Enterprise Support • For live assistance, go to the Contact Hewlett Packard Enterprise Worldwide website: https://www.hpe.com/info/assistance • To access documentation and support services, go to the Hewlett Packard Enterprise Support Center website: https://www.hpe.com/support/hpesc Information to collect •...

  • Page 85: Customer Self Repair

    Hewlett Packard Enterprise Support Center: Software downloads https://www.hpe.com/support/downloads My HPE Software Center https://www.hpe.com/software/hpesoftwarecenter • To subscribe to eNewsletters and alerts: https://www.hpe.com/support/e-updates • To view and update your entitlements, and to link your contracts and warranties with your profile, go to the Hewlett Packard Enterprise Support Center More Information on Access to Support Materials page: https://www.hpe.com/support/AccessToSupportMaterials IMPORTANT: Access to some updates might require product entitlement when accessed through the Hewlett...

  • Page 86: Acronyms And Abbreviations

    Acronyms and abbreviations 3DS TSV Three-dimensional stacked through-silicon via (integrated circuit packaging technology) application program interface column address strobe Customer Self Repair DDR4 double data rate-4 EurAsian Conformity file system exerciser HPE RSS HPE Rapid Setup Software HPE SSA HPE Smart Storage Administrator International Organization for Standardization Large form factor LRDIMM...
