OFFICE FURNITUR E
ASSEMBLY INSTRUCTIONS
MODEL: PL216
Before assembly, please remove all parts from the carton, verifying that you have the correct quantities, and read all the instructions.
IN THE CARTON:
Z:\Office Furniture\ECONOWISE\OLD\Performance_logo.jpg
1 2
Cam Lock
Klix Cam
14 Pcs
14 Pcs
A B
Side Panel LEFT
1
Line up Cam Lock,
turn clockwise.
H
IMPORTANT NOTE :
Place all wooden parts on a clean, smooth surface to prevent the parts from being scratched.
Check to be sure that you have all parts and hardware.
Remove all wrapping materials, including staples & packing straps before you start to assemble.
Do not tighten all screws/bolts until all completely assembled.
Keep all hardware parts out of reach of children.
REV. 1
Last Updated: 6/2022

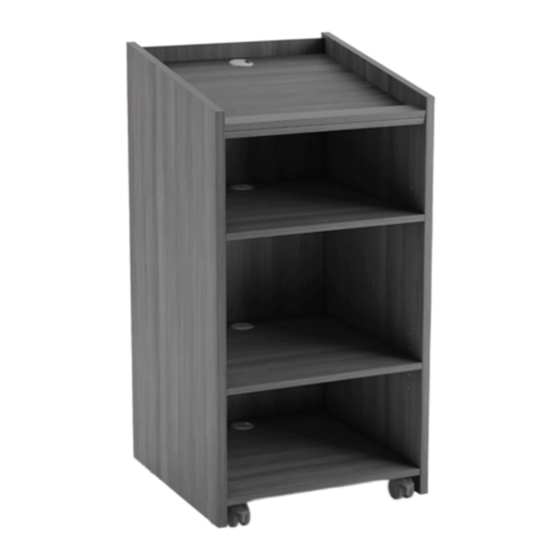

ASSEMBLY INSTRUCTION FOR PL BASIC LECTERN
3 4 5
Housing
Adjustable
Screw
Cap (Short)
#3.5 x 32mm Glide
14 Pcs 3 Pcs
6 Pcs
C D
Side Panel RIGHT Back Panel
KLIX CAM INSTRUCTIONS
2
Insert the cam with the arrow
pointing towards the hole in the
edge.
G
A
B
E
F
D
OPTION 1
HARDWARE
6 7 8
M4 x 65
Shelf Support Shelf Support
Allen-Key
Pin Small
1 Pc
6 Pcs
COMPONENTS
E F
Bottom Panel Fixed Shelf Panel Adjust Shelf Panel
3
Insert the Cam Lock into Klix
Cam. Turn Klix Cam to lock.
H
ASSEMBLY INSTRUCTIONS
MODEL NO. PL216
9 10 11
Castor Without Castor With
Pin Big Stoper Stoper
2 Pcs
2 Pcs 2 Pcs
G H
Top Shelf Panel Front Rail
HINGES INSTRUCTIONS
DETAIL x-x
BACK VIEW
ADJUST THIS SCREW FOR DOOR ALIGNMENT
AFTER ASSEMBLY THE HINGES.
C
G
A
B
E
F
D
OPTION 2
PAGE 1 OF 2
OFFICESOURCE.COM
Screw
#3.5 x 16mm
16 Pcs
1 of 2.
PL 216_AI
