Summary of Contents for Chauvet DJ COREpar UV120 ILS
- Page 1 User Manual...
-
Page 2: Table Of Contents
IRC-6 Infrared Remote Control ..............IRC-6 Operation ......................11 Master/Slave Mode ..................Master/Slave Mode (D-Fi USB)..............ILS Mode....................... 5. Maintenance................Product Maintenance ..................6. Technical Specifications ............Contact Us ..................Warranty & Returns..................COREpar UV120 ILS User Manual Rev. 1... -
Page 3: Before You Begin
Electronically published by Chauvet in the United States of America. CHAUVET, the Chauvet logo, and COREpar UV120 ILS are registered trademarks or trademarks of Chauvet & Sons LLC. (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. -
Page 4: Safety Notes
Expose to corrosive environmental conditions such as temperature, humidity, salinity, pressure, radiation, or shock. ♦ Set this product on a flammable surface. Keep this User Manual for future use. Page 3 of 15 COREpar UV120 ILS User Manual Rev. 1... -
Page 5: Introduction

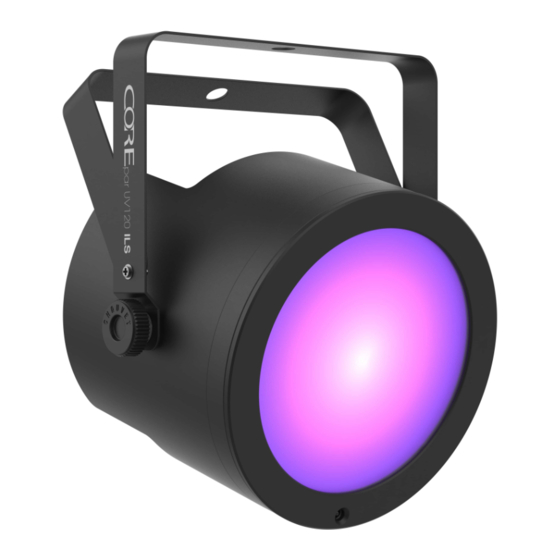

Product Overview Mounting bracket Safety loop 3-pin DMX out Display screen Power out Menu buttons Bracket adjustment knob (2x) D-Fi USB Port Fuse holder Power in 3-pin DMX in COREpar UV120 ILS User Manual Rev. 1 Page 4 of 15... -
Page 6: Product Dimensions
Introduction Product Dimensions 9 in 228 mm 8.9 in 225 mm 7.4 in 185 mm Page 5 of 15 COREpar UV120 ILS User Manual Rev. 1... -
Page 7: Setup
Additional COREpar UV120 ILS products It is possible to power link up to 5 COREpar UV120 ILS products on 120 VAC or up to 9 COREpar UV120 ILS products on 230 VAC. The power-linking diagram corresponds to the North American version of the product ONLY! If using the product in other markets, consult with the local Chauvet distributor, as power-linking connectors and requirements may differ by country or region. -
Page 8: Mounting
Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The COREpar UV120 ILS may be mounted in any position; however, make sure adequate ventilation is provided around the product. Rigging • Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 9: Operation
Choosing a starting address that is too high could restrict the access to some of the product’s channels. The COREpar UV120 ILS uses up to 5 DMX channels in a 5Ch DMX mode, which defines the highest configurable address to 508. -
Page 10: D-Fi Usb Connectivity
Operation D-Fi USB Connectivity The COREpar UV120 ILS is able to become a D-Fi wireless receiver/transmitter with the use of the D-Fi USB from Chauvet DJ. Simply set the product's DMX Personality and DMX Address, set the DIP switch D- Fi receiving/transmitting channel, then plug it into the D-Fi USB port. -
Page 11: Dmx Values
Press <ENTER>. The product will return to the last selected mode. Sound-Active Programs To run the COREpar UV120 ILS with a sound-active program, follow the instructions below. 1. Press <MENU> repeatedly until Snd shows on the display. 2. Use <UP> or <DOWN> to set the Sound-Active program, from Snd1 to Snd2. -
Page 12: Dimmer Curve
1. Press <MENU> repeatedly until Temp shows on the display. 2. Press <ENTER>. IRC-6 Infrared Remote Control The COREpar UV120 ILS can be operated with the CHAUVET IRC-6. To enable IR wireless control, follow the instructions below. 1. Press <MENU> repeatedly until SEt shows on the display. -
Page 13: Master/Slave Mode
Master/Slave Mode (D-Fi USB) The D-Fi USB allows a single COREpar UV120 ILS product (the “master”) to control the actions of one or more COREpar UV120 ILS products (the “slaves”) without the need of a DMX controller or DMX cables. -
Page 14: Maintenance
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 13 of 15 COREpar UV120 ILS User Manual Rev. 1... -
Page 15: Technical Specifications
Maximum External Temperature Cooling System 104 °F (40 °C) Convection I/O Connector Channel Range 3-pin XLR 1 or 5 Ordering Product Name Item Code UPC Number COREpar UV120 ILS 10031885 781462222338 Page 14 of 15 COREpar UV120 ILS User Manual Rev. 1... -
Page 16: Contact Us
For warranty registration and complete terms and conditions, please visit the Chauvet website. For customers in the United States and Mexico: www.chauvetlighting.com/warranty-registration. For customers in the United Kingdom, Republic of Ireland, Belgium, the Netherlands, Luxembourg, France, and Germany: www.chauvetlighting.eu/warranty-registration. Page 15 of 15 COREpar UV120 ILS User Manual Rev. 1...
