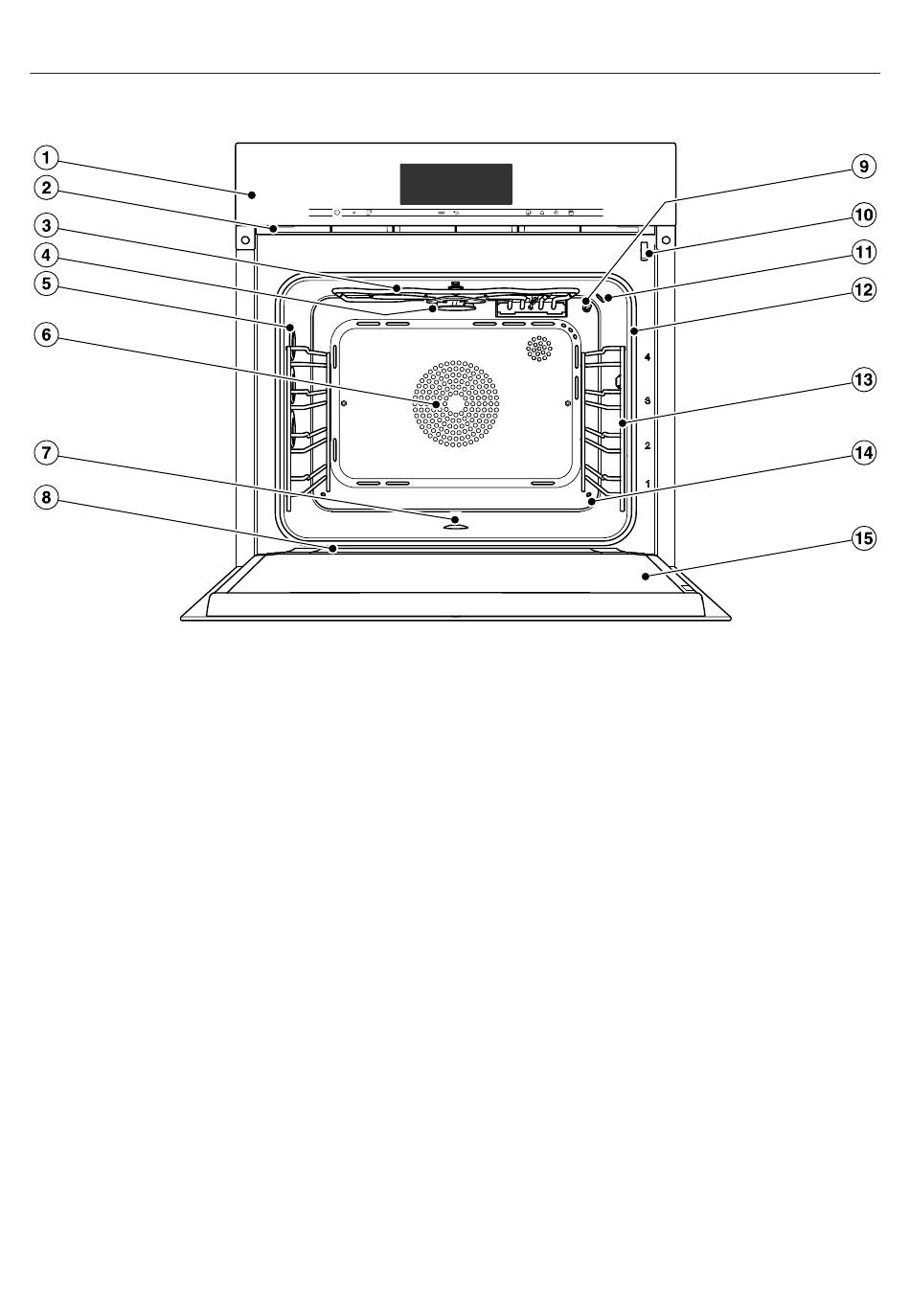

Guide to the appliance
Combination steam oven
a Control elements
b Ventilation outlet
c Top heat/grill element with wireless food probe antenna
d Distribution wheel for HydroClean cleaning
e Oven interior lighting
f Air inlet for the fan with ring heating element behind it
g Oven compartment floor with bottom heater element and floor filter underneath
it
h Drip channel
i Temperature sensor
j Door lock
k Moisture sensor
l Door seal
m Side runners with 4 shelf levels
n Steam inlet
o Door
18
