The Command Access ARLP88-KIT is a field-installable solenoid latch-pullback
B.

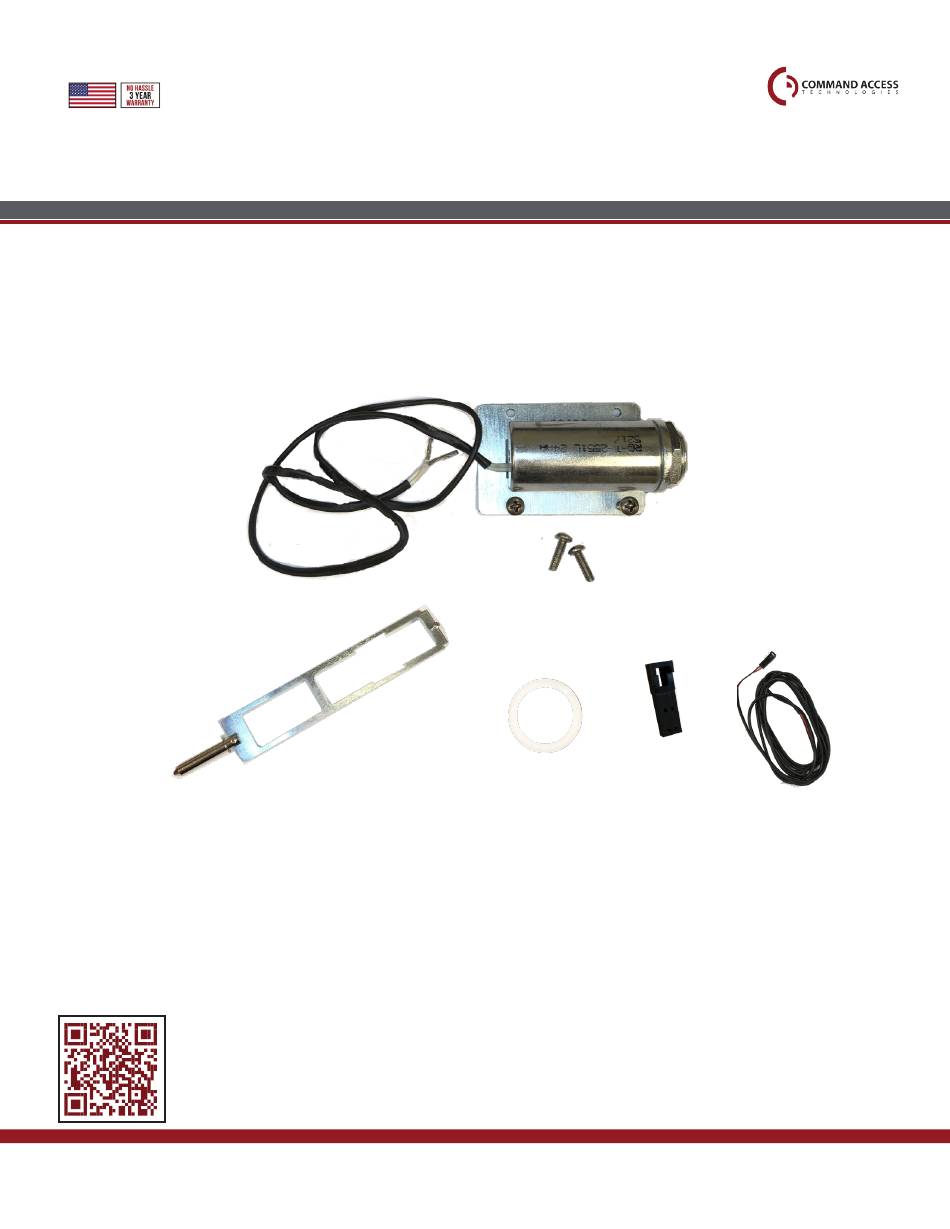

KIT IN CL U D ES
1- Solenoid Mount w/ 4
A.
Screws
1- Plunger Bracket
B.
1- Silcon Washer
C.
D. 1 - Power Connector
1- 8' Lead
E.
I
V
nstall
Ideo
U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2
ARLP88-KIT
INSERT Instructions
kit for the Adams Rite 8800 series devices.
A.
|
C.
D.
T O O L S R EQ U I R ED
#2 Phillips head screwdriver
SP E C I F I C AT I O N S
• Input Voltage: 24VDC +/- 10%
• Wire gauge: Minimum 18 gauge
• Direct wire run - no relays or access
control units in-between power
supply & module
E.
# 2 0 4 3 1 _ A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARLP88-KIT and is the answer not in the manual?

Questions and answers

Related Manuals for Command access ARLP88-KIT

Summary of Contents for Command access ARLP88-KIT

  • Page 1 ARLP88-KIT INSERT Instructions The Command Access ARLP88-KIT is a field-installable solenoid latch-pullback kit for the Adams Rite 8800 series devices. KIT IN CL U D ES T O O L S R EQ U I R ED 1- Solenoid Mount w/ 4...
  • Page 2 Legend Standard Placement ecommended oweR uPPlieS All Command Access exit devices & field installable kits have been thoroughly cycle tested with Command Access power supplies at our factory. For more information click here or go to our website U S c u s t o m e r s u p p o r t 1 - 8 8 8 - 6 2 2 - 2 3 7 7 | w w w . c o m m a n d a c c e s s . c o m | C A c u s t o m e r s u p p o r t 1 - 8 5 5 - 8 2 3 - 3 0 0 2...
  • Page 3 Remove Push Pad from device. Start with the front of the pluger bracket & slide wings into the exsisting grooves in the baserail. WING WING Slide plunger bracketin the middle groove back Drop plunger bracket over the front activitaing arm. towards the front activating arm.
  • Page 4 Behind plunger bracket, install solenoid mount by Press down on the solenoid mount to pop in the oth- sliding one side into the middle groove. er side of the solenoid mount into the middle groove. Add Silicon washer to the plunger. Move solenoid mount up towards plunger &...
  • Page 5 While holding solenoid in place, tighten all (4) screws Make sure to route power wires under back to secure mount to baserail. activating arm. Add power connector to power wires, push them Plug into power & test. After confirming unit works into the connector make sure the tabs on the wire properly.
