Performance verification procedure
8. Click the Setup button and verify that the system is in the correct setup to run your connected add-in card scans. If needed, reboot
the TMT4 to AIC setup. A Reboot button should appear if this is needed.
9. Set the Test Type to Quick Scan.
10. Set the Generation to Gen3.
11. Click the Run Scan button.

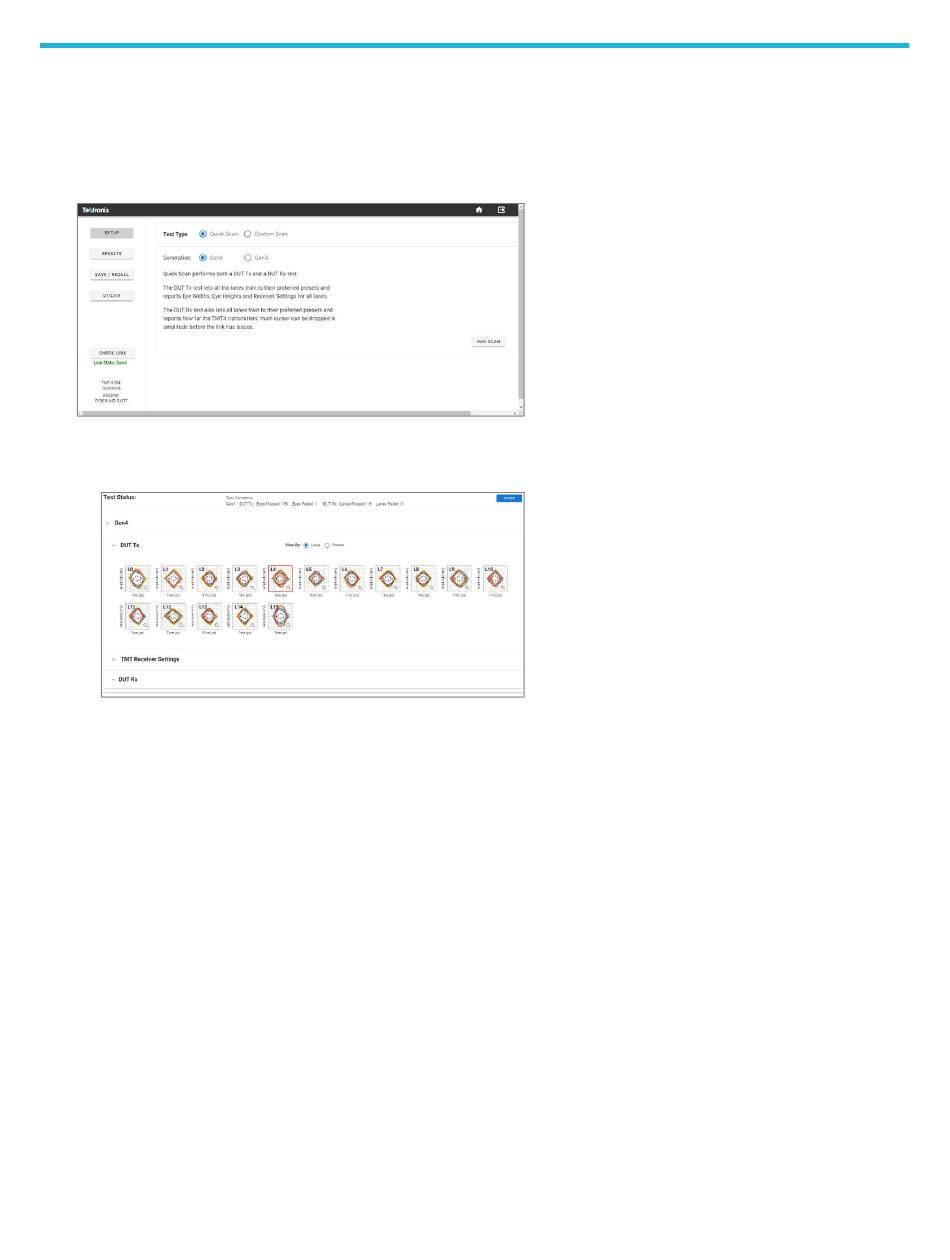

12. Once the test begins, the Results Test Status screen will automatically be displayed. Verify you can see the following:
a. Eye diagrams for all 16 lanes. If there are any fewer than 16 lanes, that is considered a failure.
b. Click on the TMT Receiver Settings expandable menu to view the results table. The table shows the preset each lane is trained
to and the expected test range based on the negotiated preset. If any errors are found, they will show in the table as red text.
